Non-dimmable LED Driver

Slim class 2 non waterproof 12v 60w led power supply

Ultra thin constant voltage non waterproof led power supply 12v 60w which the dimension is 300*32*20mm.
  • item no.:

    SMT-012-060VWSP
  • product orgin:

    CHINA
  • brand:

    SMARTS
  • shipping port:

    XIAMEN
  • payment:

    EXW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc
  • Output Current:

    5amp
  • Working Mode:

    CV
  • Certification:

    UL,CE, ROHS
  • Warranty:

    7
inquiry now
product details

Slim class 2 non waterproof 12v 60w led power supply


SMARTS SMT-012-060VWSP is designed as ultra thin constant voltage led driver which is high efficiency 86% and hjgh PF 0.99, easy installation makes it the perfect choice for under cabinet lights, tape lights and various LED fixtures installations.



  Features


  • Output constant voltage
  • Input voltage range 100-277VAC
  • UL, cUL listed, Class 2, Class P approval
  • Built-in PFC function / Efficiency > 84% / PF> 0.95
  • Protections:short circuit/over voltage/over heat
  • IP20 design for indoor dry environment installations
  • Cooling by free air convection
  • PWM output, does not change the color index
  • Full protection aluminum housing, for dry, damp, wet location
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 7 years warranty


  Parameter


model

SMT-012-060VWSP

SMT-024-060VWSP

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

5.0Amp

2.5Amp



Rated power

60W

60W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ; PF≧0.98/230V ; PF≧0.97/277V



Full Load EfficiencyTyp.

82%@120VAC ;84%@230VA ; 84%@ 277VAC

84%@120VAC;86%@230VAC; 86%@ 277VAC



AC CurrentTyp.

0.75A/100VAC  /  0.2A/277VAC



Inrush CurrentTyp.

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC



Leakage current

<0.5mA/110VAC; 0.2mA/277VAC

  Label

non-dimmable led power supply

Slim class 2 non waterproof 12v 60w led power supply



Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver

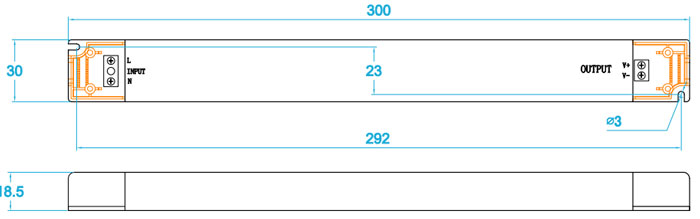

  Mechanical Specification


slim power supply


Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Output: Red isPossitive side +,Black isNegitive side -

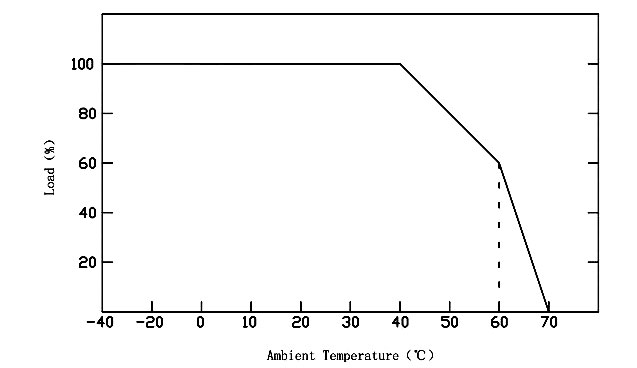

  Derating Curve


slim power supply


Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
