Non-dimmable LED Driver

slim size 12v 60w triac&0 10v dimmable constant voltage led light strip transformer driver 24v

Long slim size 60W led driver triac 0-10v dimming operating mode Constant voltage, input voltage 100-277vac, built-in PFC function, power factor >0.95, able to achieve smooth flicker-free dimming between 0.1% and 100%
  • item no.:

    SMT-012-060VTDSP
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC/24VDC
  • Working Mode:

    constant voltage
  • Certification:

    UL ROHS
  • Warranty:

    7 years
inquiry now
product details

slim size 12v 60w triac&0 10v  dimmable constant voltage led light strip transformer driver 24v

This ip20 constant voltage led driver 60W with plastic shell is compatible with PWM and reduced voltage output, and the dimming range is 100%-0.01% ultra-deep amplitude. It has passed UL certification, conforms to global safety lighting laws, and is suitable for residential shopping mall lighting projects in North America


  Specification


Model Number SMT-012-060VTDSP SMT-024-060VTDSP
OUTPUT
Rated Power 60W 60W
Rated Voltage 12V 24V
Rated Current 5A 2.5A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 110-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.99 @120VAC  0.98 @277VAC  Full load
Total Harmonic Distortion THD< 10%@120VC/ THD< 15%@120VC 277VAC;
Efficiency(Typ.) 84% @ 120VAC  86% @277VAC 83% @ 120VAC  85% @277VAC
AC Current(Typ.) 0.9A
Inrush Current(Typ.) 27A
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load ≤120% Hiccup mode, recovers automatically after fault condition is removed.
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 304x30x18.5mm (L*W*H)   N.W:0.25kg
Packing 50pcs/CTN  G.W:12.5KG  SIZE: 330*270*130mm
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

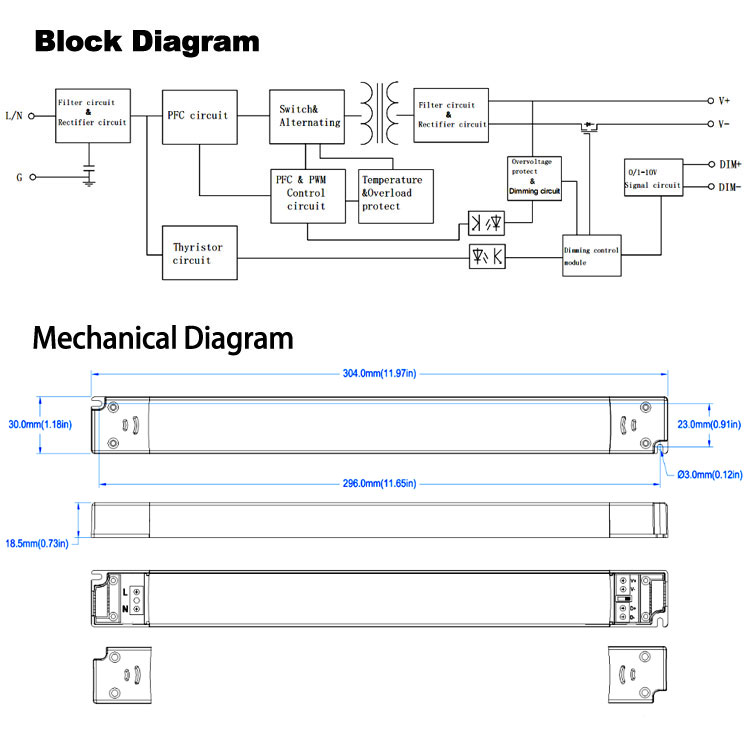

  Mechanical Specification


  Dimming operation



  Related Products

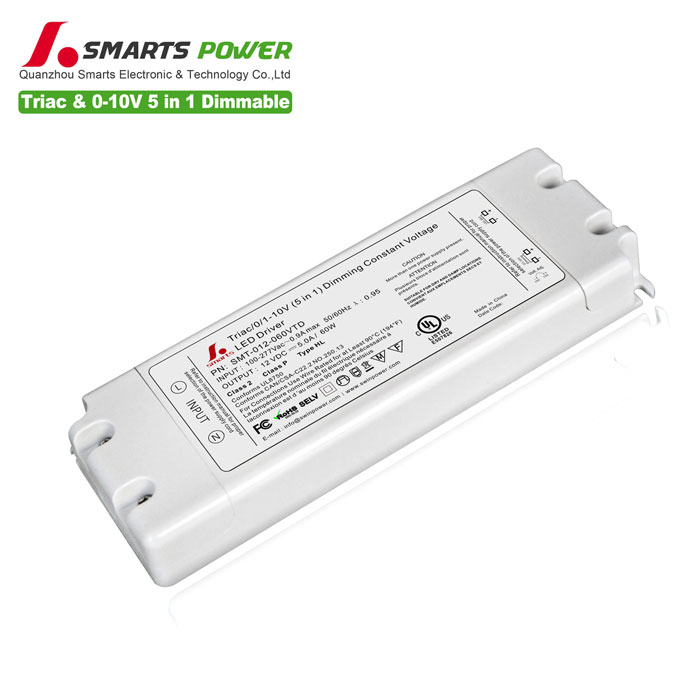

Plastic case led driver 60W 5 in 1 dimming constant pressure driver, UL certified, suitable for indoor installation in dry places
