Non-dimmable LED Driver

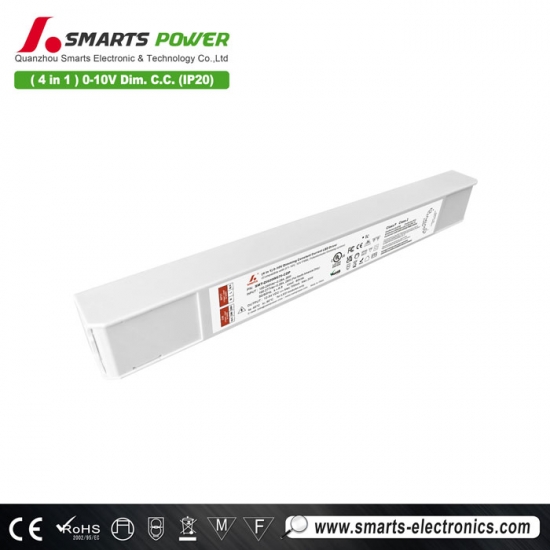

slim size 20W constant current 0 10v dimmable led driver led strip lights

Smartspower's new ultra-thin 0 10v dimmable led driver has a constant current working mode, built-in active PFC function, and working efficiency up to 81%. It has built-in short circuit/over temperature/overload protection functions,7 years warranty
  • item no.:

    SMT-DI020W070-CDP-T
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12-54V
  • Output Current:

    70-700mA
  • Working Mode:

    Constant Current
  • Certification:

    UL,CE, FCC, ROHS
  • Warranty:

    7 years
inquiry now
product details

slim size 20W constant current 0 10v dimmable led driver led strip lights

This constant current 20W 0 10V dimmable led power supply has an ultra-thin size design. It is surrounded by a plastic shell and has good heat dissipation. The dimming range is between 0.3~100% with ultra-deep dimming. It is suitable for indoor small space lighting project installation and use


  Specification

Model SMT-DI020W070-CDP-T
Certificate UL/FCC/CE /ClassP/Class2/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA
Output On-load voltage range 12-54V
Output Current Setting(loset) Range 70-700mA
Output Current Setting Range with Constant Power 370-700mA
Rated power 20W(Max)
No Load Output Voltage 60V(Max)
Current Tolerance 700mA±5%
Total Output Current Ripple 20mA(Imax)
Startup Overshoot Current 9%(Max)
Line Regulation <0.5%
Load Regulation <0.5%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Standby Power ≤0.5W
Power Factor (Typ.) @ full load 0.99@120VAC    0.97@230VAC    0.93@277VAC
THD(Typ. ) @ full load <10%@100-277VAC
Efficiency(Typ.) @ full load 82%@120VAC   82%@230VAC   82%@277VAC
AC Current (Max.) <0.3A@120VAC   <0.22A@230VAC   <0.15A@277VAC
Standby power ≤0.5W
Inrush Current (Typ.) 17.5A, 50%, 29.1us @120VAC;   33.6A, 50% 864us @277VAC   40.4A, 50% 26us@277VAC
Leakage current <0.5mA
Protection Short Circuit Constant current mode, recovers automatically after fault condition is removed
Over Load ≥110% Constant current mode,recovers automatically after fault condition is removed
Over temperature Ambient temperature over 50℃±5℃ to reduce output to 50%;
The ambient temperature drops to 40℃ ±5℃and automatically recovers.
Ambient temperature over 60℃±5℃ to reduce output to 0%;
The ambient temperature drops to 40℃ ±5℃and automatically recovers.
Environment Working TEMP. -40~+45℃ (see below derating curve)
Working Humidity 20 - 95%RH  non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95% RH non-condensing
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC Safety standards UL8750;EN61347-1
Withstand voltage I/P-O/P:1.88KVAC(MAX 3.75KVAC)
Isolation resistance I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH
EMC Immunity IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547
EMC Emission EN55015 EN61000-3-2,3 FCC Part15 Subpart B;ANSI C63.4:2014
Surge Immunity Test  AC Power Line:Differential Mode 2 kV,
Others Net Weight 215g
Dimension 251.9*31*22.5mm(L*W*H)
Packing 290*225*215mm    50pcs /CTN
Notes 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
2. Default states:
Output Current Setting is Maximum value.
The dimming curve is a logarithmic curve.
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation agai
4. To extend the driver's using life , please reduce the loading at lower input voltage .
5. Dimming electrical circuit:
Notice: This control circuit is isolated,but didn't evaluate Class 2.
Please refer to the installation manual to connect the dimmer.
CAUTlON: More than one power supply present.
ATTENTION: presence de plusieurs alimentations électriques.
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

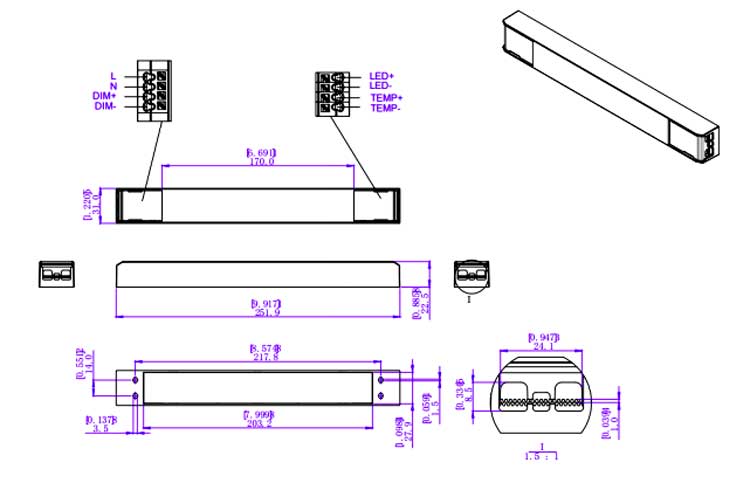

  Mechanical Specification

MCB recommendation

When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of  LED Driver
C type(breaking
capacity:6KA)
10A 20
13A 26
16A 32
20A 40
25A 50
When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of  LED Driver
C type(breaking
capacity:6KA)
10A 27
13A 35
16A 44
20A 55
25A 69
When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows:
MCB Type Level The number of  LED Driver
C type(breaking
capacity:6KA)
10A 40
13A 52
16A 64
20A 81
25A 91


dimmable driver for led strip lights

Globle wire gauge
LD20

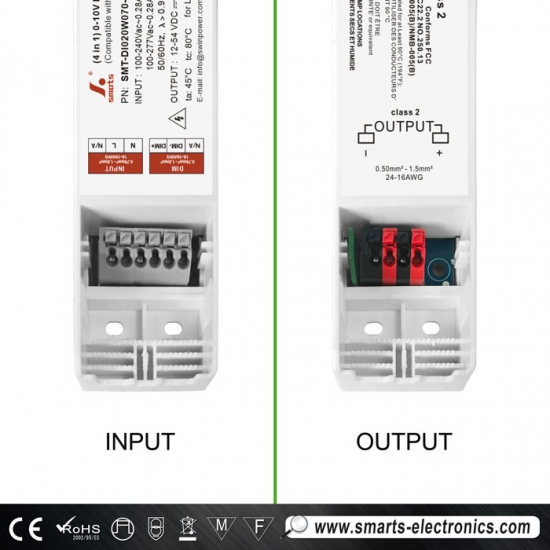

Input wire and Dimming wire Gray terminals 6P (0.2mm2-1.5mm2/24-16AWG)
Output wire&
External temperature wire
Red/Black terminals 4P (0.2mm2-1.5mm2/24-16AWG)
Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.


  Dimming Operation

dimmable driver for led strip lights


Note

1. The model name SMT-DI020W070-CDP means that there is no lamp temperature detection, so there is no     corresponding wiring for the LED driver.

2. The model name SMT-DI020W070-CDP-T means that there is lamp temperature detection.

NFC function





ProNFC APP

NFC Handheld devices

IOS Download

Android Download

Adjust output current slightly by NFC

The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write

device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.

Set Address easily by NFC

The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write

device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
