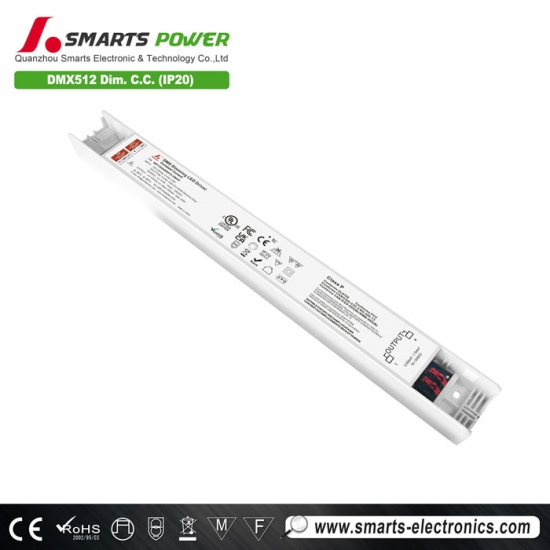

slim size 40w 24v-93v dimming constant current led driver power supply for indoor lighting
Ultra-thin size 40W DMX512 intelligent dimmable led driver, input voltage range 100-277vac, dimming range between 0.3~100% ultra-deep dimming, the dimming process is smooth and flicker-free, and the dimming performance is as good as LTechnology led driver.
Specification
| Model | SMT-DI040W070-DMXP-T | SMT-DI040W140-DMXP-T | |
| Certificate | UL/FCC/CE /ClassP/Class2/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA | ||
| Output | Rated current | 70mA-700mA | 140mA-1400mA |
| DC Voltage | 24V-93V | 12V-54V | |
| Rated power | 40Wmax | ||
| Voltage Tolerance | ±30mA | ||
| No-load voltage | 98Vmax | 60Vmax | |
| Line Regulation | <0.1% | ||
| Load Regulation | <0.1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor @ full load | ≥0.95 | ||
| THD(Typ.) @ full load | <10% | ||
| Efficiency @ full load | >85.5%@120VAC 60Hz >86.5%@230VAC 50HZ >86.5%@277VAC 60HZ | ||
| No load power (Max) | ≤1.5W | ||
| Standby power (max.) | <0.5W | ||
| AC Current (Max.) | <0.56A | ||
| Inrush Current (Typ.) | 28.8A, 256us@50%Ipeak@120V 55.2A, 130us@50%Ipeak@230V 66.5A, 259us@50%Ipeak@277V | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, restarts automatically after fault condition is removed | |
| Over load | Hiccup or Constant power mode, restarts automatically after fault condition is removed | ||
| Over temperature |
Ambient temp.Over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.Over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. |
||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 -90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.8KVAC (US) | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part 15 ,Subpart B; ANSI C63.4:2014 (US) | ||
| EMC Immunity | IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547(EU) | ||
| Power supply | Strobe test standard | IEEE 1789 Flicker free | |
| lightning surge | Line to line:2KV | ||
| Others | Net Weight | 0.32KG | |
| Dimension | 324.7*34.8*24.1mm (L*W*H) | ||
| Packing | 36*26*327 50pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life, please reduce the loading at lower input voltage . | |||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||
|
4. Dimming electrical circuit: Notice: This control circuit is isolated,but didn't evaluate Class 2. Please refer to the installation manual to connect the dimmer. CAUTlON: More than one power supply present. ATTENTION: presence de plusieurs alimentations électriques. |
|||
 |
 |
 |
 |

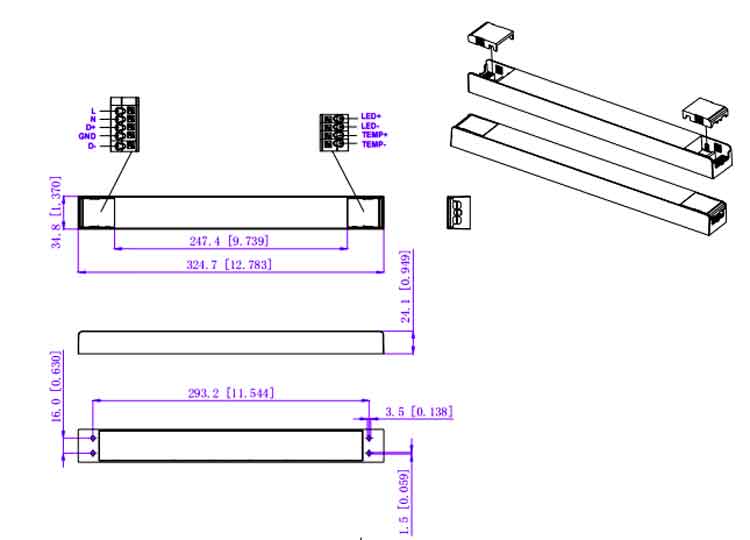

Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 17 |
| 13A | 23 | |
| 16A | 28 | |
| 20A | 35 | |
| 25A | 44 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 33 |
| 13A | 43 | |
| 16A | 53 | |
| 20A | 66 | |
| 25A | 83 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 40 |
| 13A | 52 | |
| 16A | 64 | |
| 20A | 80 | |
| 25A | 100 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50°C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.

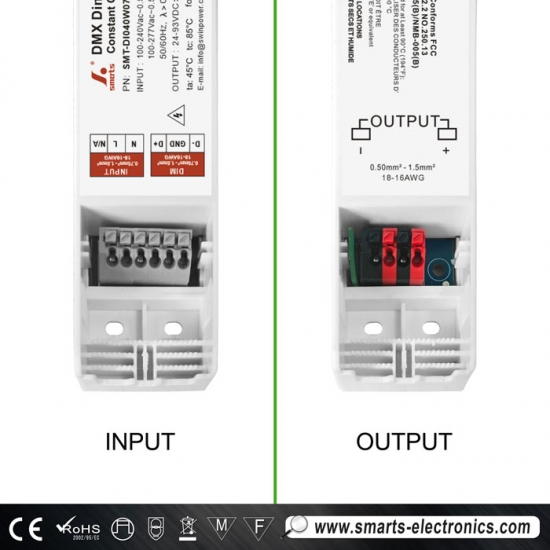

| Globle wire gauge | |
| LD30 | |
| Input wire and Dimming wire | Gray terminals 5P (0.2mm2-1.5mm2/24-16AWG) |
| Output wire and External temperature wire | Red/Black terminals 4P (0.2mm2-1.5mm2/24-16AWG) |
| Remarks:Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Operation
Note：
1. The model name SMT-DI020W070-DMXP means that there is no auxiliary power supply and temperature control, so there is no corresponding wiring for the LED driver.
2. The model name SMT-DI020W070-DMXP-T means that there is no auxiliary power supply but there is temperature control, so the LED driver has no auxiliary power wiring.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
