Non-dimmable LED Driver

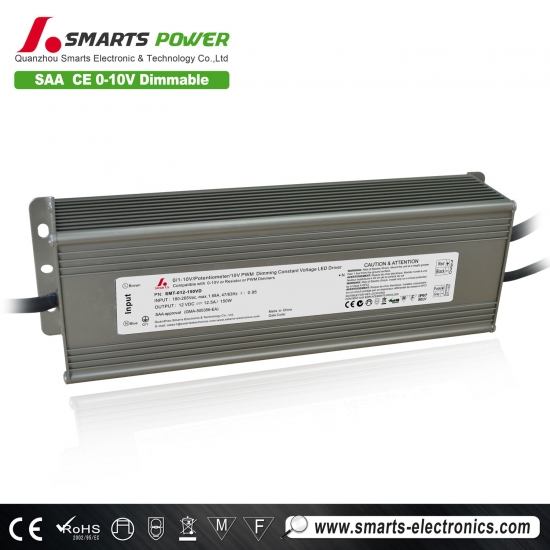

SMARTS POWER 220V AC 0-10V OR 1-10V PWM Dimmable LED Driver 12V 150W power supply For LED Light

SAA list 0-10v dimmable led driver are our new product,it is application with :indoor & outdoor  LED  illuminating  lights LED Neon,LED urban Decoration,LED Lighting Advertising,LED Display etc. Safety Protection Apparatus, Telecommunications, Networks,Vehicle Lights,Controller Panels, etc.

  • item no.:

    SMT-012-150VD
  • brand:

    SMARTS
  • Input Voltage:

    180-265VAC
  • Output Voltage:

    12v
  • Output Current:

    12.5A
  • Working Mode:

    0-10v dimming
  • Certification:

    SAA CE ROHS C-TICK
  • Warranty:

    7 years
inquiry now
product details

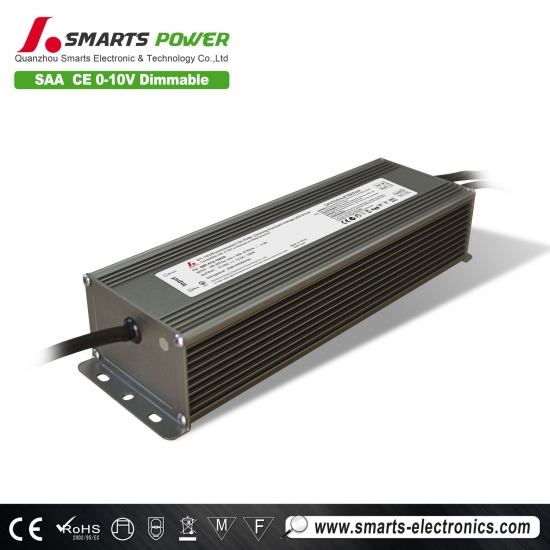

SMARTS POWER 220V AC 0-10V OR 1-10V PWM Dimmable LED Driver 12V 150W power supply For LED Light


 220V AC 0-10V OR 1-10V PWM Dimmable LED Driver 12V 150W power supply are SAA CE ROHS approval ,we give 7 years warranty.

  Description


Model

SMT-012-150VD

SMT-024-150VD

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V



Rated current

012.5A

0~6.25A



Rated power

150W

150W

Input

Voltage Range

180~265VAC



Frequency Range

5060HZ



Power Factor ( Typ.

PF0.80



Full Load EfficiencyTyp.

      >88%/110V

          >88% 220V



AC CurrentTyp.

      0.23A/110V

          0.11A/220V



Leakage current

0.7mA/110V, 220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition   is removed



Over voltage

280VAC



Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+50



Working Humidity

2095%RH,non-condensing



Storage TEM.,Humidity

-40+801095%RH



TEMP.coefficient

±0.03%/050



Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13



Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC



Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH



EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.8Kg



Size

256*78*47mmL*W*H



packing

414*308*174mm/50pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V,220VAC input , rated load

   and 25of ambient temperature.

2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

   terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

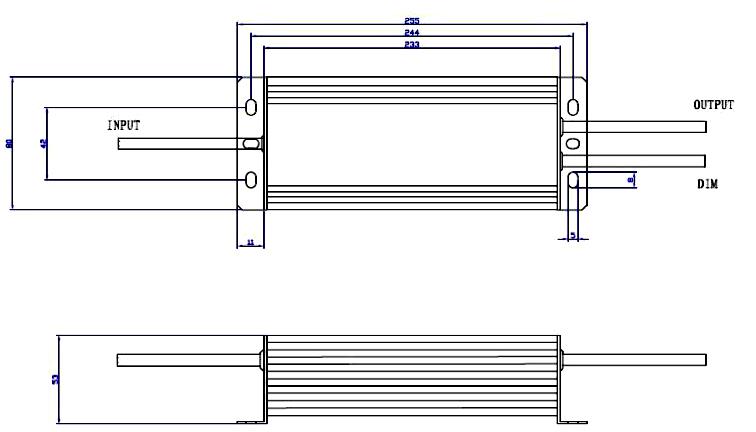

  Mechanical Specification

150w dimmable led driver
