Non-dimmable LED Driver

UL listed class 2 constant voltage led driver 48v 60w

This 60w ultra thin led driver has 12v 24v 36v 48v output constant voltage for selection.
  • item no.:

    SMT-048-060VWSP
  • lead time:

    7 working days for samples
  • product orgin:

    CHINA
  • brand:

    SMARTS
  • shipping port:

    XIAMEN
  • payment:

    EXW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    48vdc
  • Output Current:

    1.25a
  • Working Mode:

    constant voltage
  • Certification:

    UL CE
  • Warranty:

    7 years
inquiry now
product details

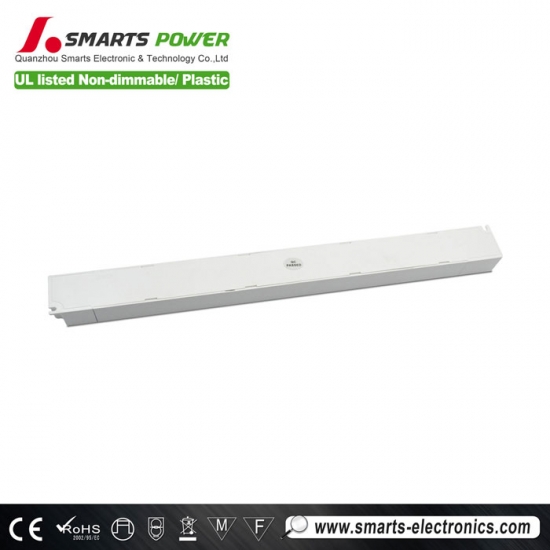

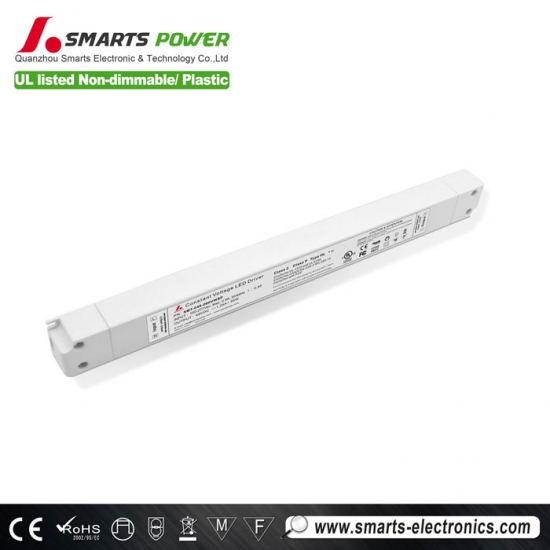

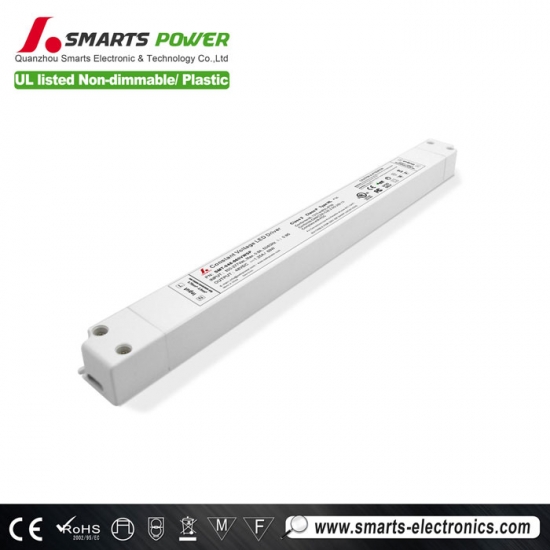

UL listed class 2 constant voltage led driver 48v 60w


The ultra slim constant voltage class 2 led driver from SMARTS offers UL listed. These drivers are IP20 design for indoor dry or damp environment installations. With universal input voltage ranging from 100 to 277VAC are designed for commercial, industrial and residential applications.


Features


  • Output constant voltage type
  • Input voltage range 100-277VAC

  • UL/ cUL listed, Class 2, Class P, CE, ROHS approval

  • Built-in PFC function / Efficiency > 83% / PF> 0.99

  • Protections:short circuit/over voltage/over heat

  • Full protection aluminum housing, for dry, damp, wet location

  • Suitable for LED lighting and moving sign applications

  • Compliance to worldwide safety regulations for lighting

  • 7 years warranty

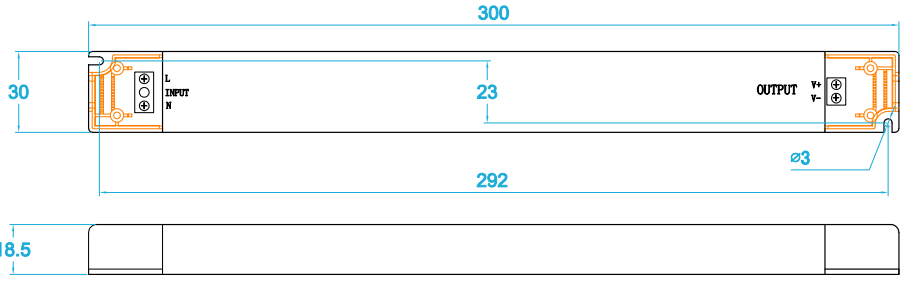

     Mechanical Specification




Driver specification



Input Voltage Range
100-277VAC
Input Frequency
47-63Hz
Input Current

0.75A/100VAC  /  0.2A/277VAC


Inrush Current(Typ.


7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC


Leakage current


<0.5mA/110VAC; ﹤0.2mA/277VAC


Efficiency
>83%
Power Factor
>0.99
Output Voltage
48vdc
Output Current
1.25a

Voltage Regulation


±0.5%


Load Regulation


±1%


Over Current Protection
Yes
Over Voltage Protection
Yes
Over Temperature Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes


D
