Non-dimmable LED Driver
Zigbee Dimming LED driver & App wireless control network connecting solution Jul. 10,2021

· Universal AC input: 100-265VAC

· Built-in active PFC function,  PF>0.92

· Efficiency > 86%

· Protections:Short circuit/Over current/Over loading

· Cooling by free air convection

· Fully isolated plastic case with terminals  IP40

· Class 2 power unit

· Zigbee; 0-10V, 10V PWM dimming (3 in 1)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

· 3 years warranty





Step 1: Download “Smart Life” app or “Tuya Smart” app

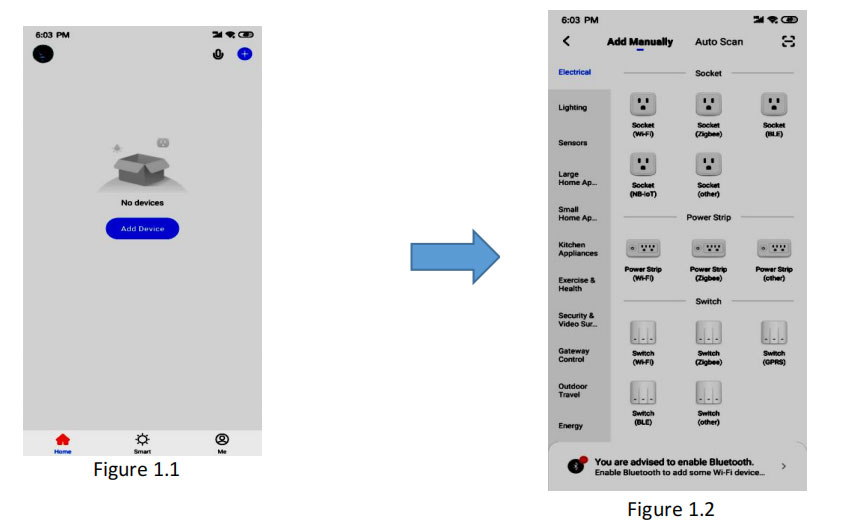

Step 2: After entering the app, register the account and click
“Add Device” button (please confirm the signal type of the routeris 2.4GHz WIFI to add the device).(See figure 1.1)
Step 3: Enter the Menu interface. (See figure 1.2).

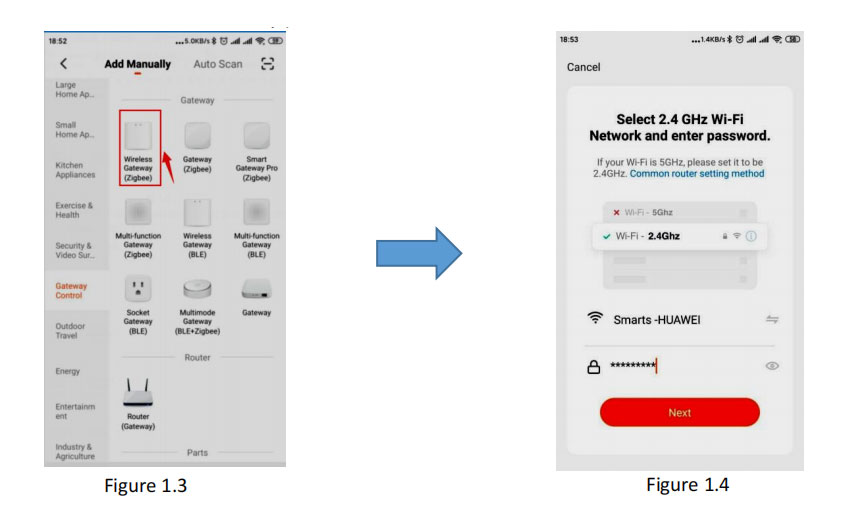

Step 4: clicking the option (Gateway control) on the left category bar,Then Click the button”Wireless Gateway (Zigbee)” (See figure 1.3)

Step 5: Select 2.4Ghz Wi-Fi Network and enter password.(See Figure 1.4)

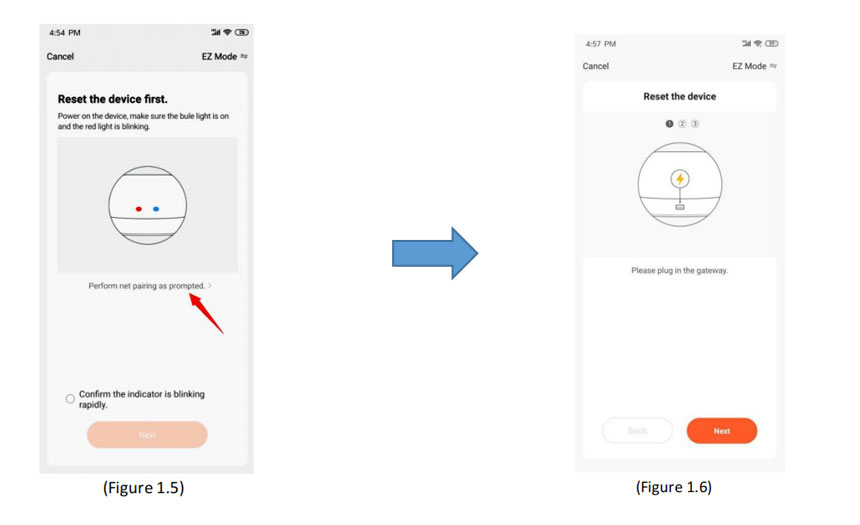

Step 6: Reset the Zigbee Wireless device first according to the reset(1) Power on the Zigbee gateway. (see figure 1.6)Instruction (see figure 1.5)

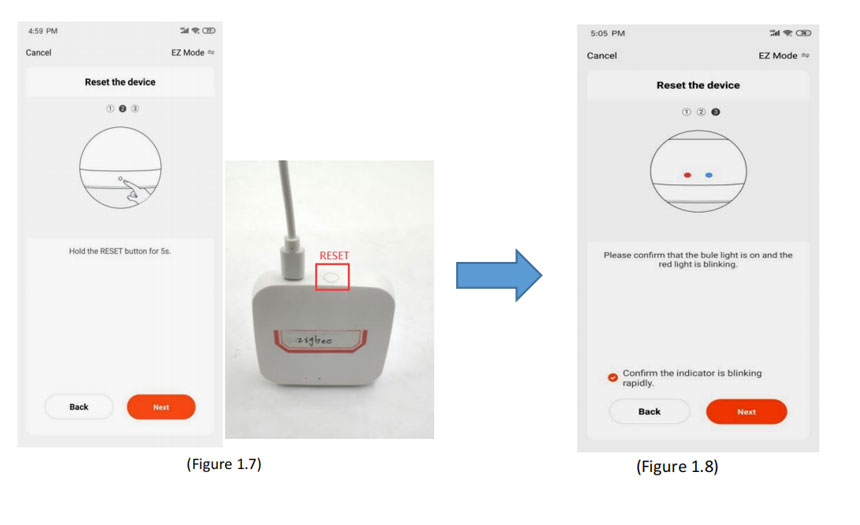

2) Press the “reset” key 5 second. (see Figure 1.7)

3) Pl. Confirm the “Red light” blinking quickly & “Blue light”always power on,then click “next” button to match the network.(see Figure 1.8)

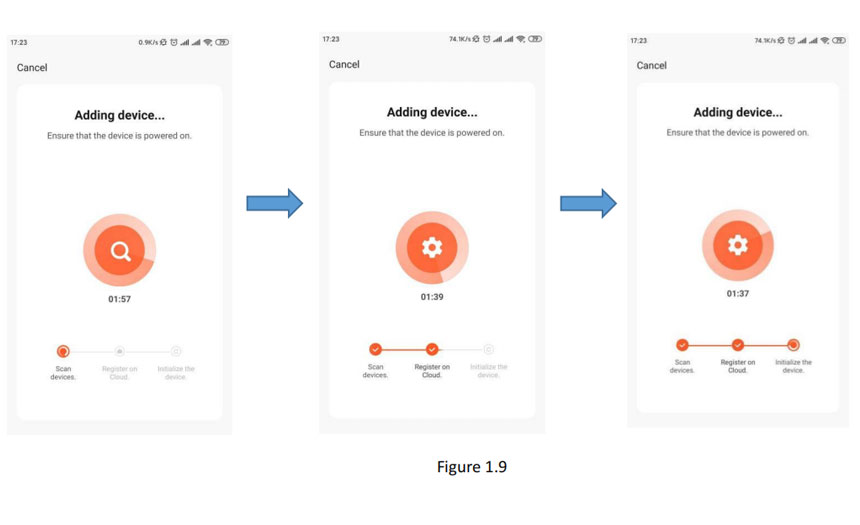

4)If the Zigbee device matched well with the “Gateway control”APP, it needs to go through 3 steps: Scan devices - Register on Cloud - Initialize the device. (See figure 1.9)

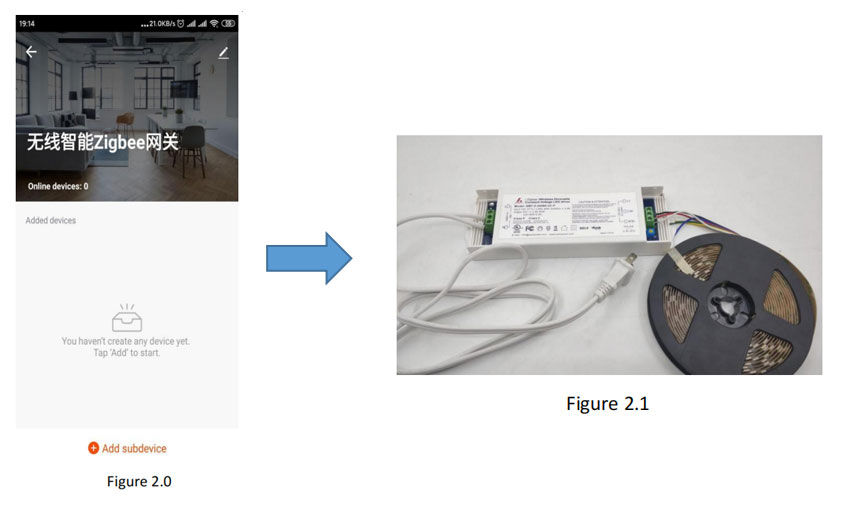

Step 7: Click”Done” to enter Wireless smart Zigbee gateway and Click “Add subdevice” to create device.(see Figure 2.0)


(1) Ensure the Zigbee dimmable power supply and the RGB
strip is well connected.(see Figure 2.1)

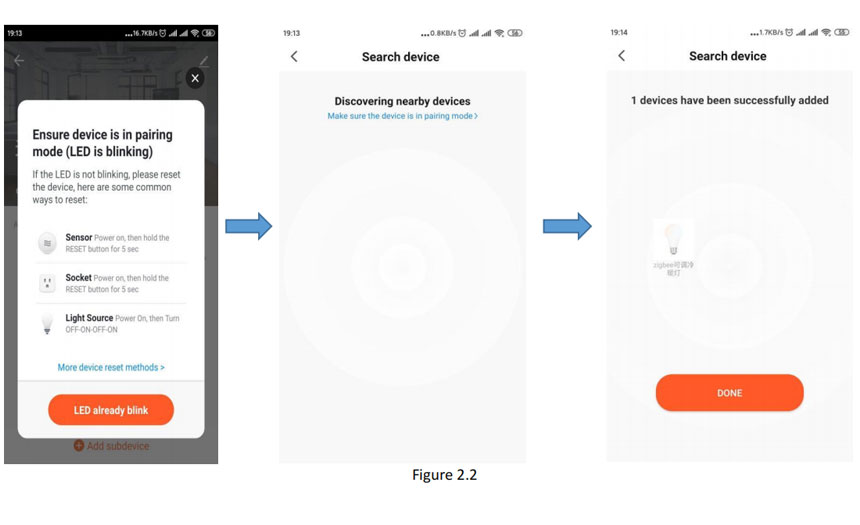

(2)Power ON/OFF the zigbee dimmable LED power supply 3 times, to Reset the power supply, when the RGB light is blinking quickly,click (LED already blink) botton to discover nearby zigbee gateway device.(See Figure 2.2)

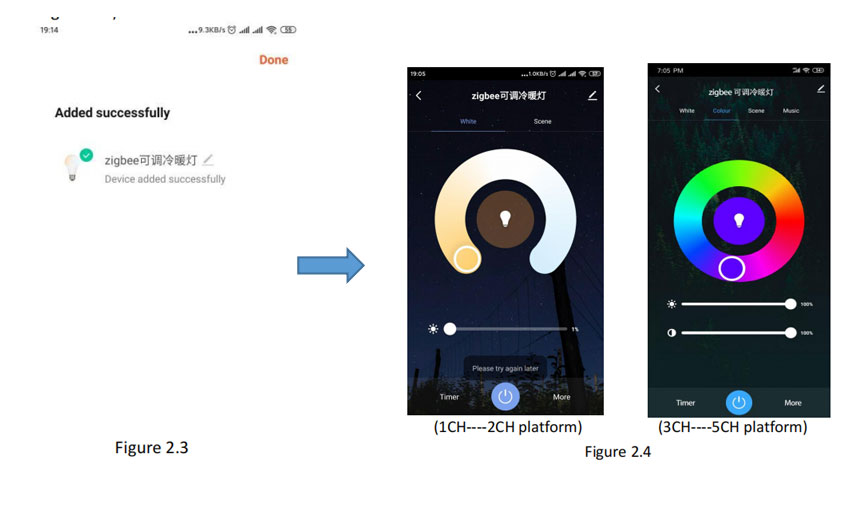

(3) When Added successfully, pl. Click “Done” on the right corner.(See figure 2.3)

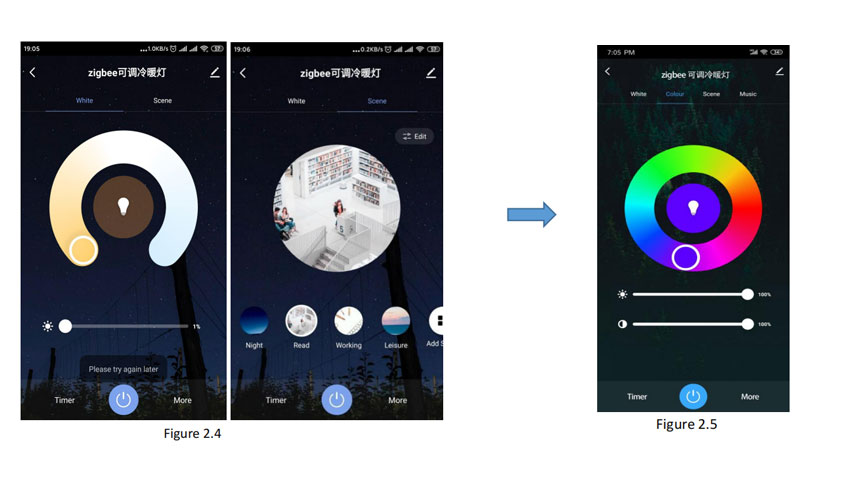

Step 8: set the RGB lights from the APP Platform.
(See figure 2.4)


Tip:when paired successfully, you can

remote control RGB lights.


Tip: APP platform will be changed by different color LED light you connected.


Step 9: (1)click “White” to control two different color, adjust the LED brightness from 0~100%, timer & switch ON/OFF the LED.or Click on the “scene” interface to select the lighting effects in different scenes or click “Edit” & add new scenes.

(2) If the Zigbee dimmable LED power can support multi-color controlling, Click the “colour” button to adjust colors. Clickon the “scene” to select the lighting effects; Click “Music”to set the lighting blinking as per the music rhythn.Switching ON/OFF the light directly by press the power button at the bottom.. (See Figure 2.5)

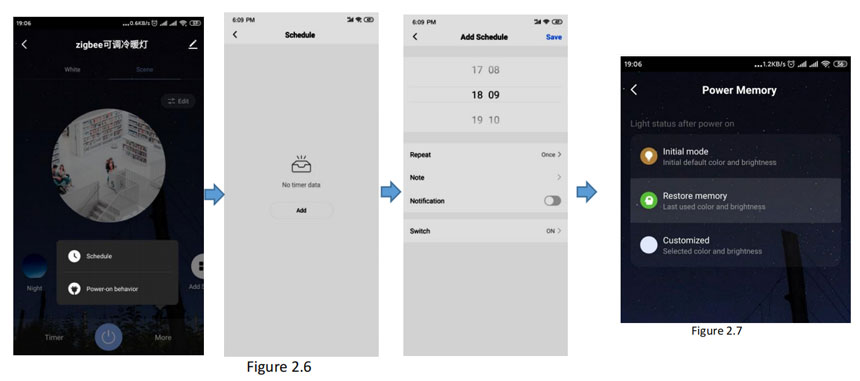

(3)Click “More” to select more different timer function setting:

3.1) Schedule (Add different timer data to set ON/OFF time)
(see Figure 2.6)
3.2) Power on behavior.(see Figure 2.7)
(3 different Light status after power on available)


How to set Zigbee dimming cotrolled by smarts speaker?

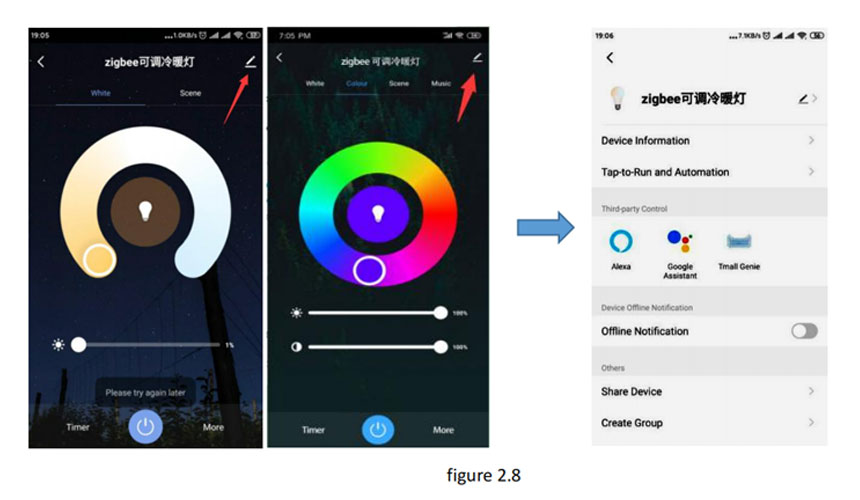

Step 1: Click the right up corner and enter the setting platform. (see figure 2.8)



Step 2:Select thire party control: Alexa, Google Assistant, Tmall Genie

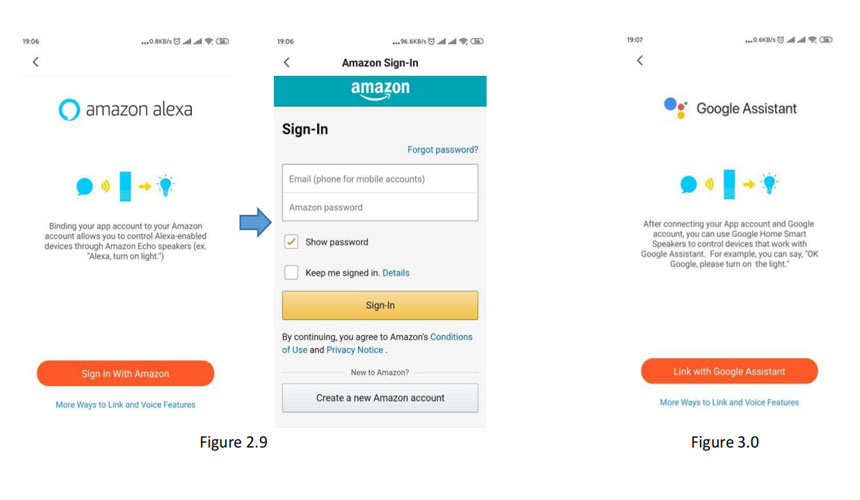

1) Amazon Alexa smart speaker setting: (see figure 2.9)
2) Google Assistant smart speaker setting: (see figure 3.0)


Tip: When register to the third party and sign-in, you will realize the smart speaker to control the LED lights.


Note: 1) Pl. Don’t hesitate to contact us if you have any question.
2) For more wireless dimmable type LED drivers, pl. Login our Official website to know more about us.
www.swinpower.com or www.smartspower.com
