Non-dimmable LED Driver

100W CCT & TRIAC/0 10V dimmable constant voltage led power supply driver junction box for sale

This 100W CCT& Triac/0-10V/1-10V/10VPWM/Potentiometer dimmable led driver has a dimmable effect of PWM output mode, 0.1~100% ultra-deep dimming, and can work well with most popular dimmers on the market. Compatible with, for example, Lutron dimmer

  • item no.:

    CTA-12100J
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12VDC
  • Working Mode:

    Constant voltage
  • Certification:

    UL, ROHS, FCC
  • Warranty:

    5 years
inquiry now
product details

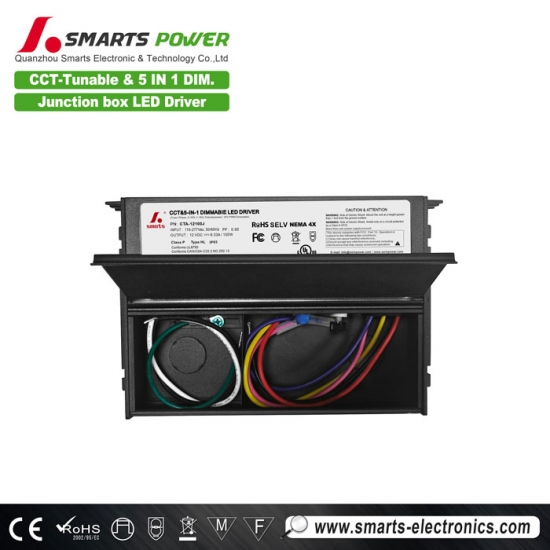

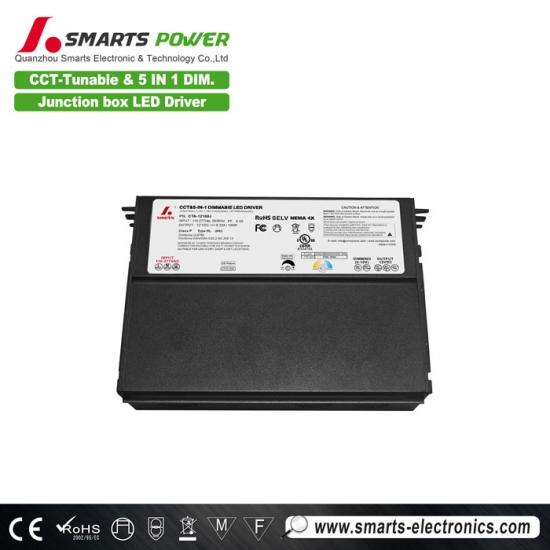

100W CCT & TRIAC/0 10V dimmable constant voltage led power supply driver junction box for sale

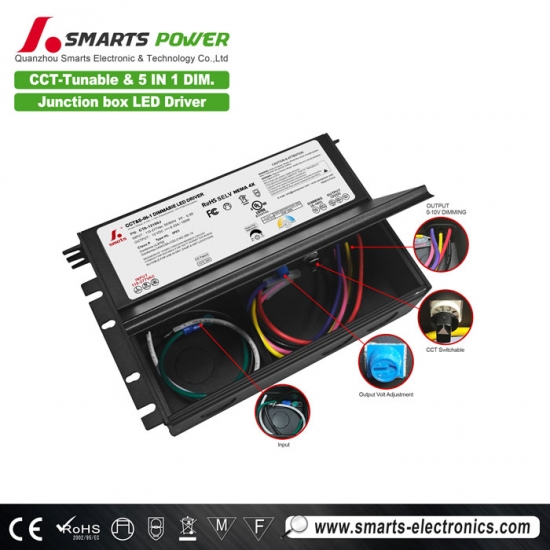

The 277vac junction box and power supply are integrated into one design. The 100W constant voltage LED driver has a unique fine-tuning voltage knob built in. The aluminum shell has good heat dissipation. It has passed NEMA 4X certification and has a five-year warranty.


  Specification

Model Number CTA-12100J CTA-24100J CTA-48100J
Output Type
Reted Power 100W
Reted Voltage 12V 24V 48V
Reted Current 8.33A 4.16A 2.08A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Type
Voltage Range 110-277V
Frequency Range 47-63HZ
Efficiency(Typ.) 86%@120VAC 87%@277VAC
Total Harmonic Distortion THD< 15%(@100% load)
Power Factor(typ.) 0.99@120VAC 0.98@277VAC
AC Current(Typ.) 1.04A
Inrush Current(Typ.) 26A
Leakage Current <0.5mA
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 188x120.5x42mm (L*W*H)
Packing -
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


Wire Specification

CTA-J Input Output 0/1-10V Dimming
Power Function Color Spec. Function Color Spec. Function Color Spec.
100W AC L Black 18AWG DC+ Red 18AWG Dim+ Purple 18AWG
AC N White 18AWG DC- Black 18AWG Dim- Pink 18AWG
Ground Green 18AWG CW- Yellow 18AWG / / /

Function Introduction


Mounting

1.This driver must be installed in a well-ventilated area free from explosive gases and

vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate. Vertical mounting
is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

Connecting Diagram

Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Dimming operation

Works with Two channel CCT warm-dim LED strip/tape (3 wires)
