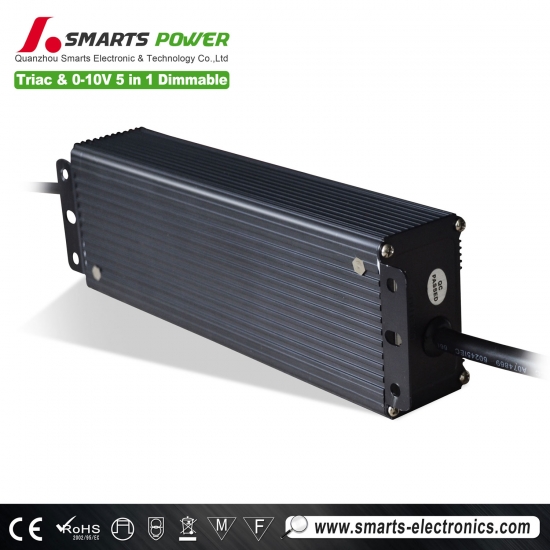

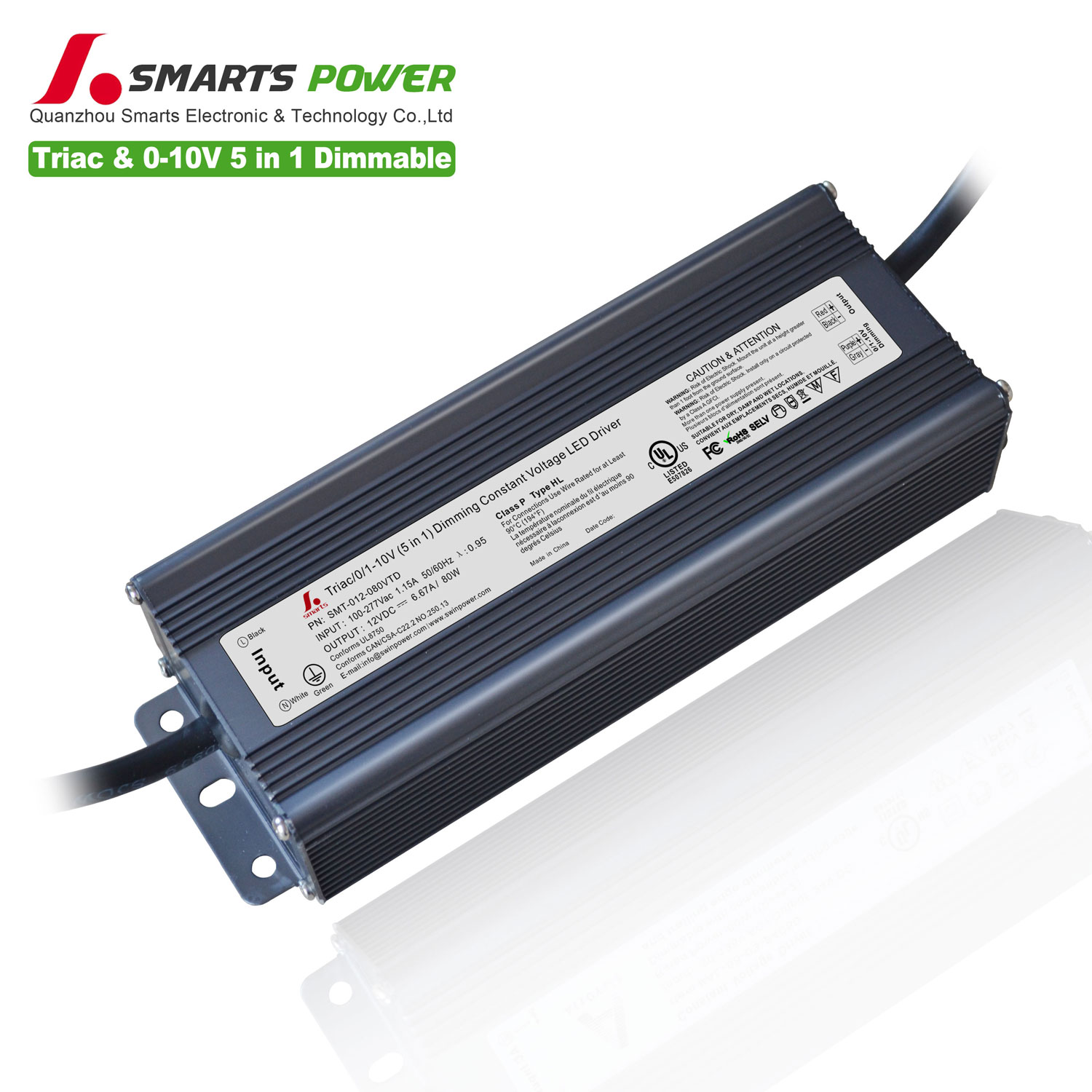

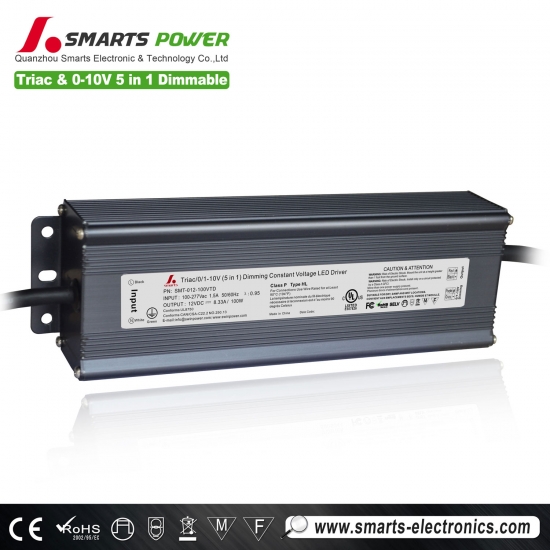

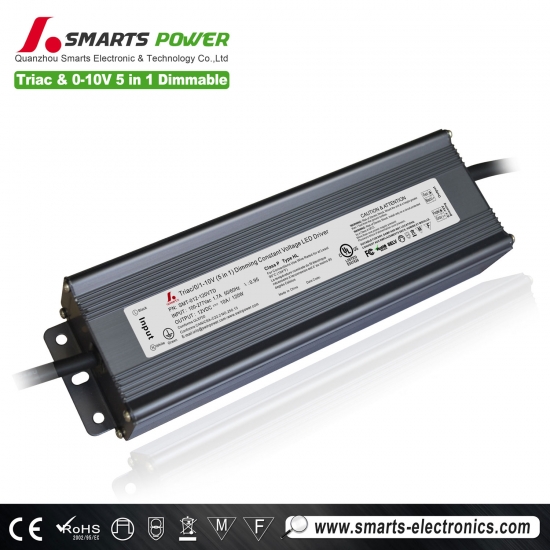

UL listed 12vdc 100w PWM dimmable transformer for led lights
It serves many functions, such as providing dmmable, assisting in performing household tasks, creating an atmosphere for entertaining, and pulling together the overall design a homeowner is trying to achieve. Above all else, 24v 100w dimmable led driver is beautiful, and great lighting will bring your house to life.
Specification
model
SMT-012-100VTD
SMT-024-096VTD
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Voltage Regulation
±0.5%
Rated current
8.33A
4.0A
Rated power
100W
96W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120VAC 0.96@277VAC
0.98@120VAC; 0.95@277VAC
THD(Typ. ) @ full load
<20%@120VAC &277VAC
Full Load Efficiency(Typ.)
80%@120VAC 83%@277VAC
83%@120VAC 86%@277VAC
AC Current（Typ.）
1.4A
Inrush Current （Typ.）
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC
Leakage current
<0.5mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Loading
≤120% constant current limiting, auto-recovery
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20 - 95%RH,non-condensing
Storage TEM.,Humidity
-40 - +80℃,10 - 95%RH
TEMP.coefficient
±0.03%/℃(0 - 50℃)
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 + UL1310, class 2 CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Net Weight
1.1Kg
Size
230*70*43mm（L*W*H）
packing
Carton size: 340*275*170mm , 10PCS/ctn
Notes
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |
Mechanical Specification
Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming operation
Compatible with the LED Mirror
Inspired By Traditional Style with 100w dimmable led driver , this Rectangle Mirror Features A Two-toned Finish In A Textured Dark Bronze Paired With Antiqued Silver, Accented With A Beaded Inner Liner. The Beveled Mirror May Be Hung Horizontal Or Vertical.
Related Products
|
Mode：SMT-012-080VTD |
