Non-dimmable LED Driver

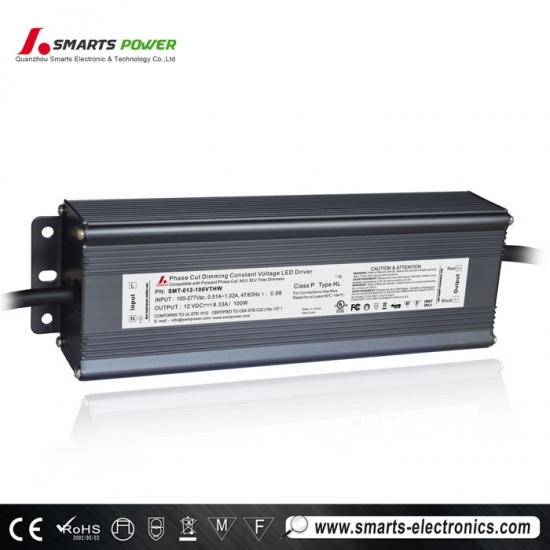

UL Waterproof 277VAC 12VDC Dimmable LED Power Supply

277v power supply waterproof are the perfect choice for LED panels, LED Strips, LED Cove Lighting and various commercial and residential LED applications.

  • item no.:

    SMT-012-100VTHW
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Working Mode:

    Constant Voltage
  • Certification:

    UL/cUL
  • Warranty:

    7 Years
inquiry now
product details
UL Waterproof 277VAC 12VDC Dimmable LED Power Supply


New Multi-Dim Regulated 277v power supply waterproof features outstanding LED dimming performance that use Pulse-Width Modulation (PWM) dimming for smooth dimming. Compatible with a wide range of dimmers; Forward phase, Magnetic low voltage, Triac Dimmers. For indoor use only.

  96W led power supply 12v dc Features


-Delivers smooth, stable, flicker-free dimming with soft start and desirable fade-on performance

-When a dimmer is set to full brightness, there is no loss of top-end light output

-No minimum lighting load required for wide range dimming

-Auto reset protection in case of lighting overload, open-circuit, short-circuit, over-temperature or over voltage

-cULus listed for dry or damp locations (Indoor use only)

-For large area lighting brightness control, connect multiple LED Drivers to a single 120VAC dimmer switch

-Compatible with single color LED Strips

-Rated for 30,000 hours when at 80% power, 24 hours a day; 50,000 hours if only on 8~12 hours a day

-Constant Voltage Output

-Universal AC input: 110~277 VAC

-Power Factor > 0.98

-High efficiency > 84%

-Free Air convection cooling

-Compatible with Forward phase, Magnetic low voltage and Triac dimmers

-Suitable for LED lighting and sign lighting applications


model

SMT-012-100VTHW

Output

DC Voltage

12V

Voltage Accuracy

±0.5V

Rated current

8.33A

Rated power

100W

Input

Voltage Range

100~277V AC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.95/110V,PF≧0.97/277V

Full Load Efficiency(Typ.)

>82%

AC CurrentTyp.

1.33A/110VAC

Inrush Current Typ.

20A, 50%, 1.6ms

Leakage current

0.5mA/110V

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Loading

≤120% constant current limiting, auto-recovery

Over voltage

140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level surge4KV

Others

Net Weight

1.1Kg

Size

230*70*46mmL*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1.  All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Label


UL Waterproof 277VAC 12VDC Dimmable LED Power Supply


  Dimming Operation for 277v power supply waterproof


- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

- The Pulse-Width Modulation (PWM) of output voltage can be adjusted by the input terminal of the AC phase line(L) by connection a phase/triac dimmer.

- Compatible with Forward phase, leading edge, Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.

- please try to use the small power dimmers with power at least 1.5 times as the output power of the driver., which can be accessed to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.

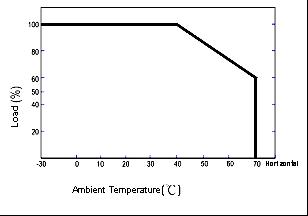

  Derating Curve for led power supply 12v dc


dimmable led power supply

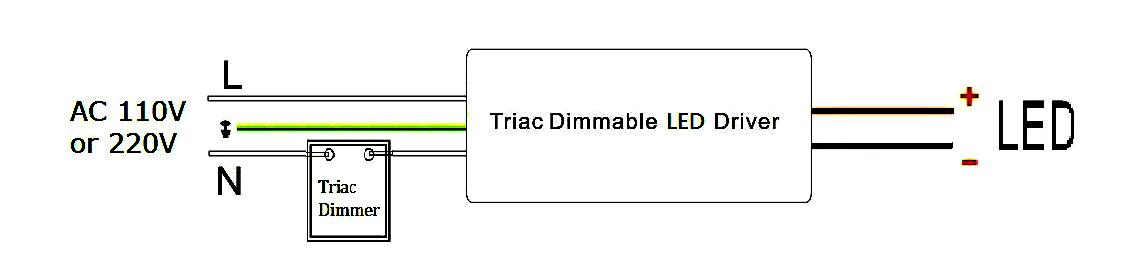

  Connecting Diagram for dimmable led power supply

dimmable led power supply
