Non-dimmable LED Driver

200-240vac 10w triac dimmable constant current type selectable led driver

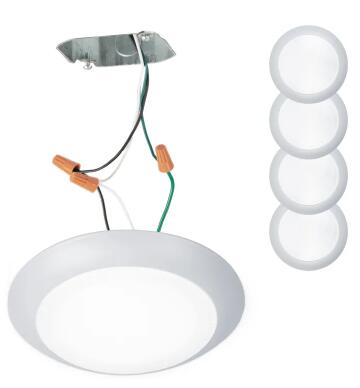

The triac driver output could be paired well with the Wide LED Flush Mount Indoor Ceiling Fixtures.
  • item no.:

    SMT-M-010CTO
  • brand:

    SMARTS
  • Input Voltage:

    200-240VAC
  • Output Voltage:

    3~42vdc
  • Output Current:

    100~450ma
  • Working Mode:

    Constant current
  • Certification:

    CE ROHS
  • Warranty:

    7 years
inquiry now
product details

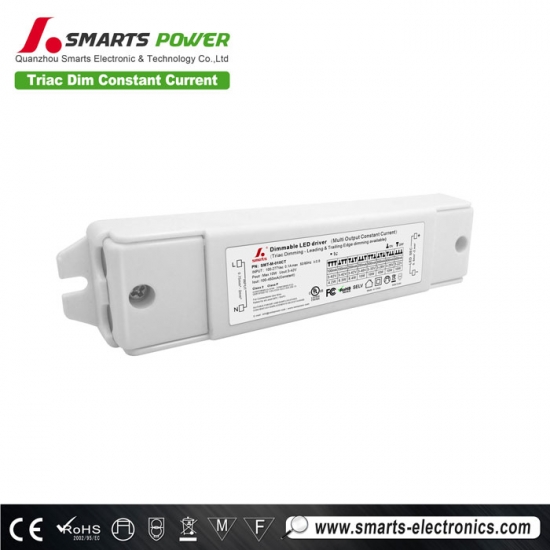

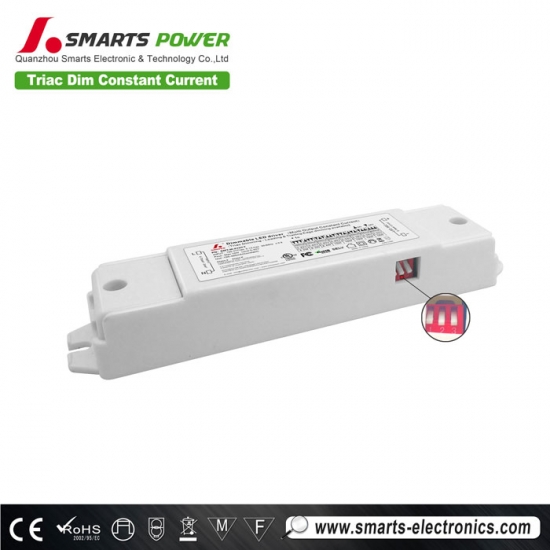

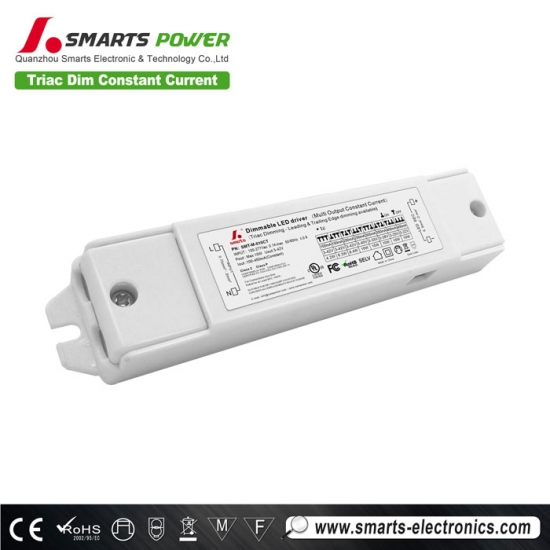

200-240vac 10w  triac dimmable constant current type selectable led driver


The triac super slim led driver series provides excellent thermal dissipation. The installation is very easy, screwless design on surface gives the lamp an IP54 protection level.


  Specification


Model

SMT-M-010CTO

Output

Rated current (mA)

450mA



400mA

350mA

300mA

250mA

200mA

150mA

100mA

Current Tolerance

±25mA

DC Voltage

3-22V

3-25V

3-29V

3-33V

3-40V

3-42V

3-42V

3-42V

Rated power

10W

10W

10W

10W

10W

8.4W

6.3W

4.2W

Input

Rated Input Voltage

200-240VAC

Rated Frequency

47-63HZ

Power Factor

Full loading   ≥ [email protected]

Efficiency (Typ.)

Full loading   ≥ 75%@230VAC

AC Current (Max.)

0.1A

Inrush Current (Typ.)

11A, 2us @ 50%Ipeak at 230VAC

Leakage current

<0.50mA

Protection

Short Circuit

Constant current mode, recovers automatically after fault condition is removed

Output No-Load Voltage

52V max.

Over temperature

Ambient temp. over 50±5℃, output current will be reduced to 50%;

Ambient temp. over 60±5℃, output will be off; recovers automatically after temp. drops.

Protection Class:

II



Environ-

ment

Working TEMP.

-40-+60℃

Working Humidity

20-90%RH, non-condensing

Storage TEMP. Humidity

-40-+80℃,10-95%RH

TEMP. coefficient

±0.03%/℃ (0-50℃)

Vibration

10-500Hz, 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes



Safety



Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

Others

Weight

0.65Kg

Size

135*30*20mm(L*W*H)

packing

350*300*135mm (100PCS/CTN ) for outer carton  G.W.:7.6 kg

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

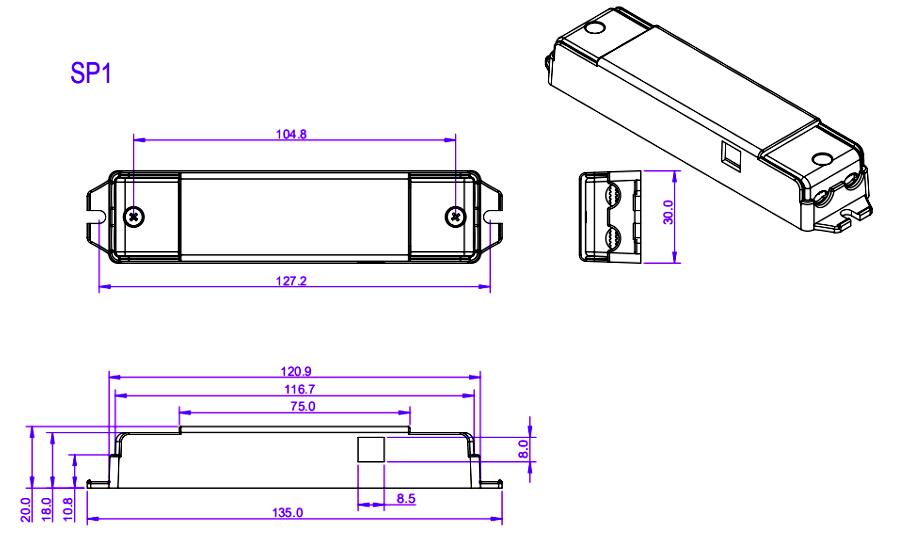

  Mechanical Specification


triac slim led driver



Ø Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

Ø Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

Ø Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.

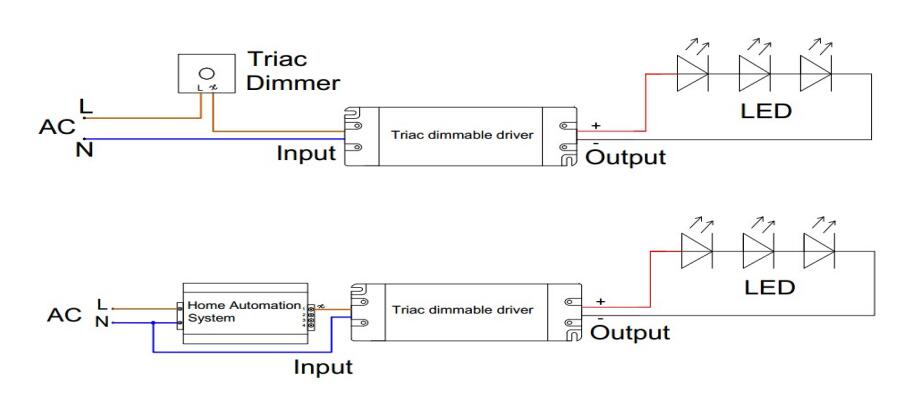

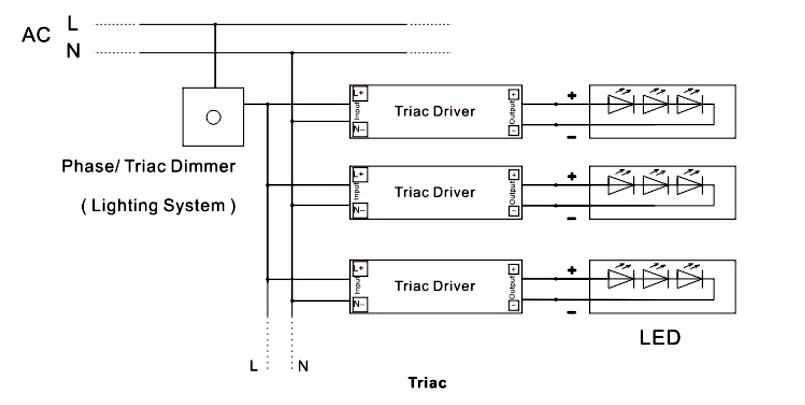

  Dimming operation



  Compatible with indoor downlight



There has a new series of our triac dimmable led driver with constant current type led driver, there are many output voltage and output current you can choose for your downlight.

Please feel free to let us know when you have any questions on our led driver.






  Related Products

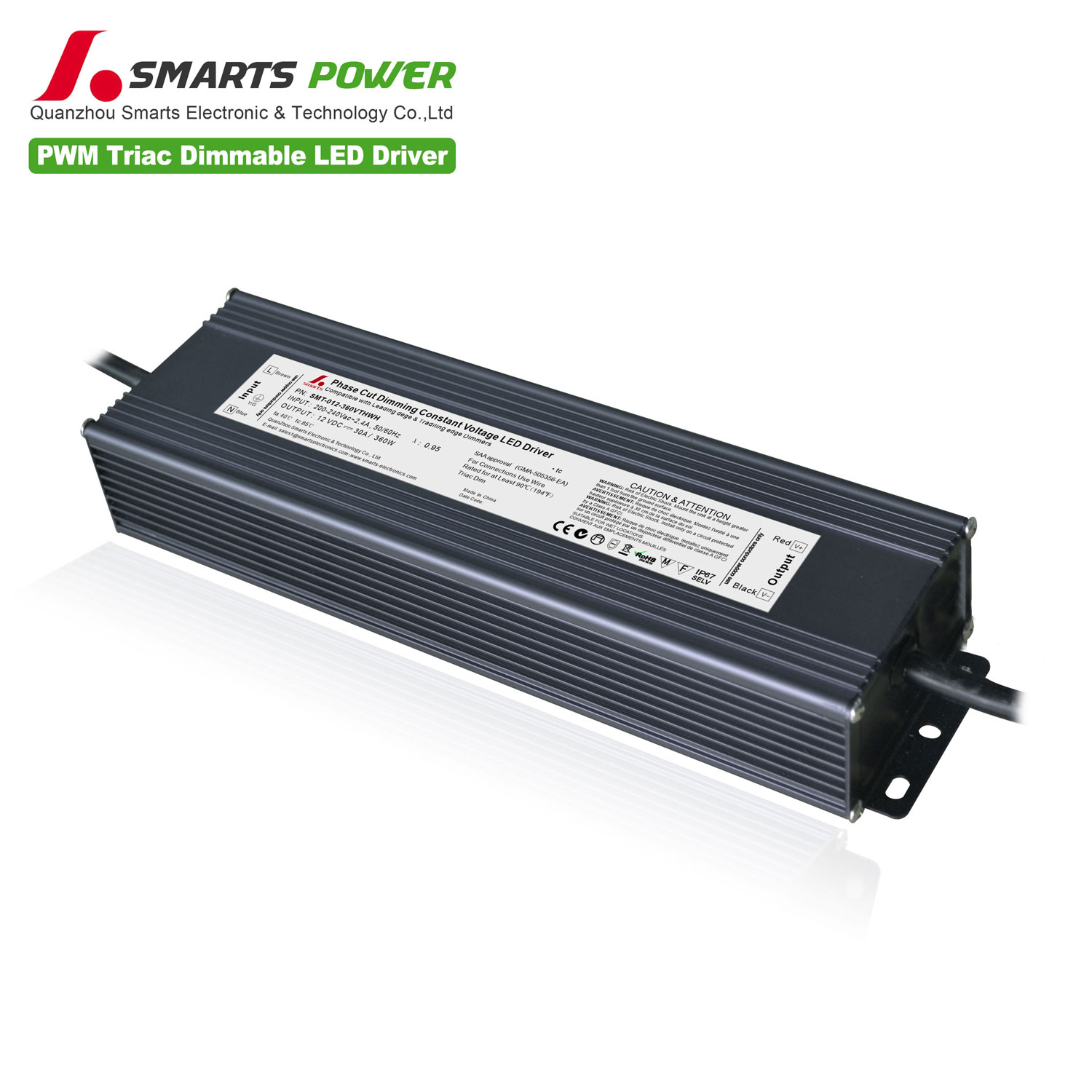

The hign wattages for the 12vdc 360w triac dimmable led driver is aluminum cases for outdoor lighting. 7 years warranty. When working with existing wiring, installing a chandelier is a simple project that only takes a day, so you can easily and quickly make a big impact on your home’s decor.
