Non-dimmable LED Driver

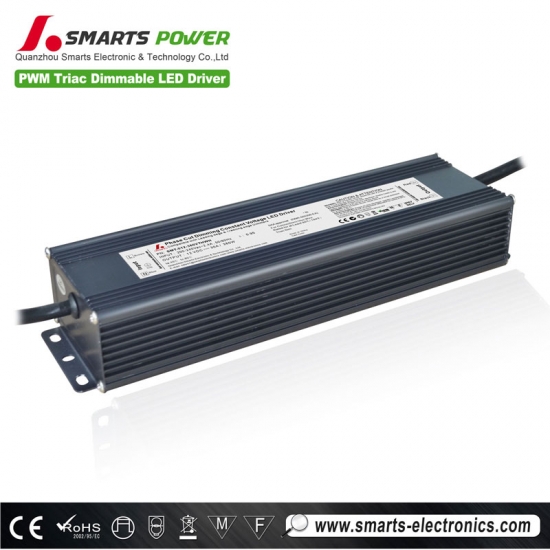

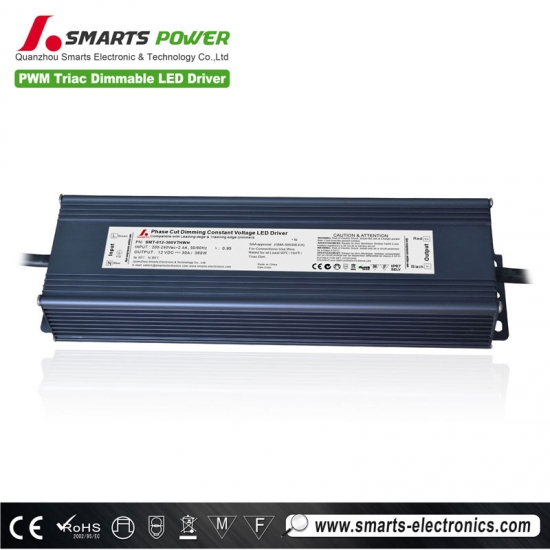

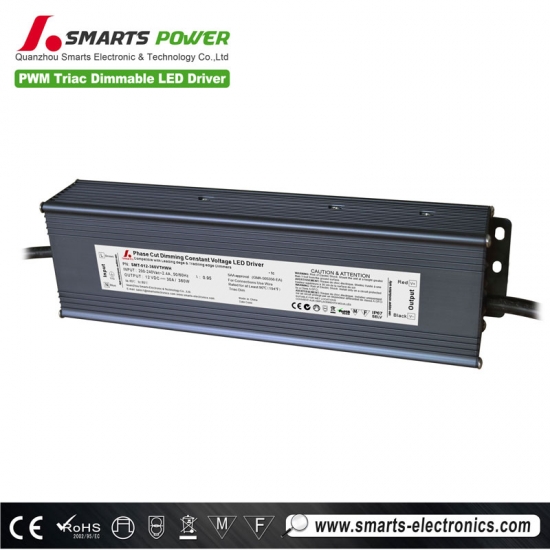

CE/ROHS approval 240v to 12v led driver ip67 waterproof triac dimmable

  • item no.:

    SMT-012-360VTHWH
  • brand:

    SMARTS
  • Input Voltage:

    200-240VAC
  • Output Voltage:

    12vdc 24vdc
  • Output Current:

    30a 15a
  • Working Mode:

    triac dimming
  • Certification:

    UL cUL
  • Warranty:

    7 years
inquiry now
product details

CE/ROHS approval 240v to 12v led driver ip67 waterproof triac dimmable

Specification



Model

SMT-012-320VTHWH

SMT-024-320VTHWH

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

±1%



Rated current

30A

15A

Rated power

360W

Input

Voltage Range

220-240VAC

Frequency Range

47~63HZ

Power Factor(Typ.)

PF≥0.95(Full loading)

Efficiency(Typ.)

>88% (Full Load)

))

>90% (Full Load)

AC Current(Typ.)

2.4A

1.76A

.A

1.74A

Leakage current

<0.50mA

Protection

Short Circuit

No output, remove the fault and re-power on to recover

Over load

≤120%

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes





Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVACI/P-FG:1.88KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015,EN61000-3-2,3 (≥60%loading)

EMC IMMUNITY

EN61000-4-2,3,4,5,6 ,11,EN61547

Others

Weight

1.67kg

Size

276*78*47mm(L*W*H)

packaging

336*121*61mm inner box,350*310*260mm outside carton 10PCS /CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

3. Loading range from 10% to 100%

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

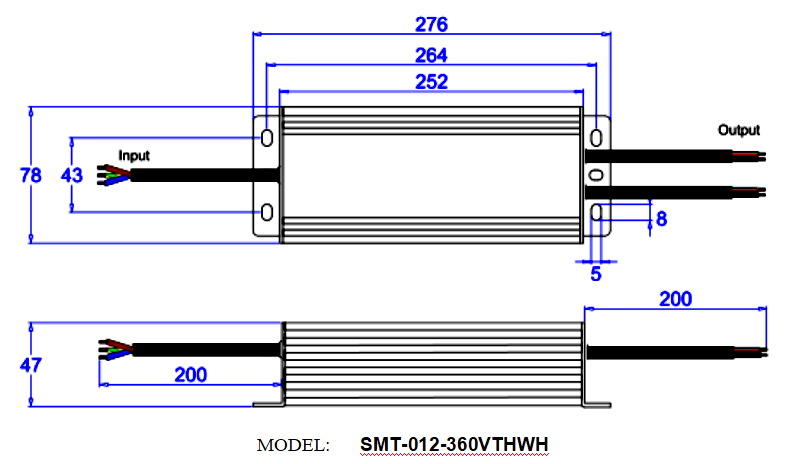

■Mechanical Specification





Ø Input Rubber cable H05RN-F 3*1.0mm² ,the green /yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

Ø Output Rubber cable H07RN-F 2*1.5mm²,Red is output(V+) Positive,Black is output (V-) negative.Connected to LED Lamps.



Note:Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.


■Dimming Operation


Ø Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Ø Compatible with Leading edge and tailing edge triac dimmers.

Ø Please use a dimmer with max. power at least 1.5 times than the load.

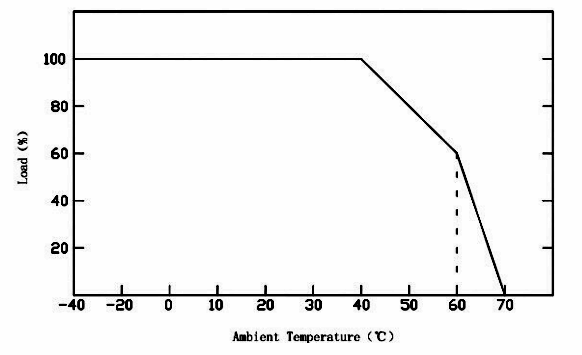

■Derating Curve



Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

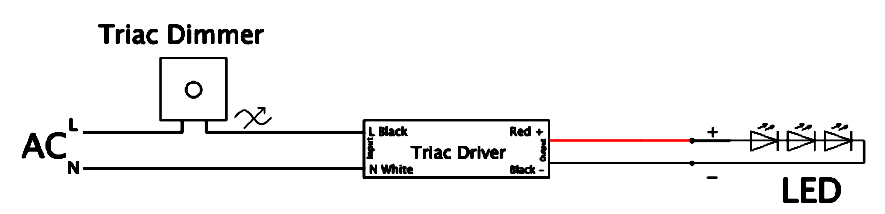

■ Simple Connection Diagram





■ Instruction:


※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;

※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: [email protected]  Or take a phonecall: 0086-595-22863721 ext.808

 Official website:  www.smarts-electronics.com   &   www.swinpower.com

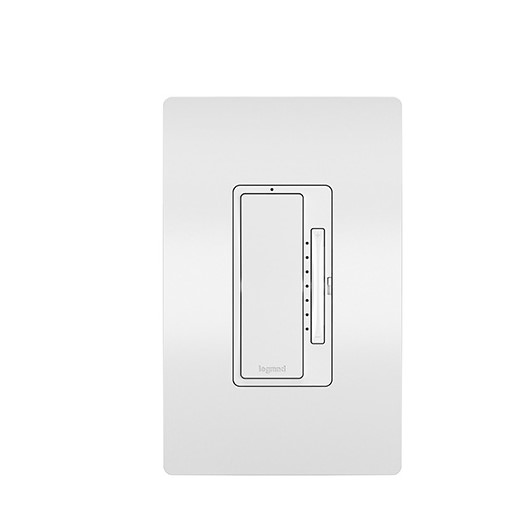

  Compatible Dimmer Type
