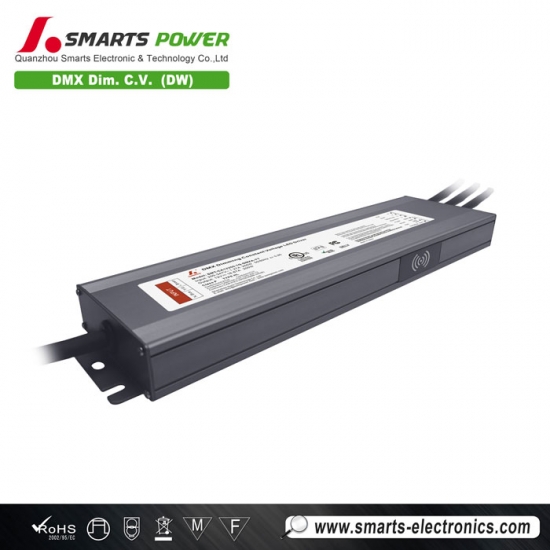

This DMX dimmable LED power supply features an input voltage range of 200-347VAC and includes an auxiliary power supply and lamp temperature detection. Multiple frequency options are available, and LED driver parameters can be adjusted via the NFC app. The dimming range is smooth and stable from 0.2% to 100%, ensuring flicker-free operation. A 7-year warranty is also included.
Specification
| Model | SMT-CA12200-2G-DMXA-YT | SMT-CA24200-2G-DMXA-YT | SMT-CA48200-2G-DMXA-YTT | |
| Certificate | cUL / FCC / CE / SELV / Class P /TYPE HL / RoHS / Reach/UKCA/ICES-005/Class 2 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Fine-tune Voltage | 12-13.5V | 24-26V | 48-50V | |
| Rated current | 16.67A | 8.33A | 4.17A | |
| Rated power | 200W | |||
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Voltage Regulation | ≤1% | ≤1% | ≤1% | |
| Load Regulation | ±4% | ±2% | ±2% | |
| Overshoot | <6% | <3.5% | <3% | |
| RIPPLE & NOISE (max.) | 264mVp-p | 437mVp-p | 654mVp-p | |
| Input | Voltage Range | 200-347VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Standby power | ≤0.5W | |||
| Power Factor (Typ.) @ full load |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.97@347VAC |
|
| Efficiency(Typ.) @ full load |
≥91.4%@230VAC ≥91.5%@277VAC ≥92%@347VAC |
≥93.5%@230VAC ≥94%@277VAC ≥94%@347VAC |
≥92.6%@230VAC ≥92.5%@277VAC ≥93%@347VAC |
|
| THD(Typ. ) @ full load | <8%@200VAC - 347VAC | |||
| AC Current (Max.) | 1A@230VAC 0.85A@277VAC 0.65A@347VAC | |||
| Inrush Current (Typ.) | 100A,259us@50%Ipeak 230VAC 120A,244us@50%Ipeak 277VAC 200A,259us@50%Ipeak 347VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Load | ≥115% Hiccup mode,recovers automatically after fault condition is removed | |||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
|||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 CAN/CSA-C22.2 No.250.13 (US) | ||
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |||
| EMC Immunity(EMS) | FCC/ICES do not request this test(EU)&FCC Part 15,Subpart B;ANSI C63.4-2014 (US) | |||
| EMC Emission(EMI) | EN55015 EN61000-3-2,3 (≥50%load) (EU) & FCC Part 15 Subpart B (US) | |||
| Surge Immunity Test | AC Power Line:Differential Mode 4 kV, Common Mode 6 kV | |||
| Others | Net Weight | 1.15kg each | ||
| Dimension | 279*78*25mm(L*W*H) | |||
| Packing | 330*300*215mm 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 277V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
Mechanical Specification
MCB recommendation
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 8 |
| 13A | 10 | |
| 16A | 12 | |
| 20A | 16 | |
| 25A | 20 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 10 |
| 13A | 13 | |
| 16A | 16 | |
| 20A | 20 | |
| 25A | 25 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 12 |
| 13A | 15 | |
| 16A | 19 | |
| 20A | 24 | |
| 25A | 24 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| Global wire gauge | |
| DT200 | |
| Input wire(12V&24V&48v) | Black(L) White(N) Green(G)(3*17AWG\3*1.04mm²) |
| Output wire(12V) | Black(V+) White gray(CW-) Yellow(WW-)(3*14AWG\3*2.08mm²) |
| Output wire(24V) | Black(V+) White gray(CW-) Yellow(WW-)(3*16AWG\3*1.31mm²) |
| Output wire(48V) | Black(V+) White gray(CW-) Yellow(WW-)(3*18AWG\3*0.824mm²) |
| DMXming wire | Purple(DMX+) Pink(DMX-) Brown(GND/AUX-)Red white(AUX+)(4*18AWG\4*0.824mm²) |
| External temperature wire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG\2*0.824mm²) |
Warm tips:
Please make sure you connect these correctly, otherwise your product will not function correctly and could be damaged.
Dimming Operation
Note：
1. The model name SMT-CAxx200-DMXA means that there is no auxiliary power supply and lamp temperature detection, so there is no corresponding wiring for the LED driver.
2. The model name SMT-CAxx200-DMXA-Y means that there is an auxiliary power supply but no lamp temperature detection, so the LED driver has no lamp temperature detection wiring.
3. The model name SMT-CAxx200-DMXA-T means that there is no auxiliary power supply but there is lamp temperature detection, so the LED driver has no auxiliary power wiring.
4. The model name SMT-CAxx200-DMXA-YT means that there is an auxiliary power supply and lamp temperature detection.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
| NFC voltage regulation level | ||||||||||
| level 1 | level 2 | level 3 | level 4 | level 5 | level 6 | level 7 | level 8 | level 9 | level 10 | |
| 12V | 12.0V | 12.2V | 12.3V | 12.5V | 12.6V | 12.8V | 13V | 13.1V | 13.3V | 13.5V |
| 24V | 24.0V | 24.2V | 24.4V | 24.7V | 24.9V | 25.1V | 25.3V | 25.6V | 25.8V | 26.0V |
| 48V | 48.0V | 48.2V | 48.4V | 48.7V | 48.9V | 49.1V | 49.3V | 49.6V | 49.8V | 50V |
