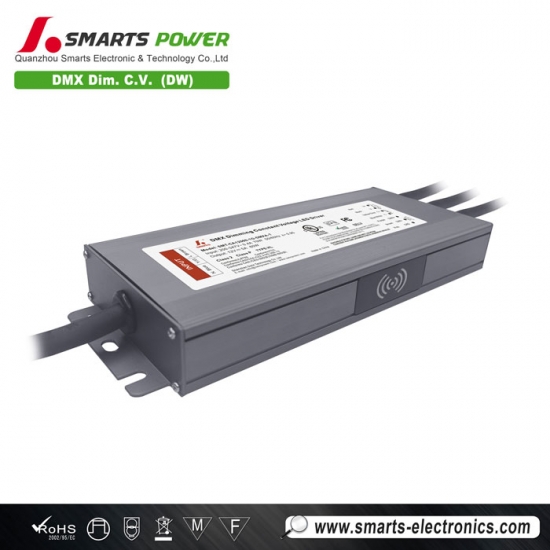

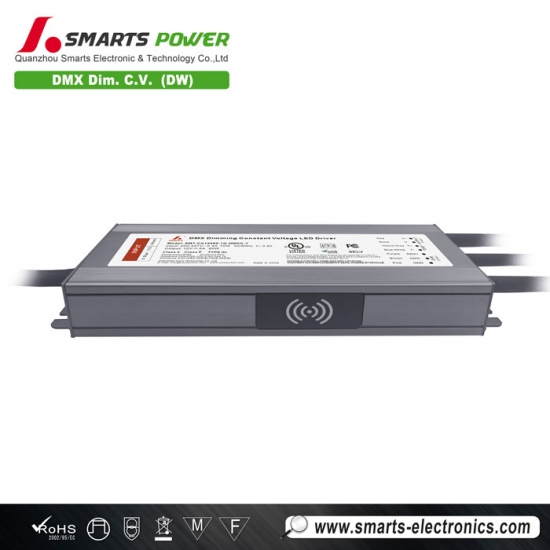

347VAC Input Voltage waterproof DMX Intellient dimmable 60W led driver for led lights
347VAC Input Voltage waterproof DMX Intellient dimmable 60W led driver for led lights
347VAC Input Voltage waterproof DMX Intellient dimmable 60W led driver for led lights
Aluminum housing, DMX dimmable 60W LED power supply, IP66 waterproof rating, excellent heat dissipation, multiple frequency options, built-in NFC smart programming module, LED driver parameters can be adjusted via NFC app, and comes with a 7-year extended warranty.
Specification
| Model | SMT-CA12060-1G-DMXA-T | SMT-CA24060-1G-DMXA-T | SMT-CA48060-1G-DMXA-T | |
| Certificate | UL / FCC / CE / SELV / Class P / TYPE HL / ROHS / Reach / UKCA / ICES-005 | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Fine-tune Voltage | 12~13.5V | 24-26V | 48-50V | |
| Rated current | 5A | 2.5A | 1.25A | |
| Rated power | 60W | |||
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Voltage Regulation | ≤1% | ≤1% | ≤1% | |
| Load Regulation | ±1% | ±1% | ±1% | |
| Overshoot/Undershoot | <10% (full load) | |||
| RIPPLE & NOISE (max.) | 350mVp-p | 530mVp-p | 695mVp-p | |
| Input | Voltage Range | 200-347VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
≥0.99@230VAC ≥0.98@277VAC ≥0.95@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.95@347VAC |
≥0.99@230VAC ≥0.98@277VAC ≥0.95@347VAC |
|
| Efficiency(Typ.) @ full load |
≥87%@230VAC ≥87%@277VAC ≥87.5%@347VAC |
≥87%@230VAC ≥88%@277VAC ≥88%@347VAC |
≥87.5%@230VAC ≥88%@277VAC ≥88.5%@347VAC |
|
| THD(Typ. ) @ full load | ≤7%@230V/277V ≤5%@347V | |||
| AC Current (Max.) | <0.33A@230VAC <0.27A@277VAC <0.22A@347VAC | |||
| Inrush Current (Typ.) | 20.8A,158us@50%Ipeak 230VAC 21.6A,194us@50%Ipeak 277VAC 22.4A,276us@50%Ipeak 347VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Load | ≥110% Hiccup mode,recovers automatically after fault condition is removed | |||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
|||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13(US) | ||
| Withstand voltage | I/P-O/P:1.88KVAC (MAX 3.75KV) I/P-FG:1.88KVAC O/P-FG:0.5KVAC(US) | |||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |||
| EMC Immunity (EMS) | FCC/ICES do not request this test (US) | |||
| EMC Emission (EMI) | FCC Part15 Subpart B;ANSI C63.4a-2017,ICES-005 Issue 5(US) | |||
| Surge Immunity Test | AC Power Line:Differential Mode 4 kV, Common Mode 6 kV | |||
| Others | Net Weight | 0.75kg | ||
| Dimension | 200*78*25mm(L*W*H) | |||
| Packing | 415*230*170mm 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 277V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 4KHZ. The dimming curve is a logarithmic curve. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||

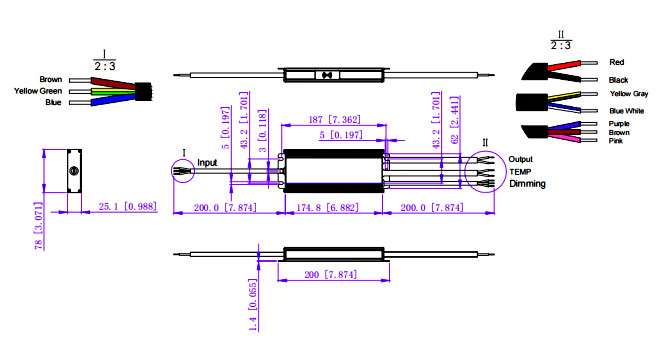

Mechanical Specification
MCB recommendation
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 18 |
| 13A | 23 | |
| 16A | 29 | |
| 20A | 36 | |
| 25A | 46 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 22 |
| 13A | 29 | |
| 16A | 36 | |
| 20A | 45 | |
| 25A | 56 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 27 |
| 13A | 35 | |
| 16A | 44 | |
| 20A | 55 | |
| 25A | 69 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
DT60
Input wire
Brown (L) (Blue (N) Yellow green (G) (3*17AWG)
Output wire
Red (V+) Black (V-) (2*18AWG)
Dimming wire
Purple (DMX+) Brown(DMX-) Pink (GND) (3*18AWG)
External temperature wire
Yellow gray (TEMP+) Blue white (TEMP-) (2*18AWG)
Warm tips:
Please make sure you connect these correctly, otherwise your product will not function correctly and could be damaged.
Dimming Operation
Note：
1. The model name SMT-CAxx060-DMXA means that there is no lamp temperature detection.so the LED driver has no lamp temperature detection wiring
2. The model name SMT-CAxx060-DMXA-T means that there is lamp temperature detection.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.

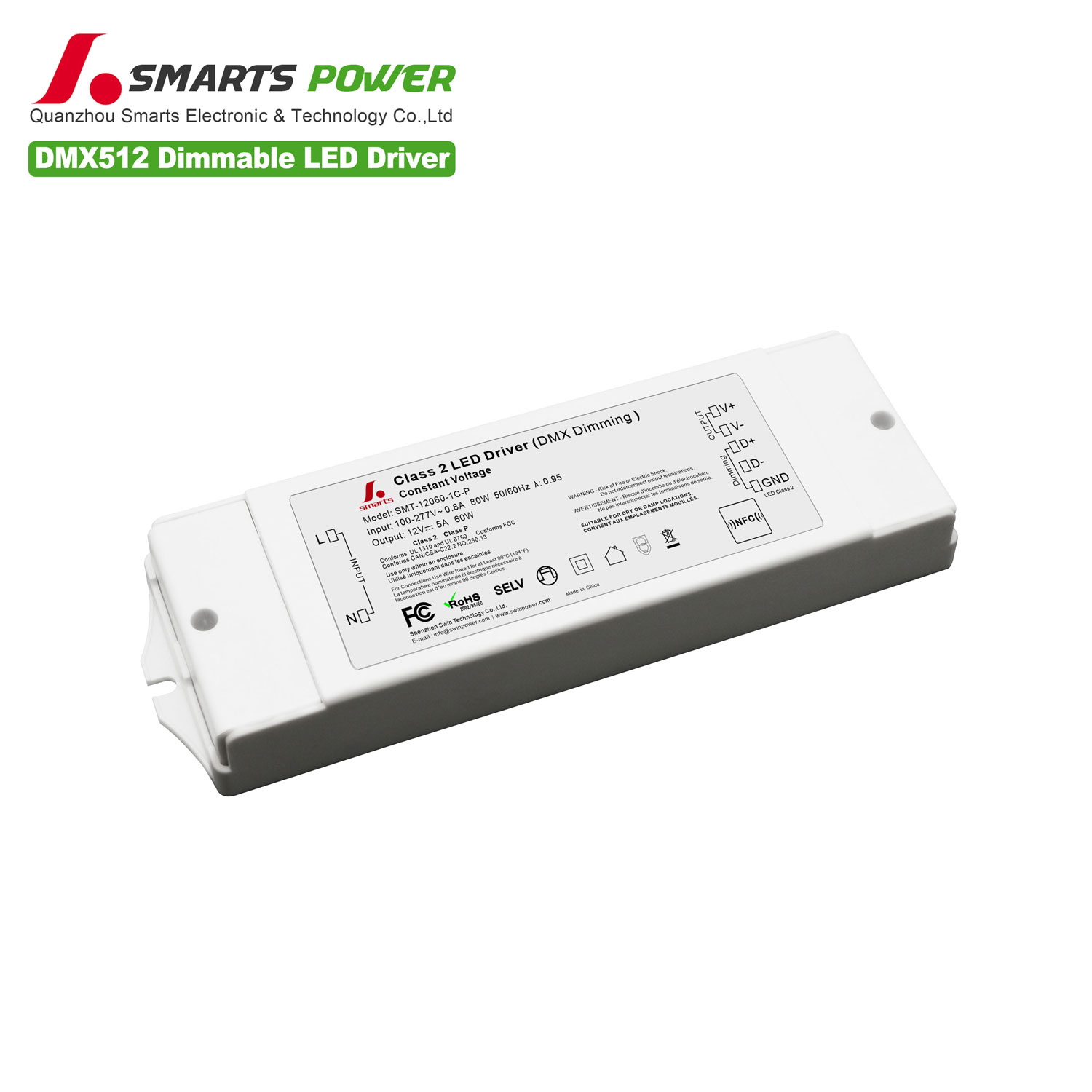

Related Products
|
