Non-dimmable LED Driver

220v 230v ac 12vdc 24vdc IP20 super slim ultra thin led driver 12v 15w 20w

slim series 12vdc 24vdc 6w ~ 60w rohs led driver with plastic housing. Buit in terminal screw connection.
  • item no.:

    SMT-012-020VWP
  • brand:

    SMARTS
  • Input Voltage:

    100-240VAC
  • Output Voltage:

    12v
  • Output Current:

    1.67A
  • Working Mode:

    CV
  • Certification:

    CE ROHS
  • Warranty:

    2 years
inquiry now
product details

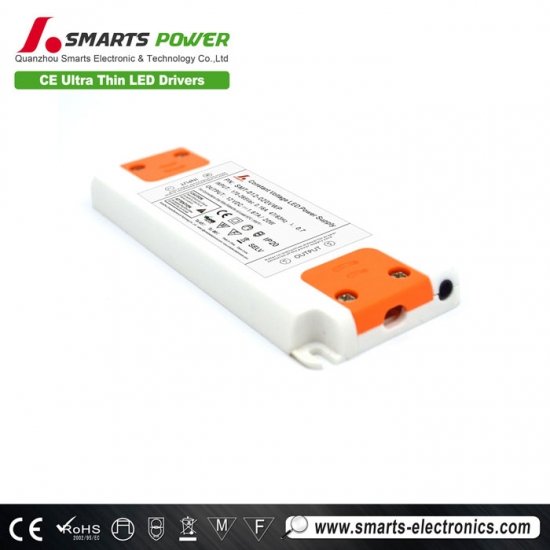

220v 230v ac 12vdc 24vdc IP20 super slim ultra thin led driver 12v 15w 20w



SMT-012-020VWP Ip20 non-waterproof, constant voltage working mode ultra thin led driver 12v 20w.



  Specification


  Label


  1. Input:100~240vAC / 47-63HZ
  2. Output : 12V @1.67A 20W
  3. Energy transfer: AC-DC
  4. Efficiency: 82%
  5. Case material: plastic housing
  6. Waterproof rate:  IP20
  7. CE, ROHS approval

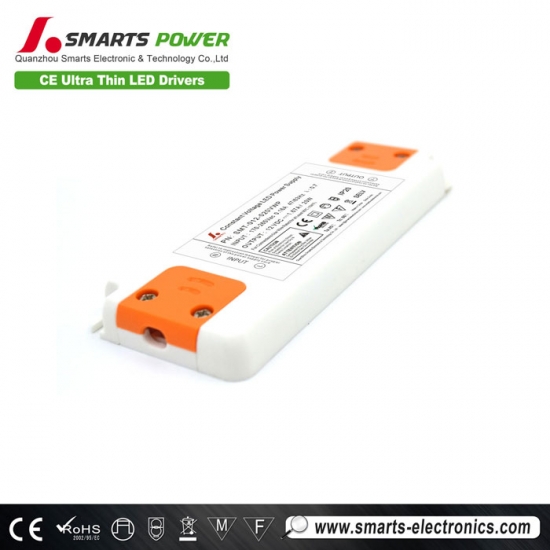

220v 230v ac 12vdc 24vdc IP20 super slim ultra thin led driver 12v 15w 20w

2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)



  Product parameters


MODEL SMT-012-020VWP SMT-024-020VWP
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 1.66Amp 0.83Amp
VOLTAGE RANGE
RATED POWER 20Watt 20Watt
RIPPLE&NOISE(max) 300mV 300mV
VOLTAGE TOLERANCE ±5% ±5%
LINE REGULATION ±1% ±1%
LOAD REGULATION ±2% ±2%
INPUT VOLTAGE RANGE 200-240VAC 200-240VAC
FREQUENCY RANGE 47-63Hz 47-63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >83% >83%
AC CURRENT(Typ.) 0.18A/220VAC
PROTECTION SHORT CIRCUIT Protection type:recovers automatically after condition is removed
OVER CURRENT overload [email protected]% above peak rating
OVER LOAD 2.8A 1.2A
ENVIRONMENT WORKING TEMP. -10~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13; CE /ROHS approval
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015;EN61000-3-2;EN61000-3-3;
EN61547;EN61000-4-2,3,4,5,6,8,11;

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

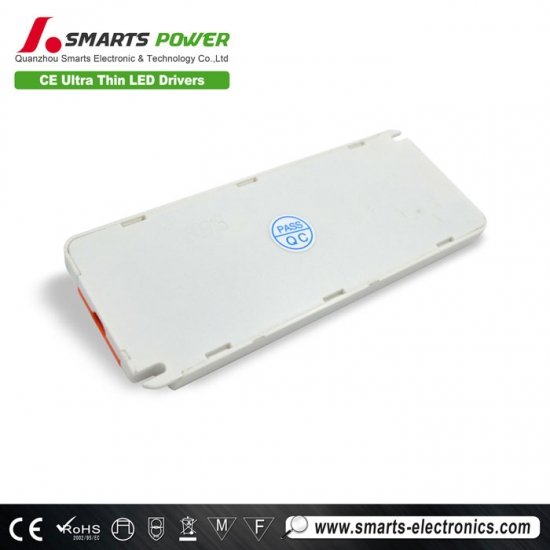

  Mechanical Specification


ultra thin led driver 12v 20w


  When Do I Need a “Constant-voltage” LED Driver?


Most commercially available LED “light modules” are constructed by connecting a number of LEDs in series or inparallel to form cluster or string configurations. In cases where these lights modules include a “constant-current” driver as part of the assembly, an external “constant-voltage” driver or power supply is required


  Related Products

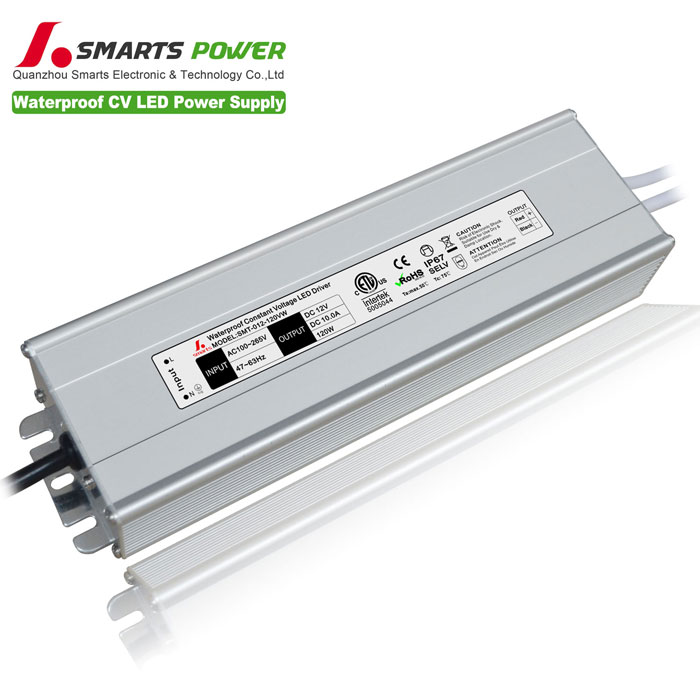

waterproof led driver 120W

 120W waterproof led driver IP67 is ETL listed waterproof type, efifcency 87%, PFC 0.95. non dimmable.


Model:SMT-012-120VW

input voltage:100~265V AC

Efficiency > 86%    PFC:95%

Size:  222×69×43mm(L*W*H)

Weight:1.20Kg/pcs

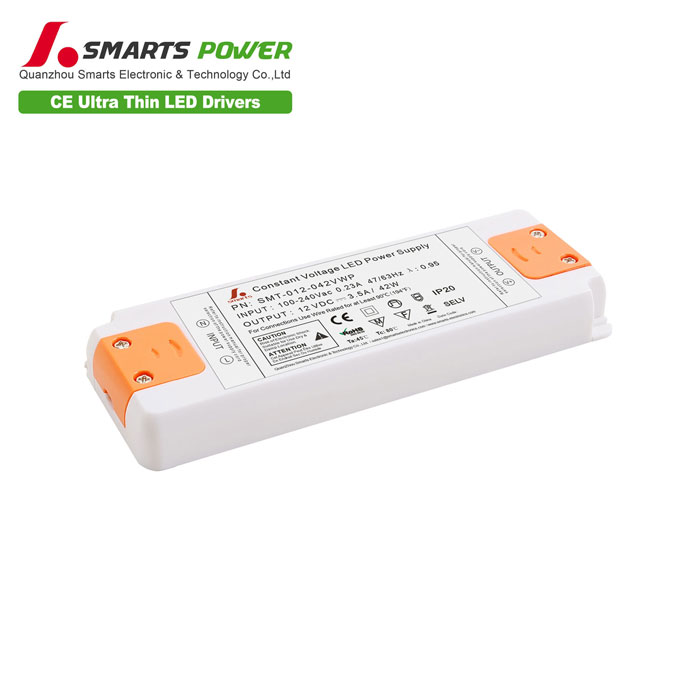

led driver 42W
