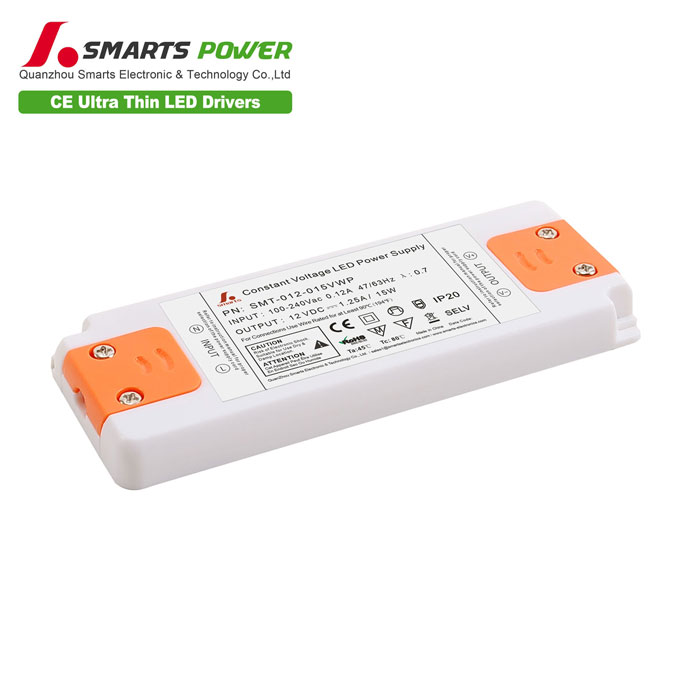

The Slim 12v 18w led driver is CE (EMC + LVD) for use in Europe and covered by 2-year manufacturer limited warranty. Auto reset protection in case of lighting overload, open-circuit, short-circuit, over-temperature or over voltage. Suitable for LED lighting and sign lighting applications.
Details for led driver 18w:

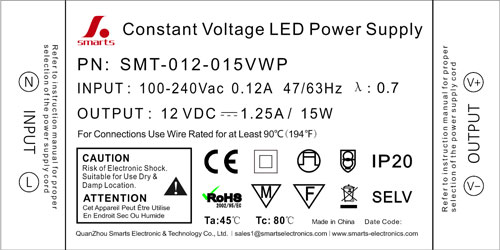

Label
Fetures for 12v 18w led driver
● IP44 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE,RoHS Certification
● 2 years warranty
SPECIFICAION for 12v 18w led driver
| MODEL | SMT-012-015VWP | SMT-024-015VWP | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 1.25Amp | 0.625Amp | |||
| VOLTAGE RANGE |
|
|
|
|
|
| RATED POWER | 15Watt | ||||
| RIPPLE&NOISE(max) | 300mV | ||||
| VOLTAGE TOLERANCE | ±5% | ||||
| LINE REGULATION | ±1% | ||||
| LOAD REGULATION | ±2% | ||||
| INPUT | VOLTAGE RANGE | 100-240VAC | |||
| FREQUENCY RANGE | 47-63Hz | ||||
| POWER FACTOR(Typ.) |
|
|
|
|
|
| EFFICIENCY(Typ.) | ﹥83% | ||||
| AC CURRENT(Typ.) | 0.17A/110VAC, 0.0.86/220VAC | ||||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |||
| OVER CURRENT | overload protected@145-160% above peak rating | ||||
| OVER LOAD | 2.3A | 1.2A |
|
|
|
| ENVIRONMENT | WORKING TEMP. | -10～+50℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20～99% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40～+80℃,10～99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;CE /ROHS approval | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||||
 |
 |
 |
 |
Noted for Constant Voltage LED Driver:
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

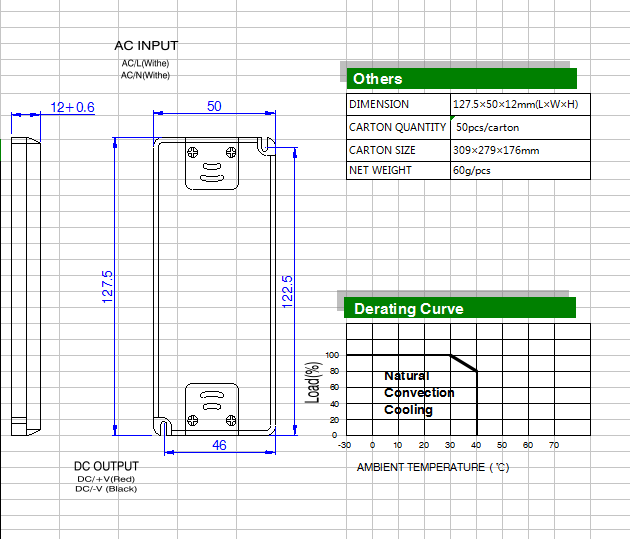

Mechanical Specification for 18w led driver:
Compatible Dimmer Type
12v 18w led driver export to European market with High reliability and save energy，Small size, special power supply for led closet lamp/led light bar/led strips.
Related Products
slim led driver 15w 220v is capable of powering up to 15 watts of indoor LED lighting that requires 12 volts of constant voltage High stability and low ripple, increase light efficiency and decrease light attenuation
Mode：SMT-012-015VWP |

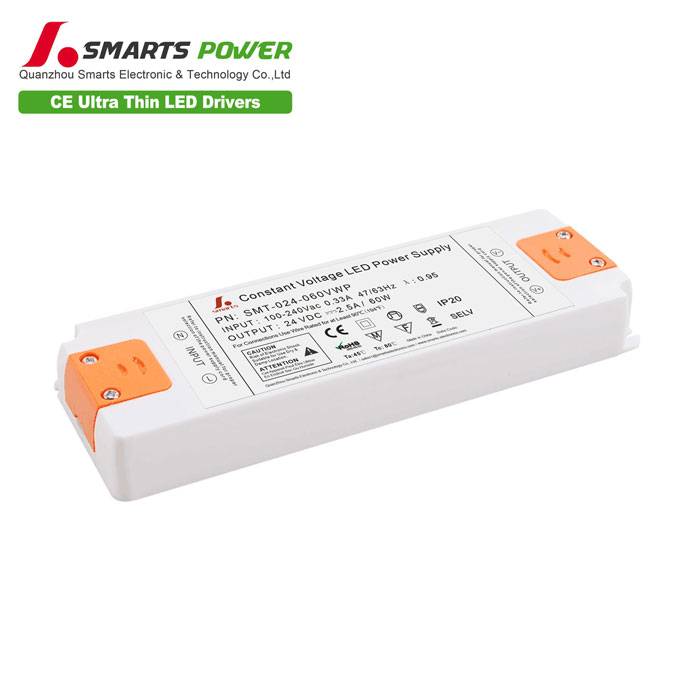

slim Constant Voltage Driver class 2 constant voltage 24v constant voltage led driver which is Input:100~240vAC / 47-63HZ,Output : 24V @2.5A 60W,2 years warranty led driver
