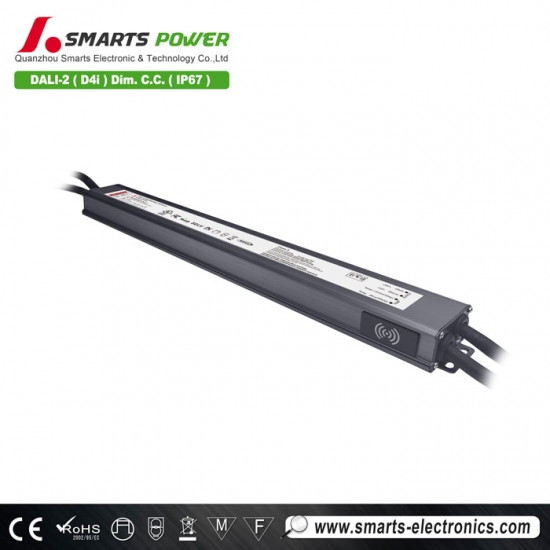

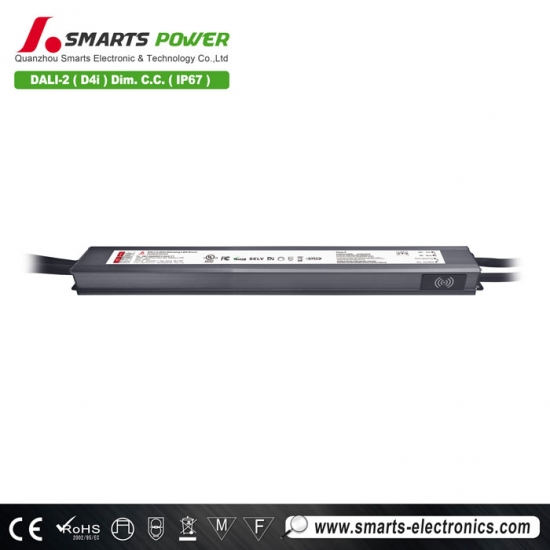

40W constant current DALI-2 D4I dimmable led power supply Aluminum housing design, waterproof grade ip66 Good heat dissipation, suitable for indoor and outdoor small space lighting project installation. With 7 years warranty
Specification
| Model | SMT-DI040W070-D4IA-YT | SMT-DI040W140-D4IA-YT | |
| Certificate | UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA/DALI-2 | ||
| Output | Rated current | 70mA-700mA | 140mA-1400mA |
| DC Voltage | 24-93VDC | 12-54VDC | |
| Rated power | 40W(max) | ||
| Current Tolerance | ±20mA | ||
| Line Regulation | <0.1% | ||
| Load Regulation | <0.1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) | >0.99@120VAC 60Hz >0.98@230VAC 50HZ >0.95@277VAC 60HZ | ||
| No load power (Max) | <1.5W | ||
| Standby power (Max) | <0.5W | ||
| THD(Typ.) @ full load | <11%@120VAC <9%@230VAC <10%@277VAC | ||
| Efficiency @ full load |
>87.0%@120VAC 60Hz >88.3%@230VAC 50HZ >88.7%@277VAC 60HZ |
>85.4%@120VAC 60Hz >86.8%@230VAC 50HZ >86.8%@277VAC 60HZ |
|
| AC Current (Max.) | 0.56A@100VAC 60Hz | ||
| Inrush Current (Typ.) | 28.8A, 256us@50%Ipeak@120V 55.2A, 130us@50%Ipeak@230V 66.5A, 259us@50%Ipeak@277V | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | ||
| Over temperature |
Ambient temp. over 55± 5℃, output current will be reduced to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temp.over 75± 5℃, output current will be reduced to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
||
| Environment | Working TEMP | -40~+50℃ (see below derating curve) | |
| Working Humidity | 20 -90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| Strobe test standard | IEEE 1789 Flicker free | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2 kV, Common Mode 4 kV | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | ||
| Others | Net Weight | 480g | |
| Dimension | 314.7*38.5*23.6mm (L*W*H) | ||
| Packing | 380*295*210mm 30pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life, please reduce the loading at lower input voltage . | |||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||
 |
 |
 |
 |

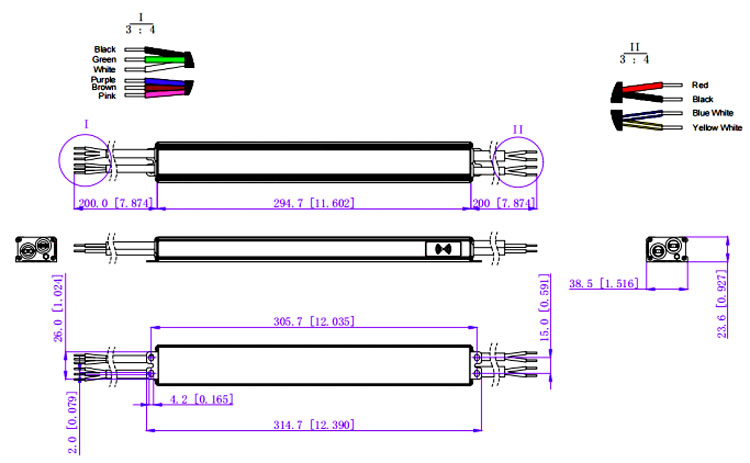

Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 15 |
| 13A | 19 | |
| 16A | 24 | |
| 20A | 30 | |
| 25A | 37 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 29 |
| 13A | 38 | |
| 16A | 47 | |
| 20A | 59 | |
| 25A | 66 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 34 |
| 13A | 44 | |
| 16A | 54 | |
| 20A | 68 | |
| 25A | 85 | |
| LN20 | |
| American wire gauge | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire | V+(Red) V-(Black)(2*18AWG) |
| Dimming wire | Purple(DA+)Brown(AUX+) Pink(DA-/AUX-)(3*18AWG) |
| External temperature wire | Yellow White(TEMP+) Blue white(TEMP-)(2*18AWG) |
| Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Operation
Note：
1. When Turn on the internal DALI bus power.No need external bus power supply.
2. The model name SMT-DI040WXXX-D4IA means that there is no auxiliary power supply and temperature control, so there is no corresponding wiring for the LED driver.
3. The model name SMT-DI040WXXX-D4IA-Y means that there is an auxiliary power supply but no temperature control, so the LED driver has no temperature control wiring.
4. The model name SMT-DI040WXXX-D4IA-T means that there is no auxiliary power supply but there is temperature control, so the LED driver has no auxiliary power wiring.
5. The model name SMT-DI040WXXX-D4IA-YT means that there is an auxiliary power supply and temperature control.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Related Products
|
Mode：SMT-DI040W070-D4IP intput voltage：100-277vac
Size : 296.7*30*21.2MM |
