Non-dimmable LED Driver

277vac 12v 36w slim led power supply for led strip

Smarts Electronics is a leading China manufacturer of the UL/ETL listed LED drivers available in the world. Their focus has always been providing LED driver technology that doesn't waste energy, is reliable, versatile, made in China and affordable.

  • item no.:

    SMT-012-036VWSW
  • lead time:

    7 woking days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Western Union, Creadit Card
  • Input Voltage:

    100-277vac
  • Output Voltage:

    12VDC
  • Output Current:

    3.0A
  • Working Mode:

    constant voltage
  • Certification:

    CE UL FCC ROHS
  • Warranty:

    7 years warranty
inquiry now
product details

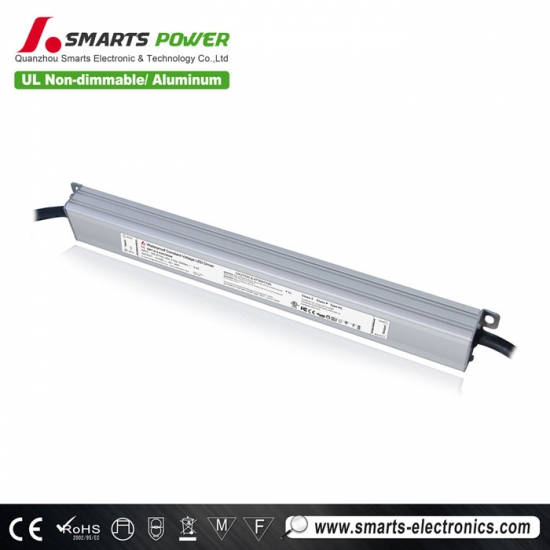

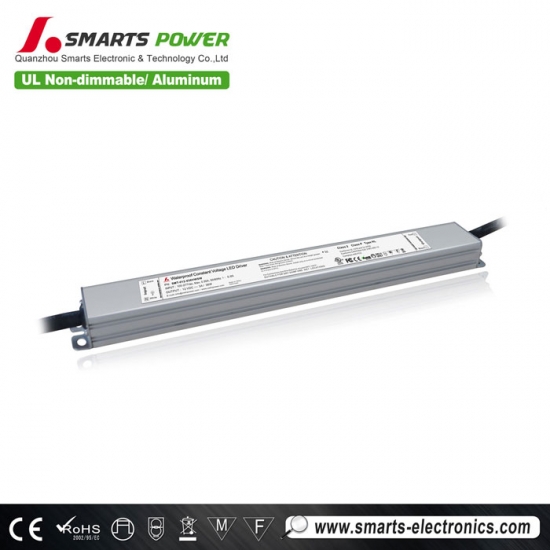

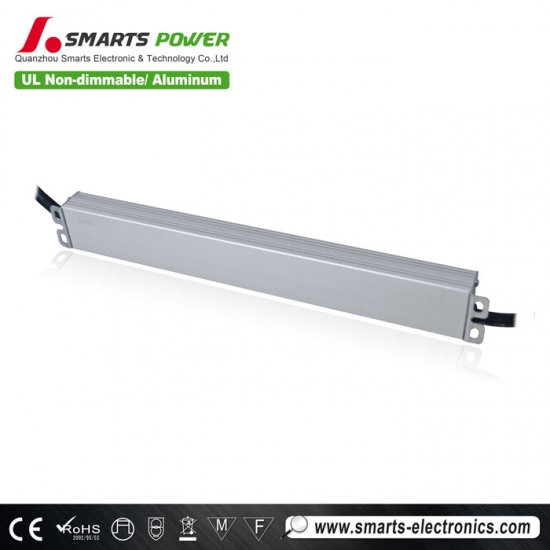

277vac 12v 36w slim led power supply for led strip


It is a 12Vdc, boosting constant voltage output LED driver for powering high brightness (HB) LEDs. The intended use for lighting driver are applications where the forward voltage of LEDs is greater than the input voltage. With sufficient current the 12v led power supplywill 'Boost' the output voltage to meet the requirements of the LED(s).




  Features


·Output constant voltage type

·Input voltage range 100-277VAC

·UL/cUL listed, Class 2, Class P approval

·Built-in PFC function / Efficiency > 84% / PF> 0.95

·Protections:short circuit/over voltage/over heat

·IP20 design for indoor dry environment installations

·Cooling by free air convection

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty


  Specification


model

SMT-012-036VWSW

SMT-024-036VWSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

3.0Amp

1.5Amp

Rated power

36W

36W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

0.99@120VAC 0.97@230VAC 0.95@277VAC

THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC

Full Load EfficiencyTyp.

82%@120VAC ; 83%@230VAC; 84%@ 277VAC

AC CurrentTyp.

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;

12A,50%480us@277VAC



12A,50%480us@277VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

   Label

277vac 12v 36w slim led power supply for led strip

driver dimmable 277 volt

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top




  Mechanical Specification


waterproof led power supply 12v



  Derating Curve


12 volt driver for led lights



  Connecting Diagram


12 volt dc led driver
