Non-dimmable LED Driver

277v power supply 36v 30W led power supply

Our 277v power supply 36v feature flexible input voltage (100-277VAC) and can be ordered in 12VDC , 24VDC and 36VDC

outputs. These power supplies are rated to run at 80% continuous wattage.

  • item no.:

    SMT-036-030VWSP
  • lead time:

    7 woking days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    paypal, T/T, western union
  • Input Voltage:

    100-277vac
  • Output Voltage:

    36v dc
  • Output Current:

    0.83A
  • Working Mode:

    Constant voltage
  • Certification:

    CE UL ROHS
  • Warranty:

    7 Years
inquiry now
product details

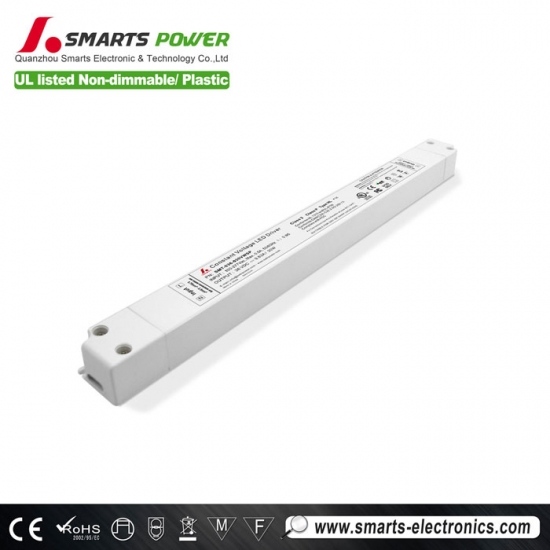

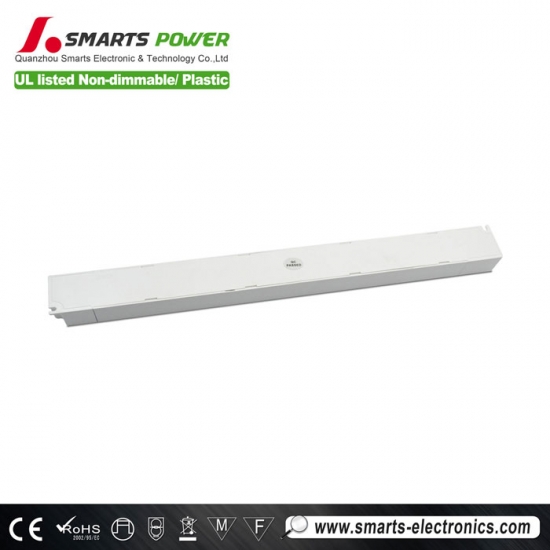

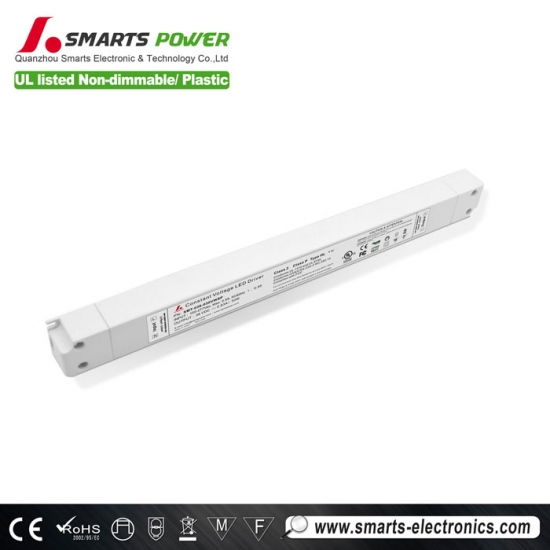

277v power supply 36v 30W led power supply



This 36v led driver, sealed unit that is designed to be ultra slim type. To determine the size driver you will need for your project just add up the watts of the total number of lights required. Don't forget to include any lights you use inside your cabinets. This is the perfect driver for long runs of LED Flex strip and led lights.




Features

·Output constant voltage type

·Input voltage range 100-277VAC

·UL/cUL listed, Class 2, Class P approval

·Built-in PFC function / Efficiency > 84% / PF> 0.95

·Protections:short circuit/over voltage/over heat

·IP20 design for indoor dry environment installations

·Cooling by free air convection

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty



Specification:

model

SMT-012-030VWSP

SMT-036-030VWSP

Output

DC Voltage

12VDC

36VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC

Full Load Efficiency(Typ.)

82%@120VAC ; 83%@230VAC; 84%@ 277VAC

AC Current(Typ.)

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;

12A,50%480us@277VAC



12A,50%480us@277VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.20Kg

Size

260*32*18mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.



Mechanical Specification:

30w led power supply

Ø Input with Live Wire(L)  Neutral Wire (N)

Ø Output terminals "Red" to LED Positive side (+)  and  "Black"  to LED Negative side (-).




30w led power supply
