700ma Triac Dimmable LED Power Driver Transformer Circuit for LED Lights

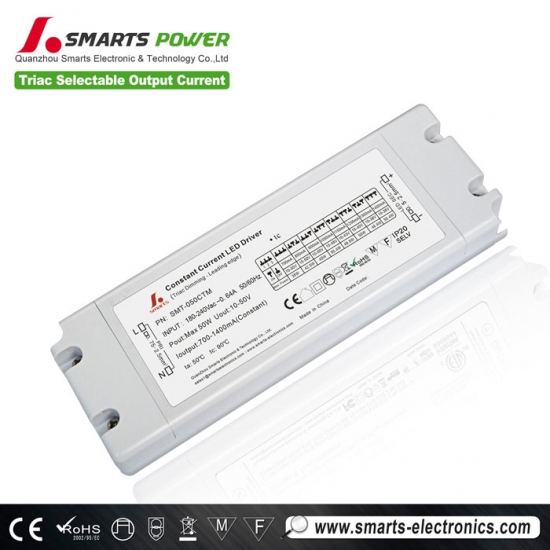

SMT-050CMT is a dimmable led driver transformer with multi-stage constant current output; allowing a single unit to be used for applications with potential for multiple current levels, such as project style lighting designs. The current levels, 700mA, 850mA, 900mA, 1050mA, 1150mA & 1250mA,1300mA,1400mA, are easily switched by adjusting the built-in DIP switch. and was designed to work with leading edge TRIAC dimmers, such as Lutron, C-BUS, Clipsal etc..
|
Model |
SMT-050CTM |
||||||||||
|
Output |
Rated current |
1400mA |
1300mA |
1250mA |
1150mA |
1050mA |
900mA |
850mA |
700mA |
||
|
Current Tolerance |
±5% |
||||||||||
|
DC Voltage |
10-36V |
10-38V |
10-40V |
10-43V |
10-48V |
10-50V |
10-50V |
10-50V |
|||
|
Rated power |
50.4W |
49.4W |
50W |
49.45W |
50.4W |
45W |
42.5W |
35W |
|||
|
Input |
Rated Input Voltage |
170-265VAC |
|||||||||
|
Rated Frequency: |
47-63HZ |
||||||||||
|
Power Factor |
PF≥0.65/170VAC PF≥0.65/230VAC PF≥0.65/240VAC(Full loading) |
||||||||||
|
Full Load Efficiency(Typ.) |
81% |
81% |
81% |
81% |
81% |
82% |
82% |
82% |
|||
|
AC Current(Max.) |
0.96A |
0.94A |
0.95A |
0.94A |
0.96A |
0.85A |
0.80A |
0.66A |
|||
|
Leakage current |
<0.50mA |
||||||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|||||||||
|
Output No-Load Voltage |
52-60V |
||||||||||
|
Over Load |
≤120% |
||||||||||
|
Protection Class: |
II |
||||||||||
|
Environ- ment |
Working TEMP. |
-40-+60℃ |
|||||||||
|
Working Humidity |
20-95%RH,non-condensing |
||||||||||
|
Storage TEM. Humidity |
-40-+80℃,10-95%RH |
||||||||||
|
TEMP. coefficient |
±0.03%/℃(0-50℃) |
||||||||||
|
Vibration |
10-00Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||||||||
|
Safety & EMC |
Safety standards |
UL8750+UL1310 |
|||||||||
|
Withstand voltage |
I/P-O/P:1500KVAC |
||||||||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||||||||
|
EMC EMISSION |
EN55015, EN61000-3-2,3 (>50% load) |
||||||||||
|
EMC IMMUNITY |
FCC Part 15 B |
||||||||||
|
Others |
Weight |
0.32Kg |
|||||||||
|
Size |
178*61*24mm(L*W*H) |
||||||||||
|
packing |
outside carton: 290*215*240mm 20PCS/CTN G.W: 7.5KG/CTN |
||||||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . |
||||||||||
Mechanical Specification for triac led driver
Ø Input with Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
Ø Suggested wire diameter:Input 18-14AWG; Output: 20-14AWG
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Derating Curve for led driver 700ma
Triac Dimmable LED Driver Connection Diagrams
