300ma-1400ma triac dimmable constant current led driver power supply 40w for led strip


constant current led driver 300ma
constant current led driver 300ma constant current led driver 300ma constant current led driver 300ma constant current led driver 300ma constant current led driver 300ma constant current led driver 300ma

300ma-1400ma triac dimmable constant current led driver power supply 40w for led strip

The new smarts 40W multi-current dial-up led power supply has a 7-year warranty, an input voltage of 100-277vac, has passed UL certification, and is very popular in North America

  • item no.:

    SMT-M-040CT

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Voltage:

    3~65vdc

  • Output Current:

    300mA-1400mA

  • Working Mode:

    Constant current

  • Certification:

    UL ROHS

  • Warranty:

    7 years
inquiry now
product details

300ma-1400ma triac dimmable constant current led driver power supply 40w for led strip

The triac dimmable series multi-current dial code power supply has passed the input voltage of 100-277 and the output current of 300ma-1400ma, which can be well matched with the lamps on the market for flicker-free dimming

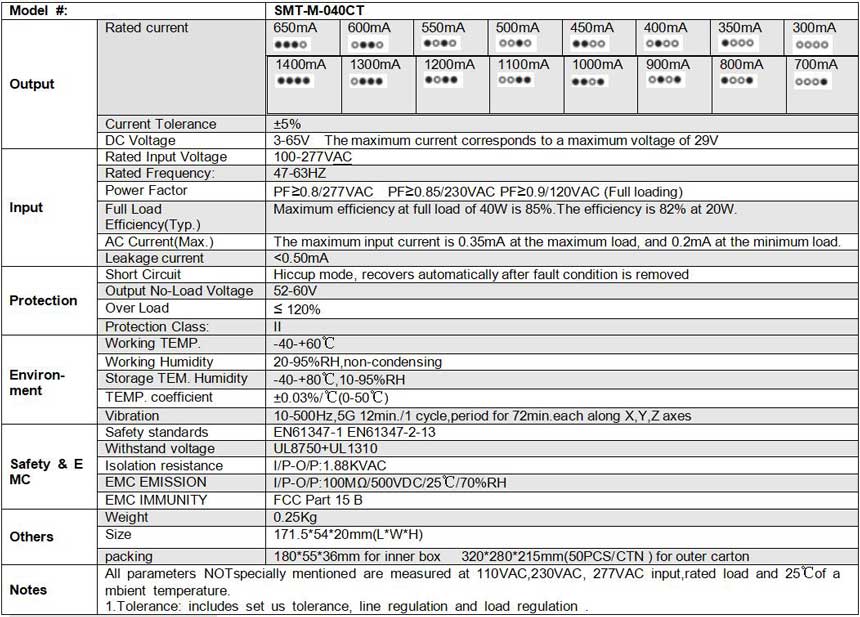

  Specification


led power supply 40w

Click Send Email for Details
 Click skpye 24 hours Online Reply
 Scan to start our communication
Back to top

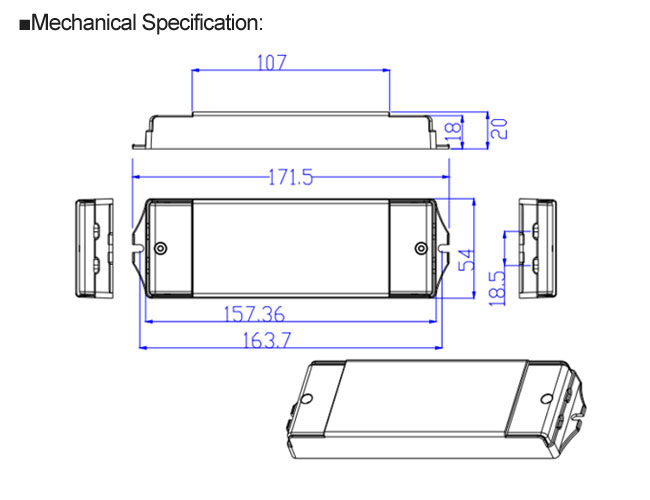

  Mechanical Specification

led power supply 40w



※Input terminals "Black" and "White" to connect to AC L and N.

※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be

damaged




  Dimming operation

led power supply 40w


  Related Products

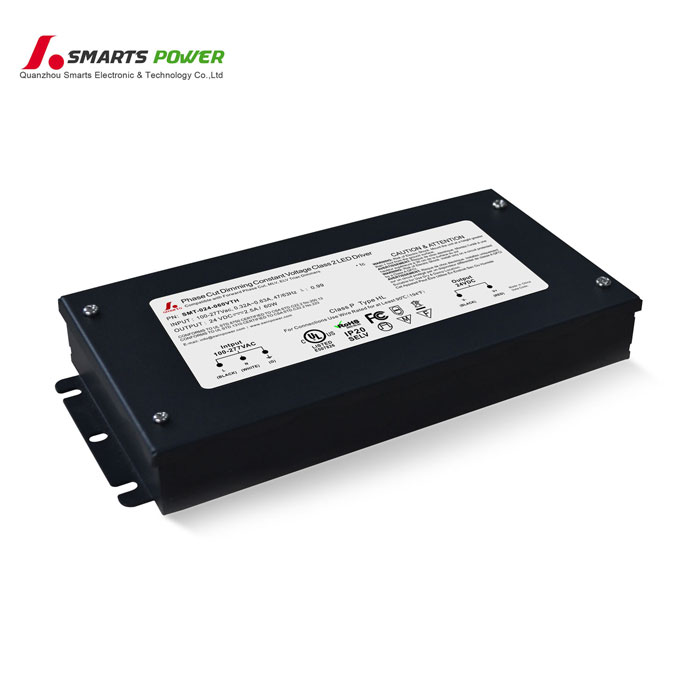

triac dimmable power supply for led stripSmarts this triac dimmable led driver, the led driver and wire are assembled in a metal box, which can well protect the power supply from being squeezed and deformed by external forces.
