8w constant current IP20 0-10v dimming 350ma led driver
The constant current dimming driver from the CDH series by SMARTS is a 0-10V dimming 8 watt constant current LED driver with excellent power factor operating at 220 VAC input. It is suitable for luminaire installation as well as independent mounting. The ouput current is constant with 350ma.

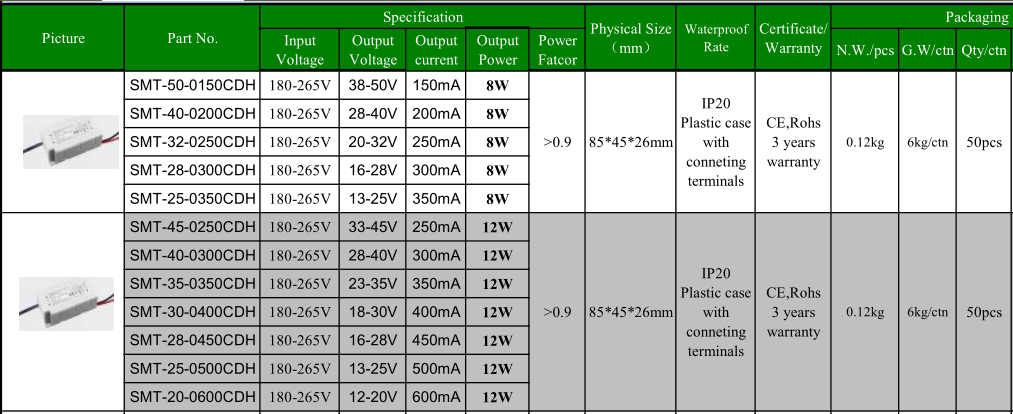

Specification
|
Model |
SMT-50-0150CDH |
SMT-40-0200CDH |
SMT-32-0250CDH |
SMT-25-0350CDH |
||
|
Output |
DC Current |
150mA |
200mA |
250mA |
350mA |
|
|
Current Accuracy |
±3% |
|||||
|
Voltage Range |
38-50V |
28-40V |
20-32V |
13-25V |
||
|
Rated power |
8W |
8W |
8W |
8W |
||
|
Input |
Voltage Range |
180～265VAC |
||||
|
Frequency Range |
47～63HZ |
|||||
|
PF(Typ.） |
PF>0.9 |
|||||
|
Full Load Efficiency（Typ） |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
||
|
AC Current (Typ.） |
0.104A(110V) 0.106A(220V) |
0.102A(110V) 0.103A(220V) |
0.102A(110V) 0.103A(220V) |
0.101A(110V) 0.103A(220V) |
||
|
Leakage current |
<0.72mA/110VAC / ﹤0.75mA/220VAC |
|||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
Over Current |
≦1.4*Iout |
|||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||||
|
Environment |
Working TEMP. |
-40～+50℃ |
||||
|
Working Humidity |
20～95%RH,non-condensing |
|||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP20 |
||||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
|||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
|||||
|
Others |
Weight |
0.2Kg |
||||
|
Size |
85*45*26mm（L*W*H） |
|||||
|
packing |
320*280*215mm/50pcs /CTN 145*50*36mm for inner box |
|||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||
 |
 |
 |
 |
What is a Constant Current LED Driver?
Constant current LED drivers are designed for a designated range of output voltages and a fixed output current (mA). LEDs that are rated to operate on a constant current driver require a designated supply of current usually specified in milliamps (mA) or amps (A). These drivers vary the voltage along an electronic circuit which allows current to remain constant throughout the LED system. take this 350ma led driver as an example, its a constant curent led driver with output current 350ma and voltage range 13-25v.
The higher wattage in constant current led driver avaliable
