Non-dimmable LED Driver

96W 24VDC outdoor waterproof ip67 slim led power supply

This series of ultra slim constant voltage led driver has 12v, 24v, 36v and 48v for selection. The wattage from 30 watt to 100 watt and has got UL certificated.
  • item no.:

    SMT-024-096VWSW
  • lead time:

    4-7 working days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    EXW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    248VDC
  • Output Current:

    4 Amp
  • Working Mode:

    constant voltage
  • Certification:

    UL,CE,ROHS
  • Warranty:

    7 years
inquiry now
product details

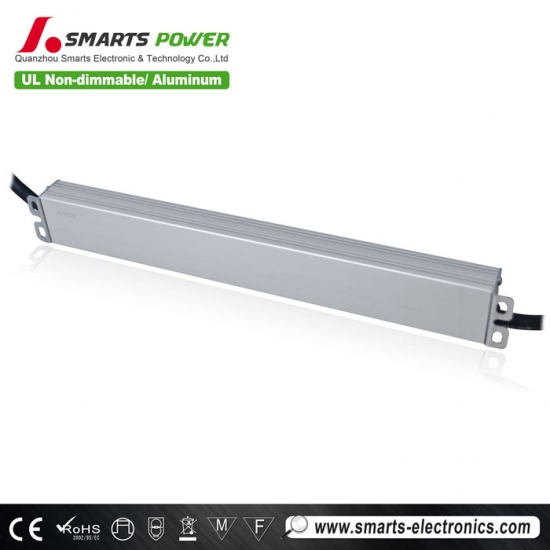

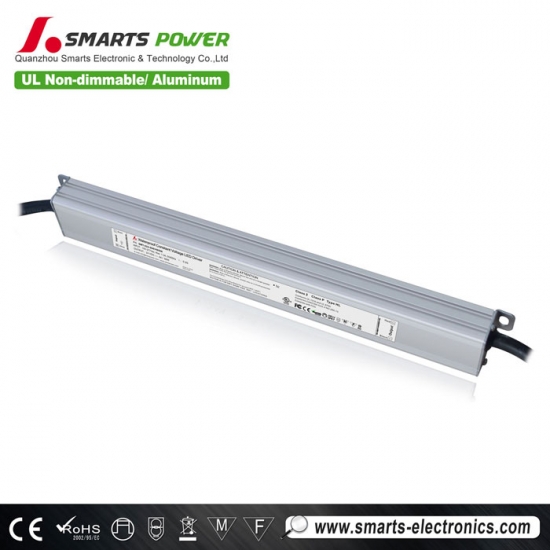

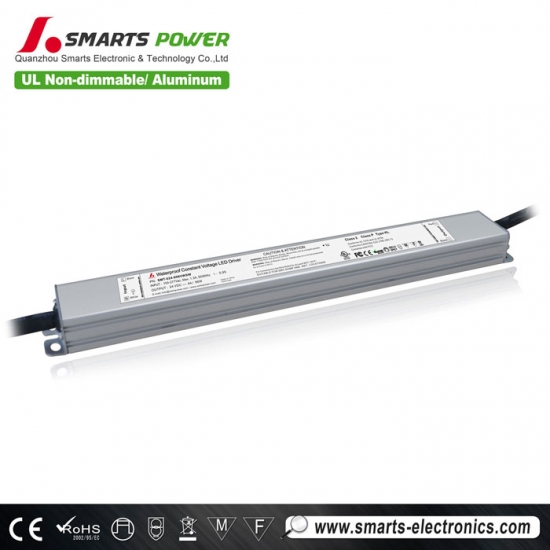

96W 24VDC outdoor waterproof ip67 slim led power supply


SMARTS launched a new series ultra slim constant voltage type led driver which is easy to be installment.  Compliance to worldwide safety regulations for lighting. Suitable for LED lighting and moving sign applications


 Features


  • Output constant voltage type
  • Input voltage range 100-277VAC

  • UL/ cUL listed, Class 2, Class P, CE, ROHS approval

  • Built-in PFC function / Efficiency > 83% / PF> 0.99

  • Protections:short circuit/over voltage/over heat

  • Full protection aluminum housing, for dry, damp, wet location

  • Suitable for LED lighting and moving sign applications

  • Compliance to worldwide safety regulations for lighting

  • 7 years warranty


 Mechanical Specification



   led power supply 100w


 Driver specification




Input Voltage Range
100-277VAC
Input Frequency
47-63Hz
Input Current

0.75A/100VAC  /  0.2A/277VAC


Inrush Current(Typ.


7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC


Leakage current


<0.5mA/110VAC; ﹤0.2mA/277VAC


Efficiency
>83%
Power Factor
>0.99
Output Voltage
24vdc
Output Current 4a

Voltage Regulation


±0.5%


Load Regulation


±1%


Over Current Protection
Yes
Over Voltage Protection
Yes
Over Temperature Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
  Label   96W 24VDC outdoor waterproof ip67 slim led power supply
