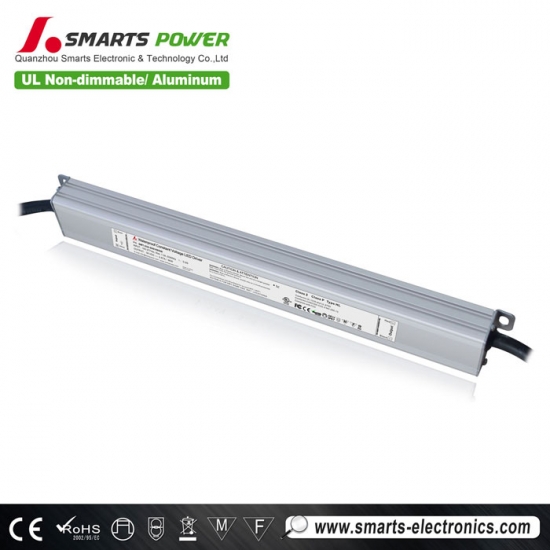

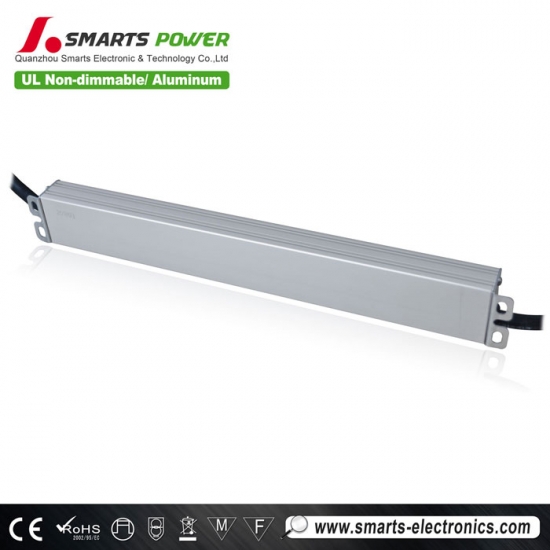

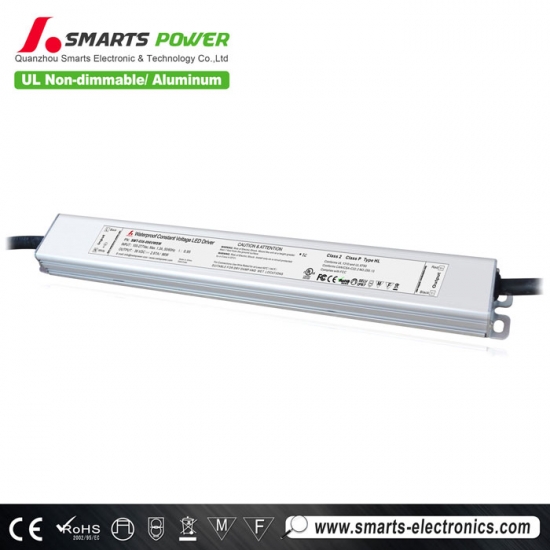

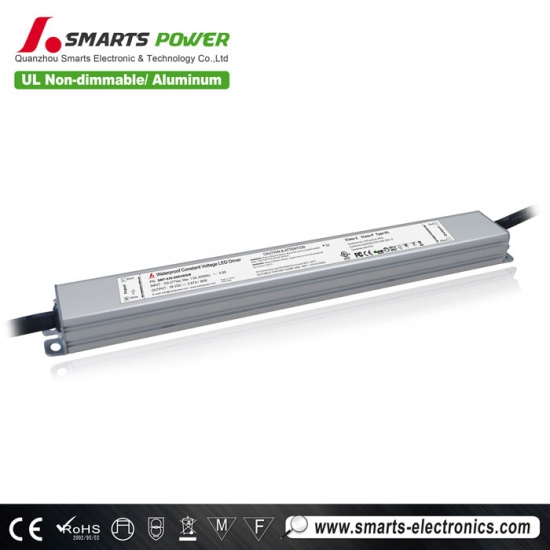

Non-dimmable LED Driver

277vac to 36 volt 96 watt ul listed electronic power supply for led

SMARTS's SMT-036-096VWSW LED Driver is the perfect choice for use in Hospitals, Schools, and Shopping Malls or for any commercial application that 277V is present.
  • item no.:

    SMT-036-096VWSW
  • lead time:

    4-7 working days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    EXW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    36VDC
  • Output Current:

    2.6amp
  • Working Mode:

    constant voltage
  • Certification:

    UL,CE,ROHS
  • Warranty:

    7 years
inquiry now
product details

277vac to 36 volt 96 watt ul listed electronic power supply for led

Non-Dimming LED Drivers are compatible with most 12V and 24V LED light systems. These drivers perform the basic necessary function for outdoor applications.Suitable for signage, cove lighting, and other lighting applications where flexible loading is required.




 Features


  • Output constant voltage type
  • Input voltage range 100-277VAC

  • UL/ cUL listed, Class 2, Class P, CE, ROHS approval

  • Built-in PFC function / Efficiency > 83% / PF> 0.99

  • Protections:short circuit/over voltage/over heat

  • Full protection aluminum housing, for dry, damp, wet location

  • Suitable for LED lighting and moving sign applications

  • Compliance to worldwide safety regulations for lighting

  • 7 years warranty

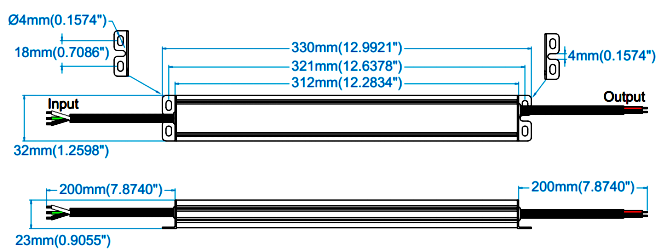

   Mechanical Specification






   Driver specification




Input Voltage Range
100-277VAC
Input Frequency
47-63Hz
Input Current

0.75A/100VAC  /  0.2A/277VAC


Inrush Current(Typ.


7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC


Leakage current


<0.5mA/110VAC; ﹤0.2mA/277VAC


Efficiency
>83%
Power Factor
>0.99
Output Voltage
36vdc
Output Current
2.6a

Voltage Regulation


±0.5%


Load Regulation


±1%


Over Current Protection
Yes
Over Voltage Protection
Yes
Over Temperature Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
