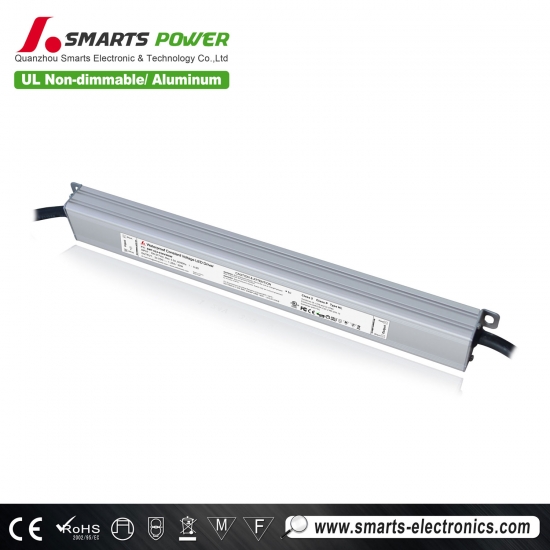

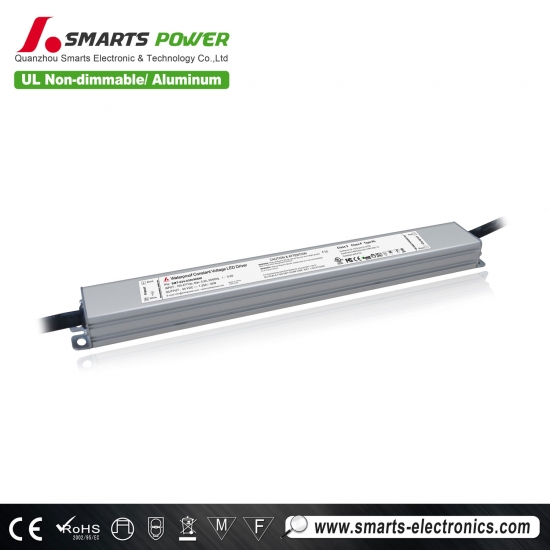

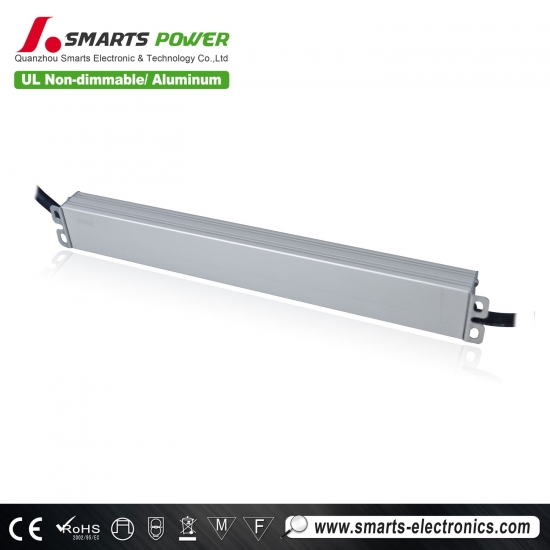

CE listed 230v ip67 constant voltage led strip driver
SMARTS provides a leading range of top quality compact constant voltage LED drivers to deliver outstanding lighting performance and functionality even in confined spaces.
Product specification
|
model |
SMT-012-030VWSW |
SMT-024-030VWSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±1% ±1% |
|
|
Input |
Voltage Range |
100-277 VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
0.99@120VAC 0.98@230VAC 0.95@277VAC |
|
|
|
THD(Typ.)@ full load |
<15%@120VAC <20%@230VAC <20%@277VAC |
|
|
|
Full Load Efficiency（Typ.） |
82%@120VAC ; 83%@230VAC; 84%@ 277VAC |
|
|
|
AC Current（Typ.） |
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
12A,50%480us@277VAC |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
