Non-dimmable LED Driver

American hot sale switching power supply 12v 2.5A led transformer 30w led driver

Input 110-277V - For Constant Voltage Products Only ,give 7 years warranty
  • item no.:

    SMT-012-030VWSP
  • lead time:

    about 7 days after payment
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen,shenzhen
  • payment:

    T/T,Paypal,westen union
  • market price:

    $11
  • color:

    black
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12VSC
  • Output Current:

    2.5
  • Working Mode:

    constant voltage type
  • Certification:

    CE
  • Warranty:

    7 years
inquiry now
product details

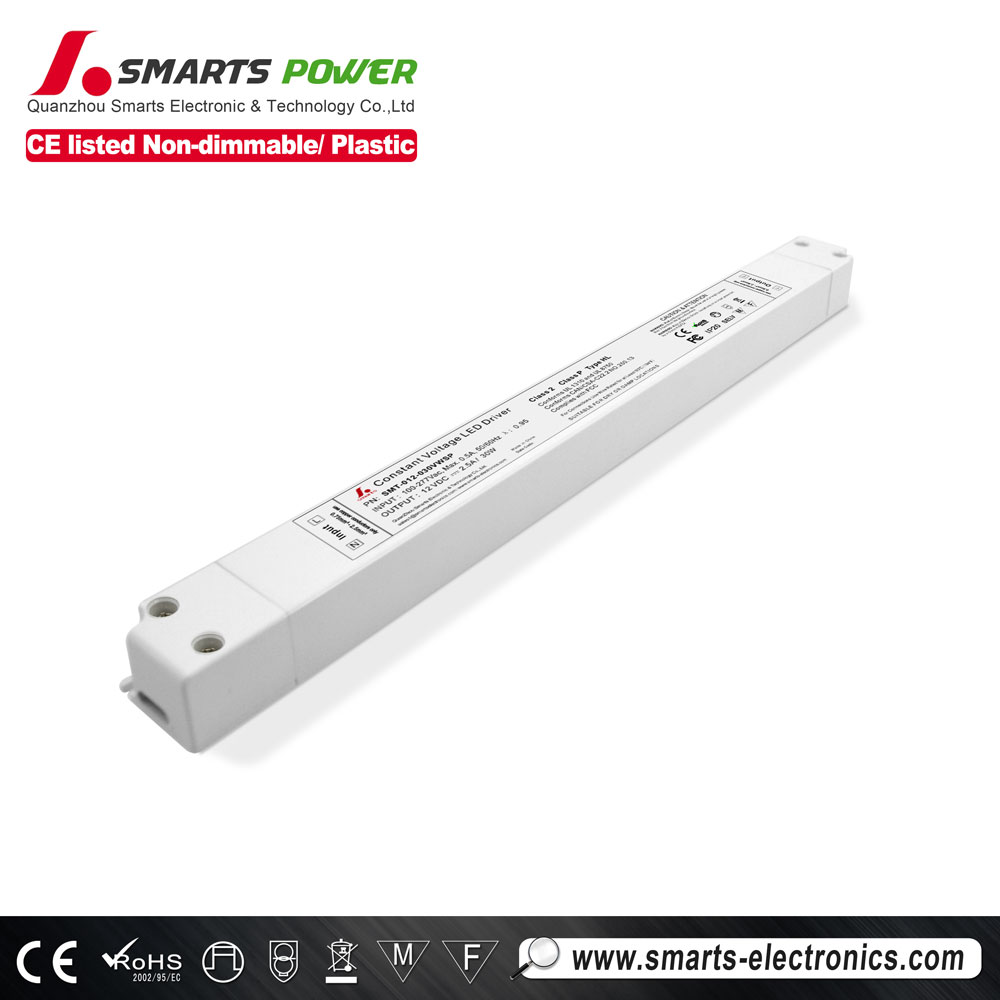

The American hot sale switching power supply 12v 2.5A  is reliable, long-lasting and versatile. With a long-lasting life rating at 60,000 hours, this driver can be used to run back-lit ad signs, architecture lighting, landscape lighting and even more.

Features:

·Output constant voltage

·Input voltage range 110-277VAC

·CE ROHS listed, Class 2, Class P approval

·Built-in PFC function / Efficiency > 88% / PF> 0.98

·Protections:short circuit/over voltage/over heat

·IP20 design for indoor dry or damp environment installations

·Cooling by free air convection

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty

led driver adapter




Specification

model

SMT-012-030VWSP

SMT-024-030VWSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.99@120VAC 0.98@230VAC 0.95@277VAC

THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC

Full Load Efficiency(Typ.)

82%@120VAC ; 83%@230VAC; 84%@ 277VAC

AC Current(Typ.)

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;

12A,50%480us@277VAC



12A,50%480us@277VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

 ■ Mechanical Specification

277v led driver constant voltage

※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Output: Red is(Possitive side +),Black is(Negative side -)



■Derating Curve



l Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life



■Connecting Diagram
