Non-dimmable LED Driver

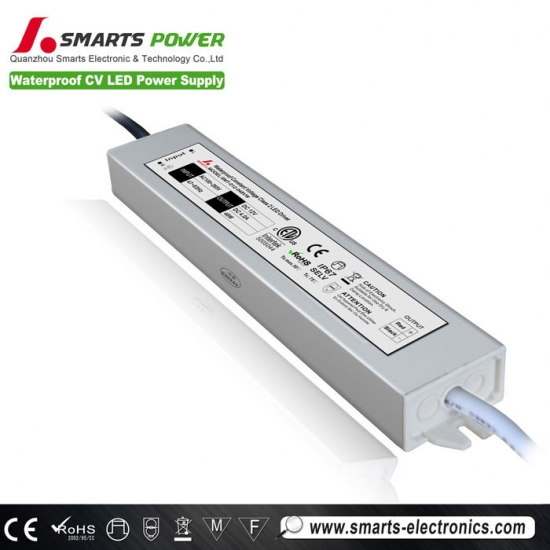

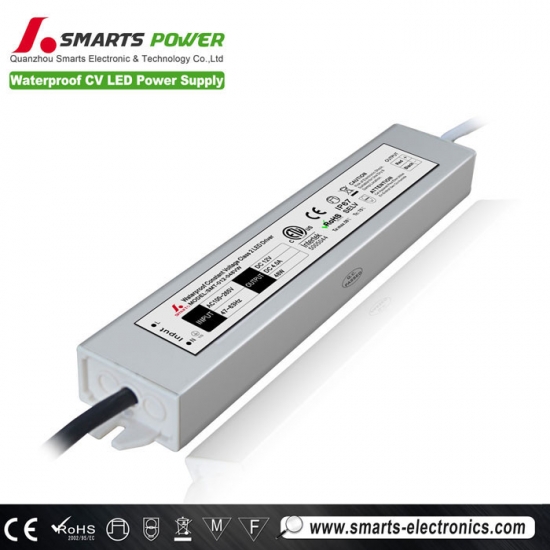

12v 4a slim power supply 48w for bathroom LED mirror

12v 4a slim power supply 48w for bathroom LED mirror is a water-proof power supply with a maximum capacity of 48 Watt (4A), which comes with single output with wire (RED+/Black-), this product can be used with any constant -voltage 12v LED luminaries.
  • item no.:

    SMT-012-048VW
  • lead time:

    7 working days for sample order
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, western union, paypal, credit card
  • Input Voltage:

    100-265vac
  • Output Voltage:

    12vdc
  • Output Current:

    4a
  • Working Mode:

    48w
  • Certification:

    CE & ETL
  • Warranty:

    2 years
inquiry now download
product details

12v 4a slim power supply 48w for bathroom LED mirror


12v 4a slim power supply 48w for bathroom LED mirror is a water-proof power supply with a maximum capacity of 48 Watt (4A), which comes with single output with wire (RED+/Black-), this product can be used with any constant -voltage 12v LED luminaries.


 SPECIFICAION
MODEL SMT-012-048VW SMT-024-048VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 4.0A 2.0A
CURRENT RANGE 0~4.0A 0~2.0A
RATED POWER 48W 48W
RIPPLE&NOISE(max) 120mVp-p 200mVp-p
voltage TOLERANCE 12V±5% 24V±5%
SETUP RISE TIME 60ms/110VAC 60ms/110VAC
HOLD UP TIME(Typ.) 20ms/230VAC 10ms/110VAC
INPUT VOLTAGE RANGE 100~265Vac 100~265Vac
FREQUENCY RANGE 50~60Hz 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥83% ﹥84%
AC CURRENT(Typ.) 0.45A/110V, 0.25A/220V 0.45A/110V,0.25A/220V
INRUSH CURRENT (Typ.) COLD START 30A/110~220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@110%~150% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -25~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~90% RH non condensing, refer to IP67
Vibration 10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
WITHSTAND VOLTAGE I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
EMC Test Standards EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
MTBF 50KHours (25℃)
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25 of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 Label  water-proof power supply


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver

 Features

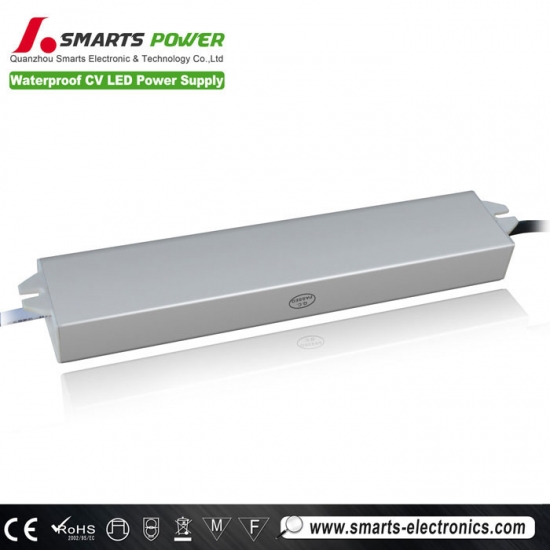

Aluminum case 12v 4a slim power supply 48w
Single channel output, output current level selectable.
Wide range of input voltage 100VAC ~ 265VAC
High efficiency > 83%
Built-in active PFC function
Protections: Short circuit,over load, over voltage & over temperature protections
Suitable for indoor and outdoor LED lighting application
OEM is welcome.
Sample fee: negotiable, sample can be supplied in 7 days.
High quality, complete kinds, good stability, strong practicability.
Good after-sales service & point to point technical supports.
Energy saving, long using life.

Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.


 Specification


Model : SMT-012-048VW
Power Output - 48W
Class of tightness - IP67 (waterproof)
Input voltage - 100-265VAC
Output voltage - 12V
Output - 4A
Dimensions: Length 220mm, width 40mm, height 22mm
Working Temperature : -25 ° C to + 50 ° C
Overload protection - 115 ~ 150% output nom.mocy
automatic return to normal operation after the disappearance of overload
Short circuit protection - Automatic return to normal operation after reducing the voltage on the output lines
Over temperature protection - Cutting off the output voltage
Certificates: ETL, RoHs, CE
Weight: 300g

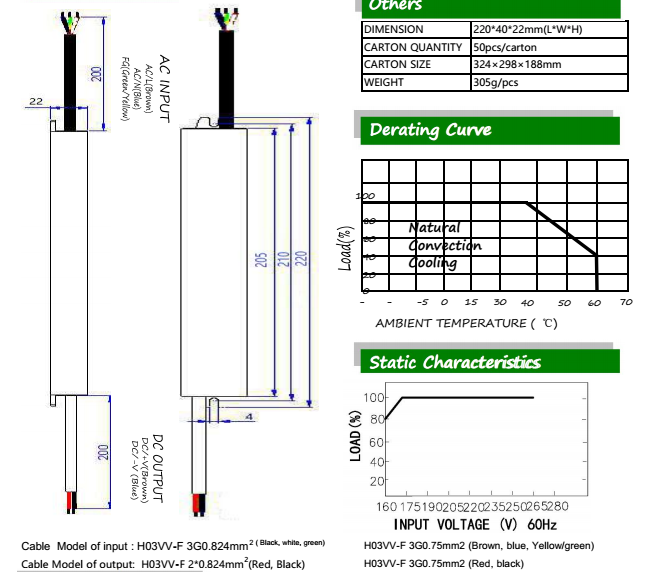

 Mechanical Specification


slim power supply 48w
