Specifications:
- Modle: SMT-012-060VP
- Input:100~240vAC / 47-63HZ
- Output :12V @5A 60W
- Energy transfer: AC-DC
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Plastic housing
- Waterproof rate: IP20
- DC connector:5.5*2.1*10mm
- CE, ROHS approval
- DC cord:1.2m EU standard cord with male plug
- 18 months warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment:
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Parameter:
| ITEM NO | Input Voltage(vAC) | Frequency range(Hz) | Output voltage(vAC) | output Current(A) | output Power(W) | Working Temp('C) |
| SMT-012-060VP | 100-240vAC | 47-63Hz | 12V | 5.0A | 60W | -20-50'C |
| SMT-024-060VP | 100-240vAC | 47-63Hz | 24V | 2.5A | 60W | -20-50'C |

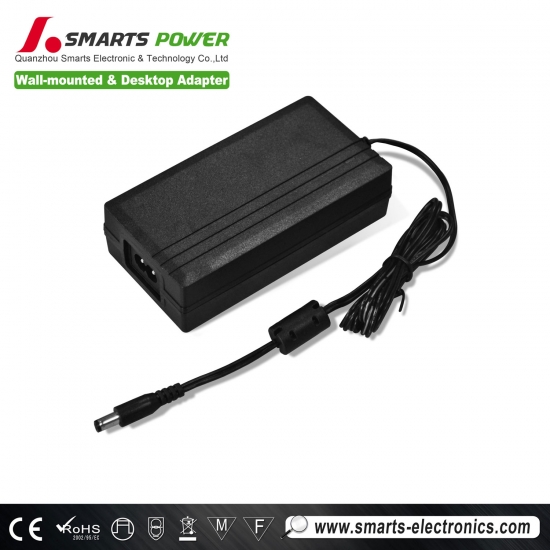

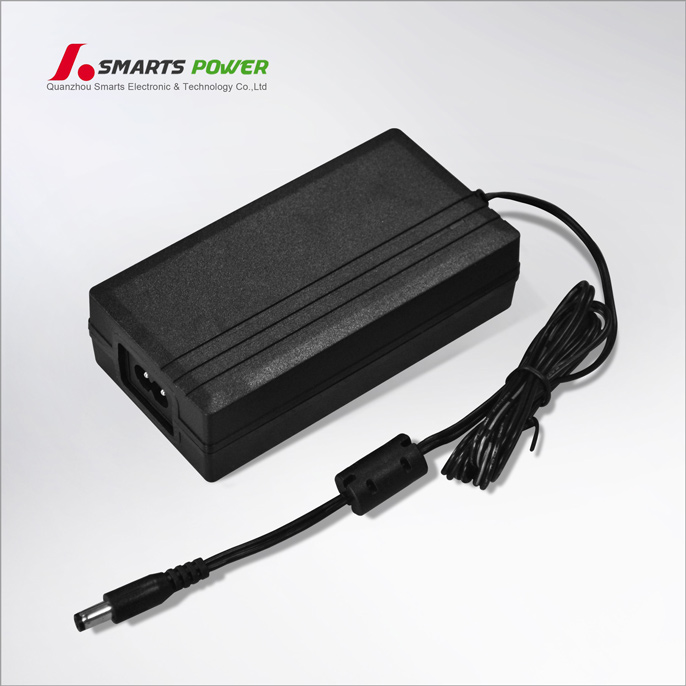

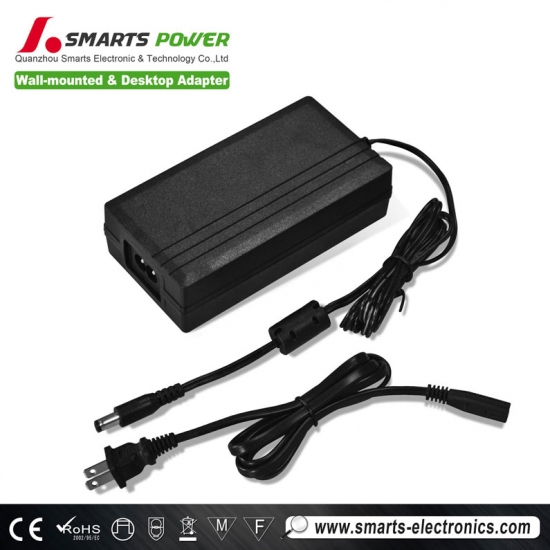

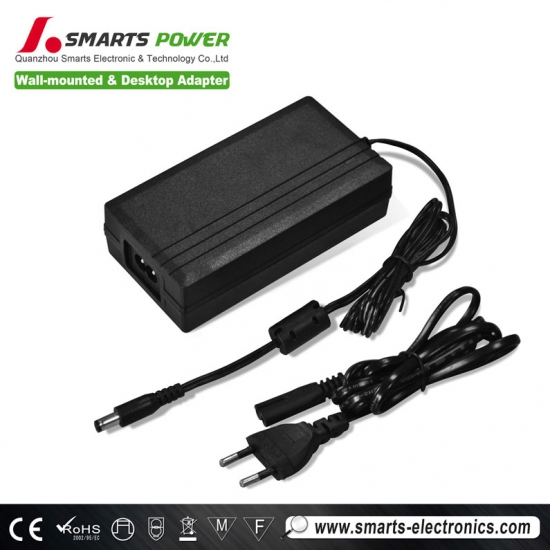

220v to 12v 5a 60w AC to DC Adapter line for 3528 5050 LED
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with CE/Rohs approval
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website: www.smarts-electronics.com
our Team
certificates:
Our service & FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
