ac dc 10 watt 12 volt 12watt outdoor led driver

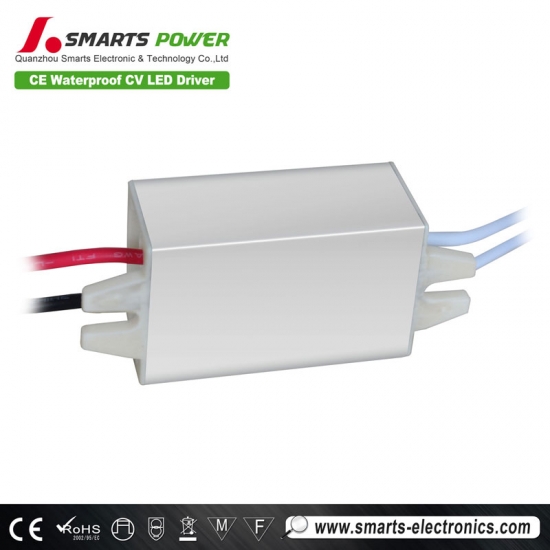

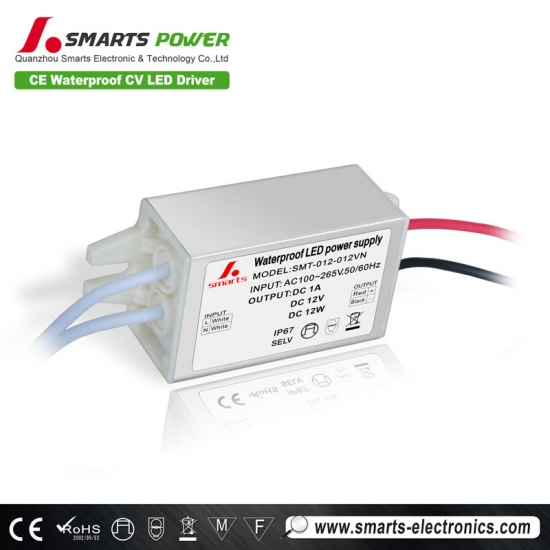

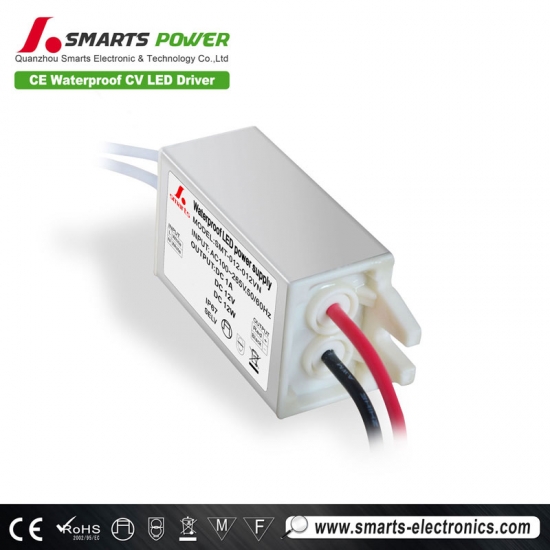

SMT-012-012VN is driver led 10 watt 12 volt. It is non-dimmable constant voltage ac to dc led driver power supply. It is waterproof IP67 verison, can be used indoor and outdoor projects.
Specifications for driver led 10 watt 12 volt
MODEL
SMT-012-012VN
SMT-024-012VN
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
1A
0.5A
CURRENT RANGE
0~1A
0~0.5A
RATED POWER
12W
12W
RIPPLE&NOISE(max)
<700mV
<400mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
INPUT
VOLTAGE RANGE
90~265VAC
FREQUENCY RANGE
47~63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>81%
>81%
AC CURRENT(Typ.)
0.20A @110VAC / 0.099A@220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
NOTE
1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label

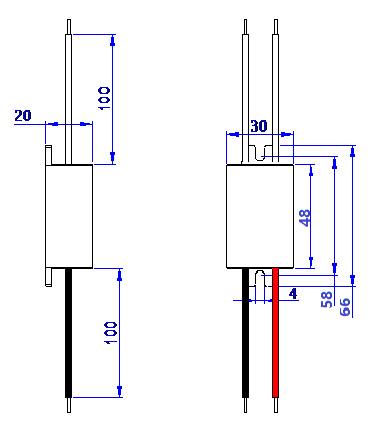

Mechanical Specification for driver led 10 watt 12 volt
DC/+V(Red)
DC/-V (Black)
Derating Curve for driver led 10 watt 12 volt
--Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
