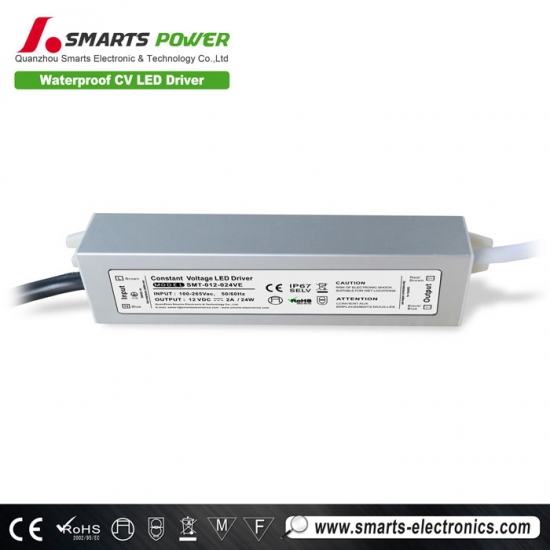

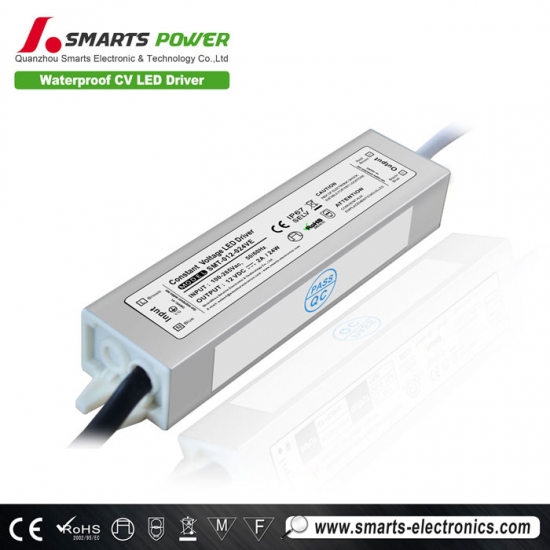

220vac 12v 24v 24w constant voltage ip67 led driver for led strip
Smarts 12v 24w ip67 led driver could be match flood light,module,strip light,downlight with aluminum outercase IP67 could be used in indoor and ourdoor location. such as Birddog Lighting led strip 16.4 Feet.
Specification
| SPECIFICAION | |||
| MODEL | SMT-012-024VE | SMT-024-024VE | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 2.0A | 1.0A | |
| CURRENT RANGE | 0-2.0A | 0-1.0A | |
| RATED POWER | 24W | 24W | |
| RIPPLE&NOISE(max) | <400mV | ||
| VOLTAGE TOLERANCE | ±0.5V | ||
| INPUT | VOLTAGE RANGE | 100-265VAC | |
| FREQUENCY RANGE | 47-63Hz | ||
| POWER FACTOR(Typ.) | no PFC | ||
| EFFICIENCY(Typ.) | 》85% | ||
| AC CURRENT(Typ.) | 0.3A/220VAC | ||
| PROTECTION | Short circuit | Hiccpe mode,recovers automatically after condition is removed | |
| Overload | 2.6A | 1.6A | |
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||
| STORAGE TEMP | -40~+80℃ | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | |||
| NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||
 |
 |
 |
 |
Mechanical Specification
Derating Curve
Application
Smarts SMT-012-024VE led driver for led strip is recommended not to exceed 90% of the capacity of the AC adapter. please calculate your charge before connecting the power. it can work well with

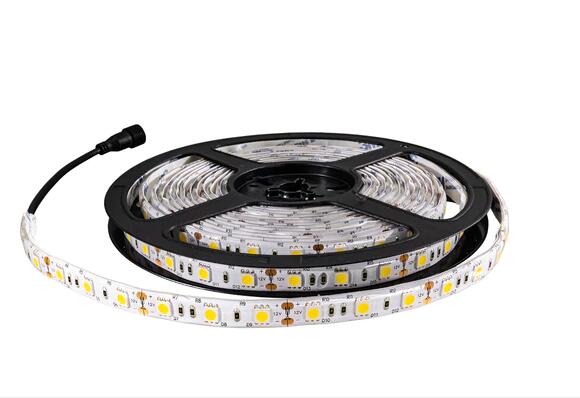

Birddog Lighting led strip 20w.
Related Products

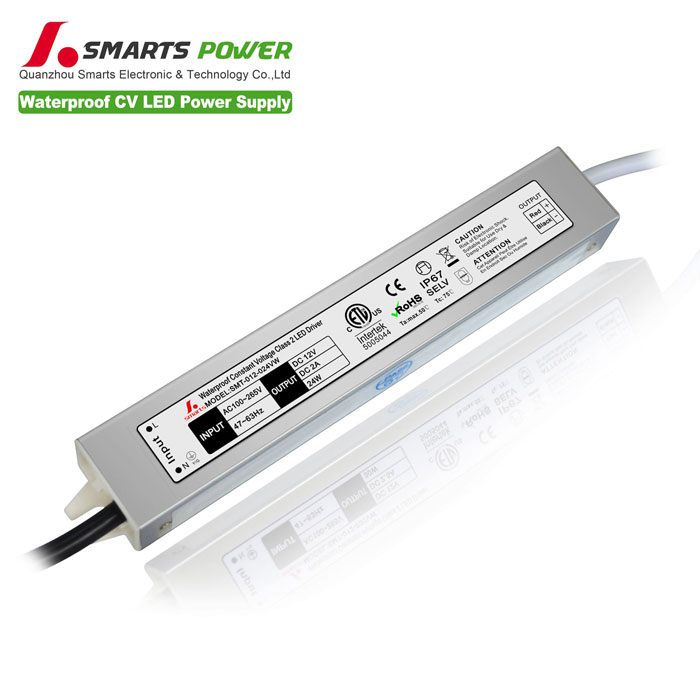

12v 24w waterproof constant voltage led driver, ETL/cETL, CE, ROHS listed, 3 years warranty for led strip indoor and ourdoor project
