Non-dimmable LED Driver

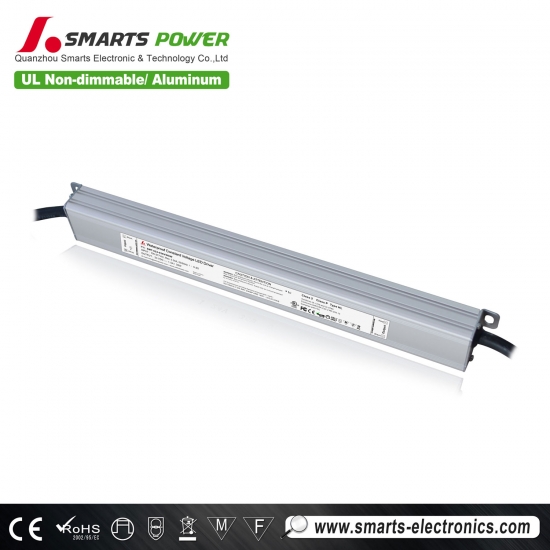

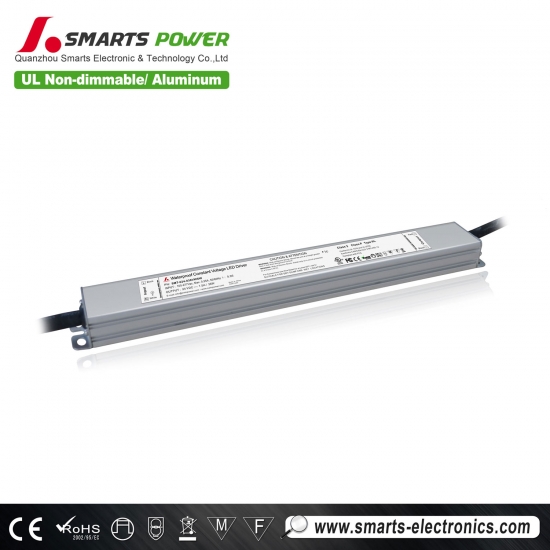

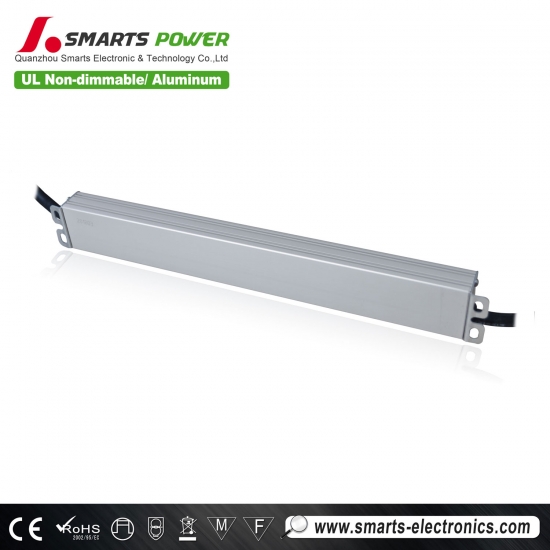

CE listed 220vac to 24vdc 36 watt slim waterproof led driver

Smarts has launched a new series slim led driver which is suitable for your narrow needed project.
  • item no.:

    SMT-024-036VWSW
  • lead time:

    7 working days for sample order
  • product orgin:

    china
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    EXW
  • Input Voltage:

    200-240
  • Output Voltage:

    24VDC
  • Output Current:

    1.5A
  • Working Mode:

    CV
  • Certification:

    CE
  • Warranty:

    7
inquiry now
product details

CE listed 220vac to 24vdc 36 watt slim waterproof led driver


The size of this 24vdc 36w led driver is 263*32*20mm which is really ultra slim. It has high pf 0.95 and high efficiency 84%. It's a kind of waterproof led driver which design for indoor and outdoor dry or damp environment installations.


  Features


  • Output constant voltage
  • Input voltage range 100-277VAC

  • Protections:short circuit/over voltage/over heat

  • Cooling by free air convection

  • Full protection aluminum housing, for dry, damp, wet location

  • Suitable for LED lighting and moving sign applications

  • Compliance to worldwide safety regulations for lighting

  • 7 years warranty

waterproof electronic led driver ip67


model

SMT-012-036VWSW

SMT-024-036VWSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

3.0Amp

1.5Amp

Rated power

36W

36W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

0.99@120VAC 0.97@230VAC 0.95@277VAC

THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC

Full Load EfficiencyTyp.

82%@120VAC ; 83%@230VAC; 84%@ 277VAC

AC CurrentTyp.

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;

12A,50%480us@277VAC



12A,50%480us@277VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.35Kg

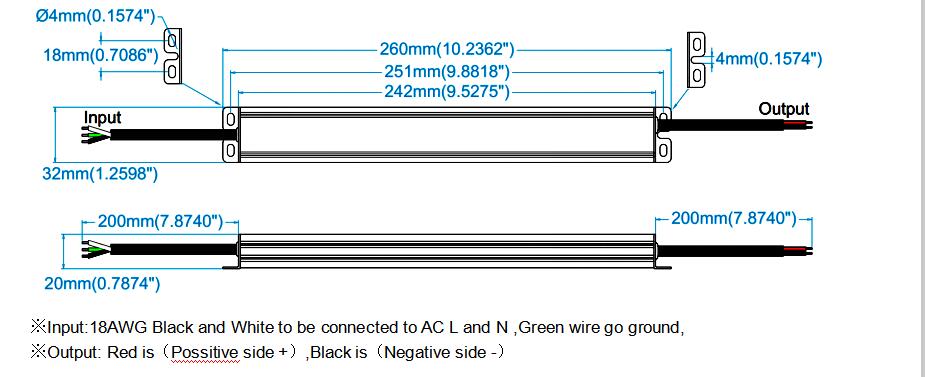

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

  Label

CE listed 220vac to 24vdc 36 watt slim waterproof led driver

slim waterproof led driver
