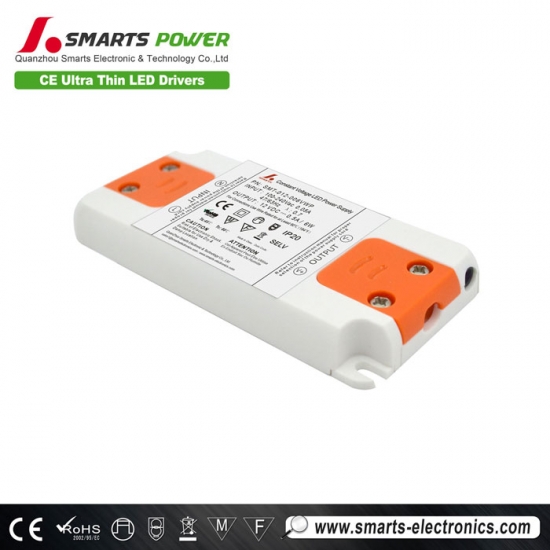

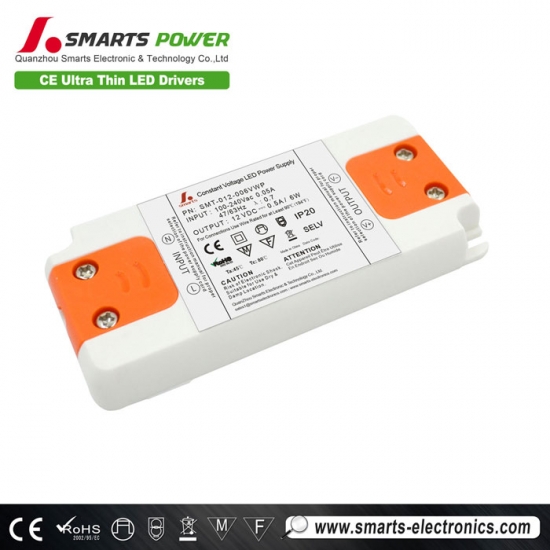

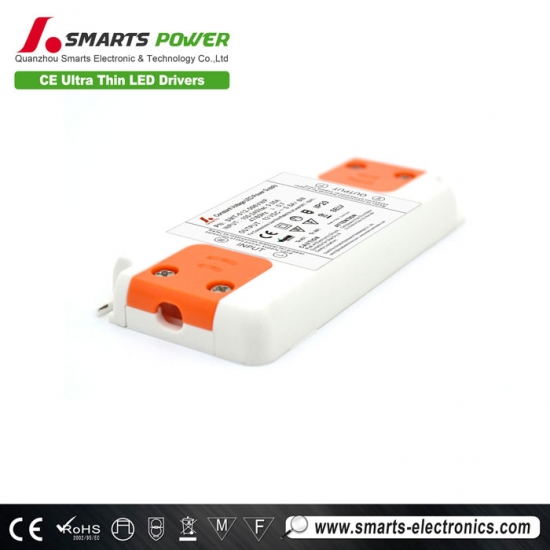

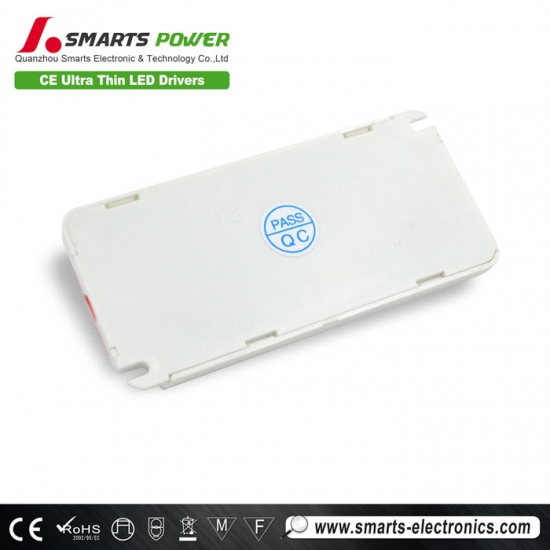

CE ROHS listed mini 12v 6w lighting power supply
The 12v lighting power supply is easy to install and mount with mounting tabs/screw holes on both sides which will make your led lighting work perfect.
|
Feature for mini led power supply
● IP44 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE,RoHS Certification
● 2 years warranty
|
Specification for small led power supply
SPECIFICAION
MODEL
SMT-012-006VWP
SMT-024-006VWP
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
0.5Amp
0.25Amp
VOLTAGE RANGE
0-0.5A
0-0.25A
RATED POWER
6Watt
6Watt
RIPPLE&NOISE(max)
300mV
300mV
VOLTAGE TOLERANCE
±5%
±5%
LINE REGULATION
±1%
±1%
LOAD REGULATION
±2%
±2%
INPUT
VOLTAGE RANGE
100-240VAC
100-240VAC
FREQUENCY RANGE
47-63Hz
47-63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
﹥83%
﹥83%
AC CURRENT(Typ.)
0.0.9A/110VAC, 0.06A/220VAC
PROTECTION
SHORT CIRCUIT
Protection type:recovers automatically after condition is removed
OVER CURRENT
overload protected@145-160% above peak rating
OVER LOAD
1.0A
0.6A
ENVIRONMENT
WORKING TEMP.
-10～+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20～99% RH non-condensing
STORAGE TEMP.,HUMIDITY
-40～+80℃,10～99%RH
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
EN55015;EN61000-3-2;EN61000-3-3;
EN61547;EN61000-4-2,3,4,5,6,8,11;
NOTE
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

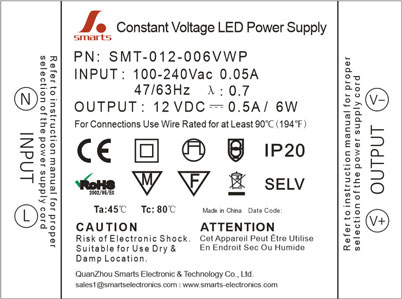

Label
 |
 |
 |
 |
Product size
FAQ:
what is the HS code for this Slim led Power supply
Answer: HS code is 8504401400.
What is the express service do you have for the led power supply?
Answer: DHL UPS FEDEX and TNT.
