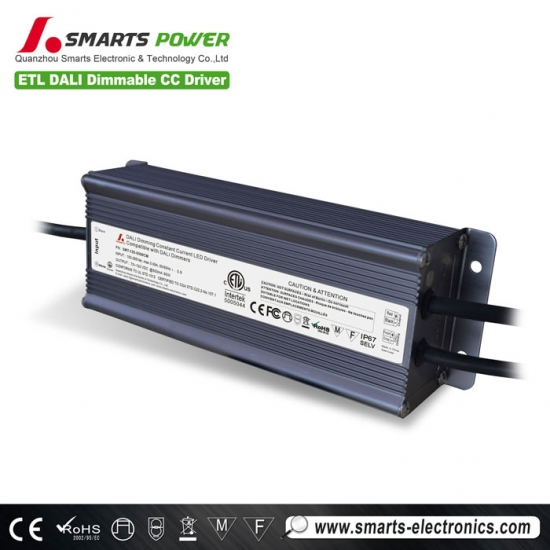

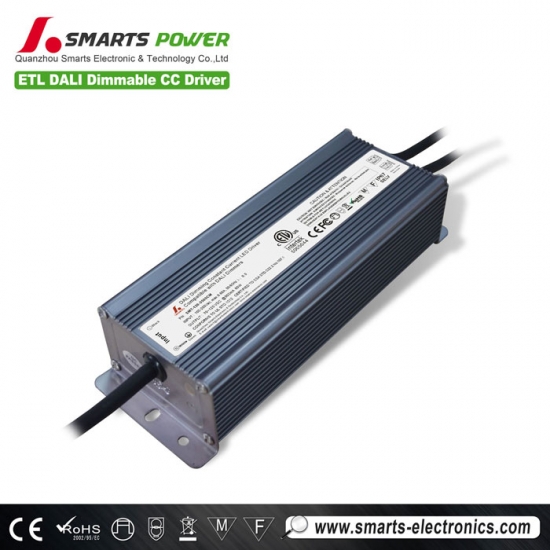

Constant Current 500ma 60W DALI dimming LED driver
Specification
Model
Specification
SMT-040-1400CM
SMT-086-0700CM
SMT-120-0500CM
SMT-070-0900CM
AC inout voltage
100-265VAC
100-265VAC
100-265VAC
100-265VAC
DC output voltage
20-40DC
40-86VDC
70-120VDC
40-70VDC
Output voltage rang)
+/-2%
+/-1%
+/-1%
+/-1%
output current
0-1400mA
0-700mA
0-500mA
0-900mA
Wave and noise
150mVp-p
150mVp-p
150mVp-p
150mVp-p
Inlet stability
+/0.5%
+/0.5%
+/0.5%
+/0.5%
Load stability
+/1%
+/1%
+/1%
+/1%
DC output power
56W
60W
60W
63W
dimming &working mode
DALI dimming constant current type
Setup, Rise Time
500ms, 120ms / 230VAC
Hold Up Time (Typ.)
50ms/100-240VAC
Efficiency &pf
efficency>88% PF>0.9
outer case & IPrate
net weight
1. Protections: Short circuit / Overload / Over voltage / Over temperature.
2. Protection type : Constant current limiting type; Shut down o/p voltage, re-power on to recover.
3. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover.
4. Over Temperature : 85°C±10°C.
environment
1. Working Temperature : -30 ~ +60°C
2. Working Humidity : 20 ~ 90% RH non-condensing
3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min.
each along X, Y, Z axes.
1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
2. Withstand Voltage : I/P-O/P: 3000KVAC
3.Isolation Resistance : I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C )
application
Our products are widely used in various industries, such as
plastic IP40
160 g
protection
Features
safety
certificates
CE(EMC+LVD),ROHS
Label
Features
- High efficiency,save energy ,protected environment.
- Output constant current
- Range 100-265VAC
- Built-in PFC function
- Efficiency > 90%
- Dimming function:DALI with better compatibility
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting applications by PWM output
- Compliance to worldwide safety regulations for lighting
- Suitable for dry/damp/wet locations
Environment
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety
- Safety Standards : EN61347-1 EN61347-2-13 IP40
- Withstand Voltage : I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
- Isolation Resistance : I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
Application
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
