Non-dimmable LED Driver

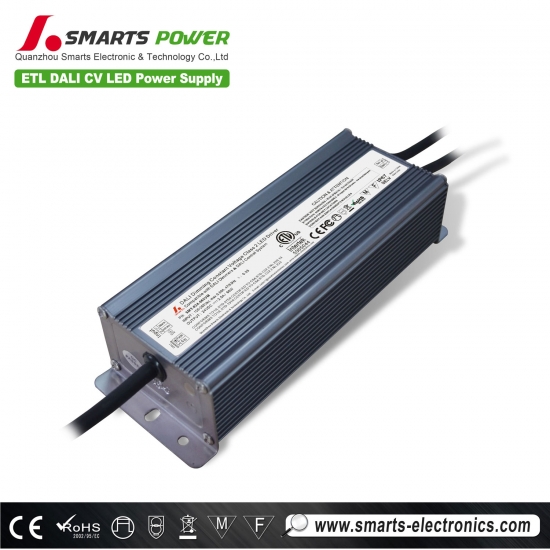

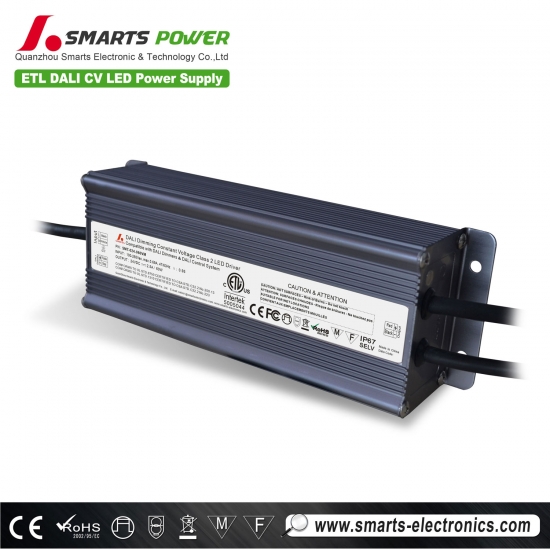

110v to 36v 60w dali dimmable led driver

DALI LED Driver; Constant Voltage LED Driver;36v 60w dimmbale led driver
  • item no.:

    SMT-036-060VM
  • lead time:

    7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-265V
  • Output Voltage:

    60w
  • Output Current:

    1.67A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years warranty
inquiry now
product details
110v to 36v 60w dali dimmable led driver

Model

SMT-012-060VM

 SMT-024-060VM

 SMT-036-060VM

SMT-048-060VM

Output

DC Voltage

12V

24V

36V

48V

Voltage Accuracy

±0.5V

Rated current

5.0A

2.5A

1.67A

1.25A

Rated power

60W

60W

60W

60W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.92/220V ; PF>0.95/220V

Full Load Efficiency(Typ.)

>88%

>88%

>88%

>88%

AC Current(Typ.)

0.960A

1.042A

1.031A

1.031A

Leakage current

<0.70mA/110VAC ; <0.75mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

is removed

Waterproof rate

IP67

Over Current

<1.4*Iout

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level (surge4KV)

Others

Weight

1Kg

Size

210*69*45mm(L*W*H)

packing

355*215*215mm/10pcs/CTN    220*70*50 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


 Feature


--Output constant current

--Range 100-265VAC

--Built-in PFC function, PF>0.95

--Efficiency>89%

--Protections:short circuit/over current/over temperature

--Cooling by free air convection

--IP67 design for indoor or outdoor installation .

--Dimming function:DALI dimmable type

--Suitable for LED lighting applications by PWM output

--Compliance to worldwide safety regulations for lighting

--Suitable for dry/damp/wet locations

--3 years warranty


 60W DALI dimmable driver Mechanical Specification


dimmable dali constant voltage



~~Input Rubber cable  H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

~~Input with Live Wire(L)  Neutral Wire (N)

~~Output LED SEC (LED+),(LED-)

~~Signal Dimming (DA1), (DA2) DALI Non polar!



 Dimming Operation


~~Connect DALI signal cable of driver with DALI cable in Control then dim after controller scan and assign address



  Derating Curve


  dimmable dali constant voltage

~~Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life


 Our led drivers are widely used for


Indoor LED illuminating lights

LED Neon, LED urban Decoration

LED Lighting Advertising,LED Display

Safety Protection Apparatus

Telecommunications, Networks

Vehicle Lights, Controller Panels



 What Service we can supply??


  1. All inquiries will be replied within 24 hours

  2.  Professional manufacturer,welcom to visit our website

  3. OEM/ODM avaliable:
    A.Print logo on our product;
    B. Customized specification;
  4. After Sales-Service:
    A. All products will have 100% burn-in test and strictly quality test before shipping;
    B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  5. High efficiency,long life span,reasonable&competetative price,fast lead time;
  6. We have our engineer team, if you have any question about your LED applications, let us know freely.

 Frequently Asked Questions


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
