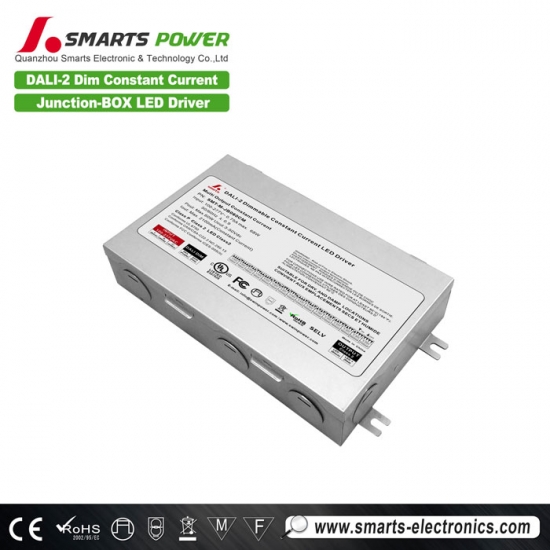

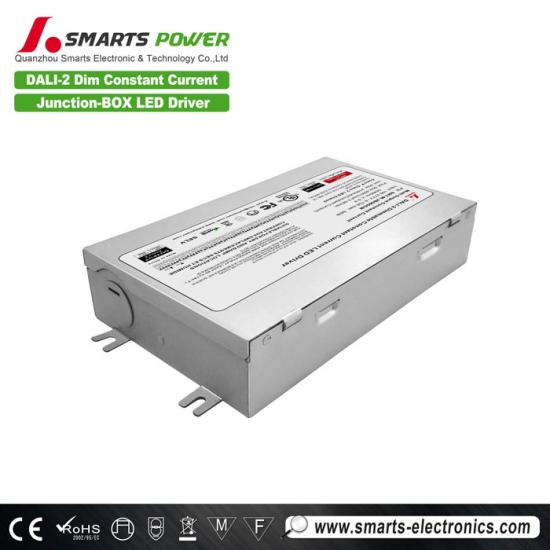

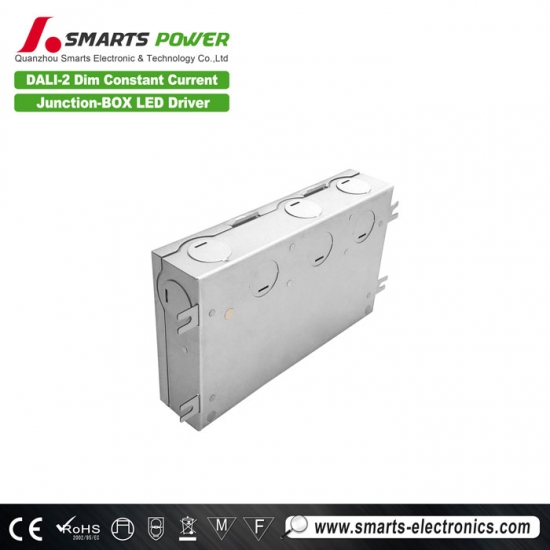

dali-2 dimmable 60W 600MA-2100MA constant current Junction Box led driver
This 60W multi-current optional led driver is a constant current working mode, the working efficiency is as high as 85%, the input voltage range is 100-277vac, it has passed UL certification, complies with the dali-2 dimming protocol IEC62386, and has a 7-year warranty

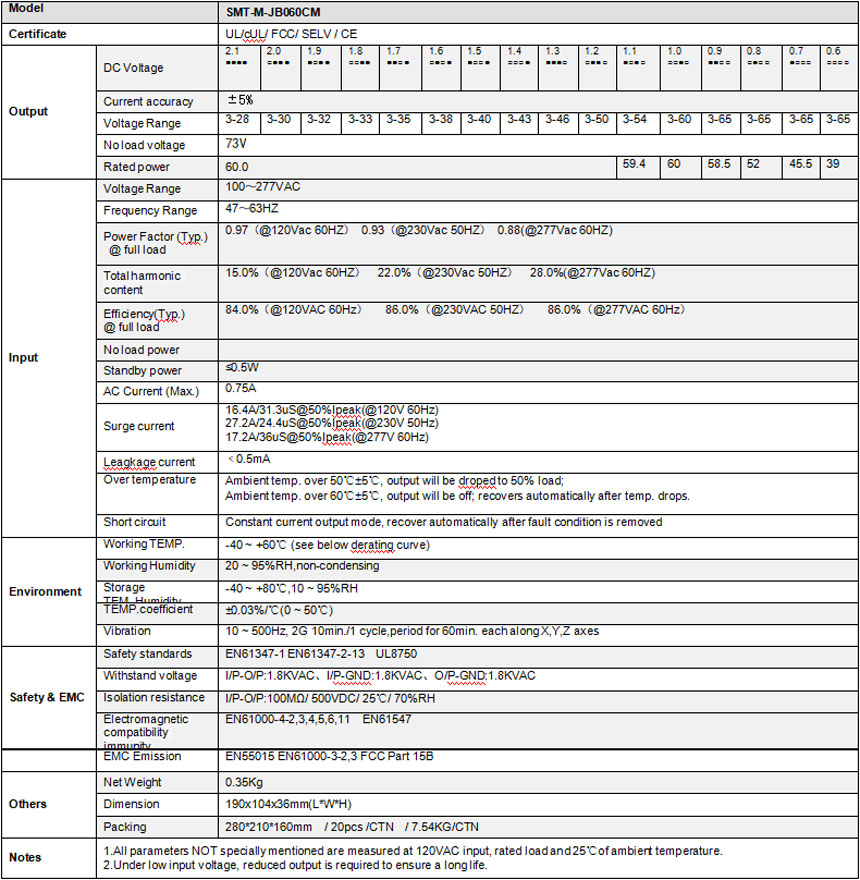

Specification
 |
 |
 |
 |
Mechanical Specification
1. Input 3*18AWG,Black cable (L), White cable (N) and Green cable (G).
2. Output 2*18AWG, Red cable (V+) connect to positive(+), Black cable(V-) connect to negative(-).
3. Dimming wire 2*18AWG Purple cable(DA1/L), Pink cable (DA2/N).
Warm tips: Any other requests for cable, we can customized.
Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
