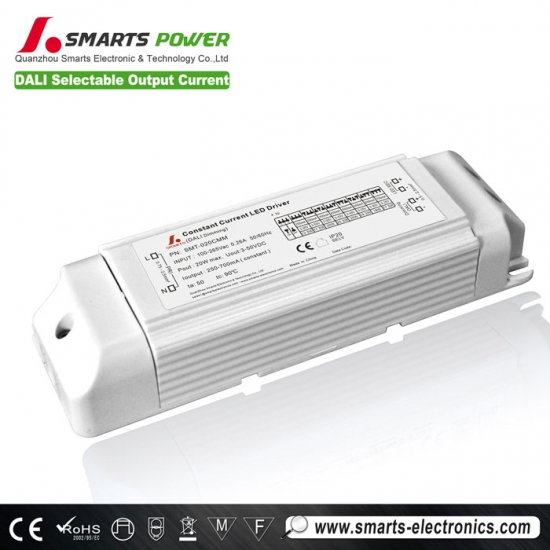

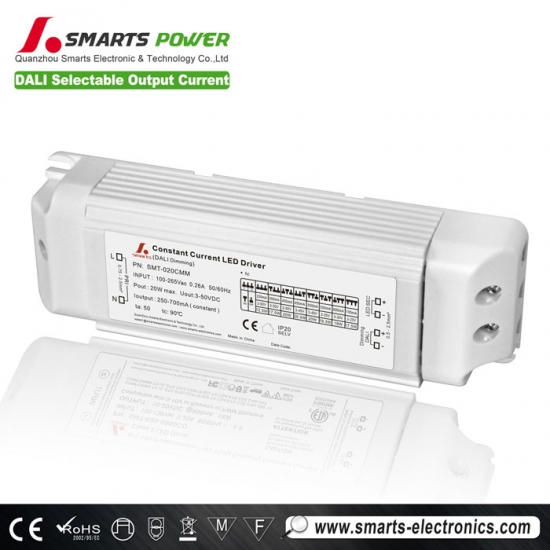

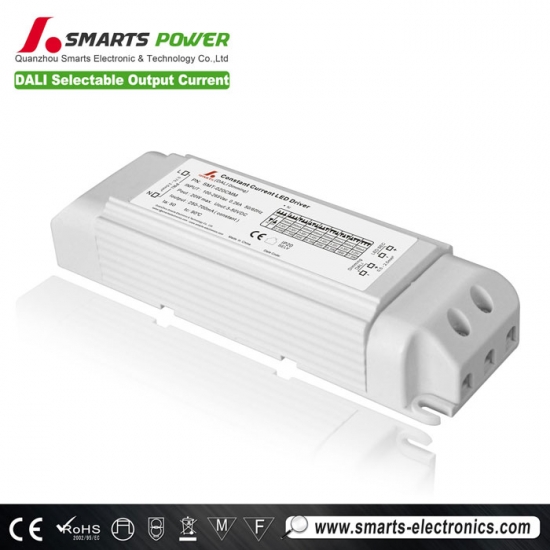

Non-dimmable LED Driver

20w 350ma 500ma dimmable led power supply constant current manufacturer

20w dali dimmable power supply with multi-output current adjustable function. the outut current can be  700mA 600mA 550mA 500mA 450mA 400mA 350mA 250mA by adjusted the DIP switch.
  • item no.:

    SMT-020CMM
  • lead time:

    10 working days
  • product orgin:

    CHINA
  • brand:

    SMARTS
  • shipping port:

    XIAMEN
  • payment:

    T/T
  • color:

    WHITE
  • Input Voltage:

    100-265V
  • Output Voltage:

    3-50VDC
  • Output Current:

    250MA - 700MA
  • Working Mode:

    Constant Current
  • Certification:

    CE,ROHS
  • Warranty:

    5 years Warranty
inquiry now
product details

20w 350ma 500ma dimmable led power supply constant current manufacturer


We are led power supply manufacturer.  to meet the requiement and reduce sku in the appplications, we developed 20w dali dimmable power supply with multi-output current adjustable function. the outut current can be  700mA 600mA 550mA 500mA 450mA 400mA 350mA 250mA by adjusted the DIP switch.


  Specifications:

Model SMT-020CMM

Smarts Electronics DALI dimmable drivers 10~20W (adjustable current)

Output

Rated current

700mA

600mA

550mA

500mA

450mA

400mA

350mA

250mA

Current Tolerance

±5%

DC Voltage

3-28V

3-32V

3-36V

3-40V

3-45V

3-50V

3-50V

3-50V

Open Circuit Voltage (Max.)

55V

Rated power

20W

20W

20W

20W

20W

20W

17.5W

12.5W

Input

Voltage Range

100-265VAC

Frequency Range

4763HZ

Power Factor

PF0.95/110VAC  PF0.90/220VAC  PF0.85/265VACFull loading

Full Load Efficiency (Typ.)

>82%

>83%

>82%

>82%

>84%

>84%

>82%

>80%

AC CurrentMax.

0.22A

0.22A

0.22A

0.22A

0.22A

0.22A

0.20A

0.15A

Leakage current

<0.5mA

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

55V

Over Load

 120%

Protection Class:

Class II / Class 2

Environment

Working TEMP.

-40 - +60℃

Working Humidity

20 - 90%RH,non-condensing

Storage TEM.,Humidity

-40 - +80℃10 - 95%RH

TEMP.coefficient

±0.03%/℃0 - 50℃

Vibration

10 - 500Hz, 2G 12min./1 cycleperiod for 72min.each along X,Y,Z axes.

Safety & EMC

Safety standards

EN61347-1 EN61347-2-13 IP20

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015,EN61000-3-2 (60%load)

EMC Immunity

EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level surge4KV

Others

Weight

0.19Kg

Size

140*45*27mmL*W*H

packing

320*280*21550PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 120V/220VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again.



Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver



   DIP adjustment Instruction:

The output current can be adjusted by DIP switch, please refer to below table to chose the output current you want.


dimmable led power supply

  Dimension:


dimmable led power supply

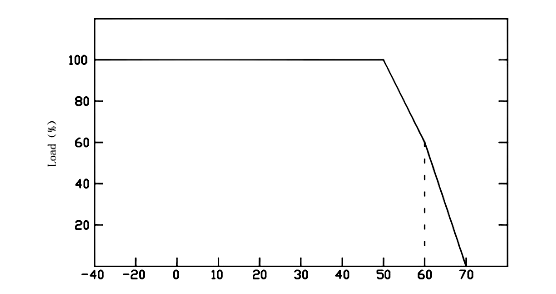

  Derating Curve:

dimmable led power supply


To extend their life, please refer to the Derating Curve and derate according to the temperature.


 Relative products:


We are also offering DALI dimmable constant voltage led driver 20w in both 12vdc. Model SMT-012-030VM ( click picture to check more details)

dimmable led power supply
