DMX 3 Key Push Button led dimmer switch for Dimming


led light dimmer
led light dimmer led light dimmer led light dimmer

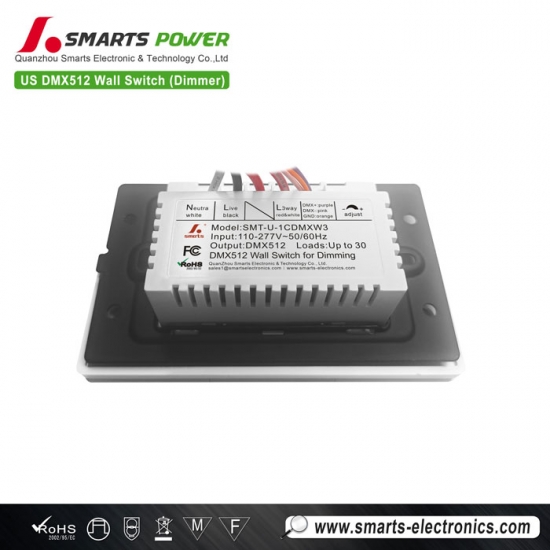

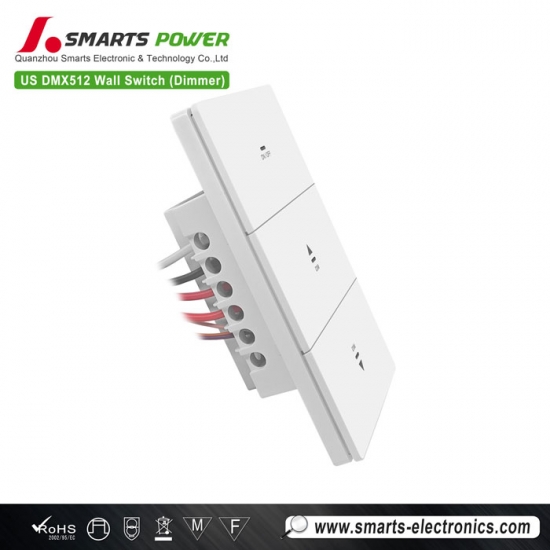

DMX 3 Key Push Button led dimmer switch for Dimming

The DMX 3 Key Push Button Wall Switch for Dimming does not require addressing and is ready for use immediately. It effectively saves manpower and is quick and easy to install. It features a compact plastic housing and is available in white or gray. It comes with a 5-year warranty.

  • item no.:

    SMT-U-1CRDMXW3

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    Max.60mA

  • Certification:

    ETL,CE, FCC, ROHS

  • Warranty:

    5 years
inquiry now
product details

DMX 3 Key Push Button led  dimmer switch for Dimming

Smartspower's new DMX dimmer provides DMX control for devices that are not equipped with a DMX interface, for switching or dimming. This DMX dimmer adopts a standard home decoration style design, looks similar to an ordinary household switch, and is easy to operate. Stable and reliable


  Installation Instructions

Please read before installing.
Maximum Capacity (Limited by whichever is achieved first)
Input Voltage:AC110-277 V~50 / 60 Hz

Length of the DMX-bus
Max.80mA
loads (DMX drivers or DMX decoders) Up to:30


1、Turn power OFF at circuit breaker


WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.
2、Remove existing device & Mount the controller fixed seat

3、Label and remove existing wires

To assist in the wiring of the new control, label the wallbox wires before removing them from the existing device.
For screw terminal products, tag the wire from the different color screw.


4、Connect the Dimmer (1)

Model
SMT-U-1CRDMXW3
SMT-U-1CRDMXW3
Colour
 White
 Grey



Note1：Both Dimmer & Driver require no address editing and are ready to use once connected.
Note2：The dimmer and DMX driver/decoder are independently connected to the input power (AC mains)


5、Connect the Dimmer (2)

Model
 SMT-U-1CRDMXW3
 SMT-U-1CRDMXW3
Colour
 White
 Grey
Single Pole Wiring (These models support single-pole wiring.)



Note1：Both Dimmer & Driver require no address editing and are ready to use once connected.
Note2：Connect the AC input live wire (L) of the DMX driver to the dimmer's Load wire(Red) .


Troubleshooting:Troubleshooting:
If the dimmer can start ,but the DMX driver fails to start, please check whether the hot wire and neutral wire at the dimmer(or DMX driver ) input are reversed.


6、Connect the Dimmer (3)

Model
 SMT-U-1CRDMXW3
 SMT-U-1CRDMXW3
Colour
 White
 Grey

3-Way Wiring (These models support 3-way wiring.)



Note：Use standard single pole switch can be combined with a controller to form a dual-control switch system


7、Mount the Dimmer

Press and snap into place to complete installation

8、Turn power ON at circuit breaker

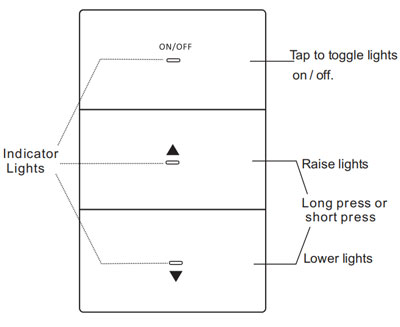

9、Setup Dimmer Operation

Note:When the dimming button (long press) reaches maximum or minimum brightness. The indicator light blinks slowly

Low-End Trim Adjustment
Optional
1.With the lights on and set to the lowest light level，turn the low-end trim dial counterclockwise until there is no flicker.
2.Turn lights off and on. If lights do not turn on or are not stable, turn the low-end trim dial clockwise slightly until there is no flicker.

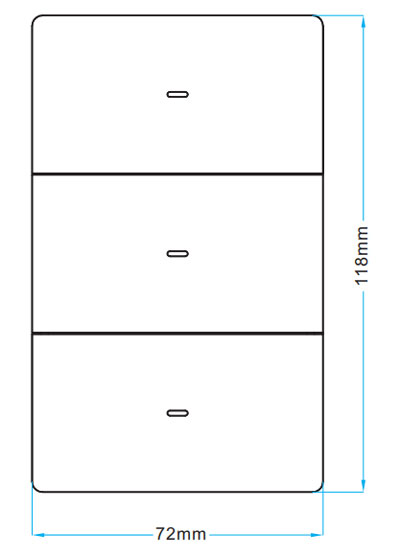

10、Product Dimension
