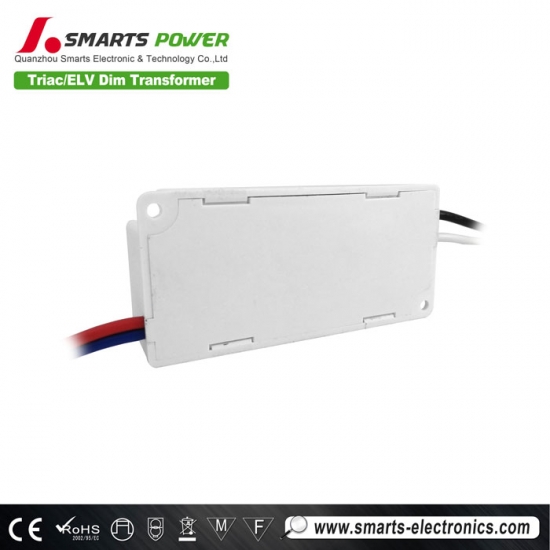

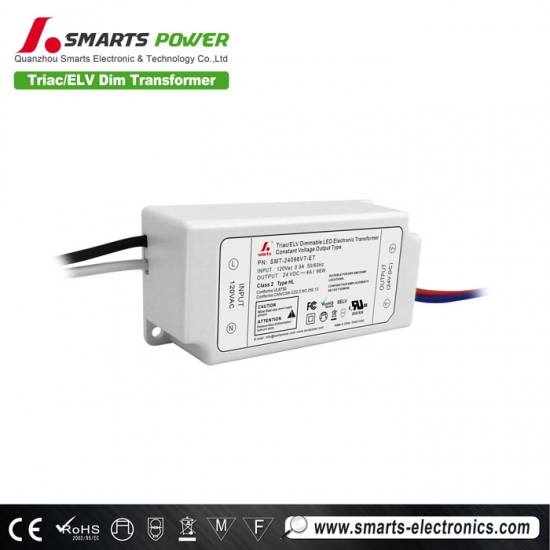

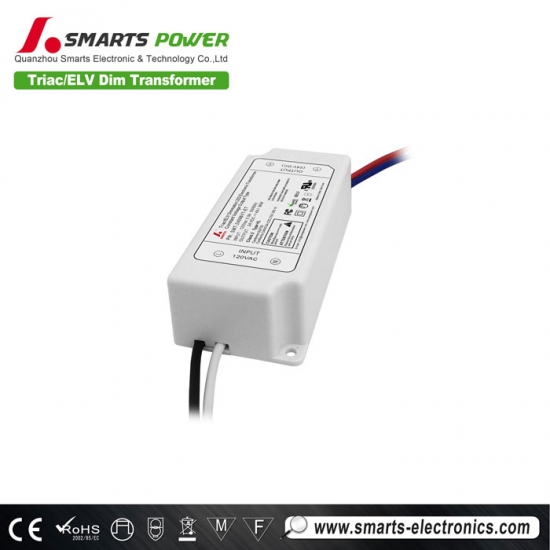

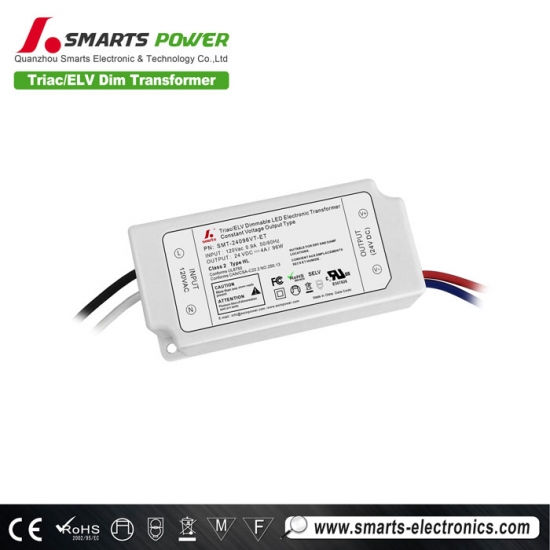

ip20 constant voltage triac dimmable led transformer dimmable led power supply 96W 24V
The 96W triac dimmable led electronic transformer has input voltage of 100-130vac, built-in active PFC function, PF value =0.94, constant voltage working mode, small body and easy installation, plastic shell design is suitable for use in narrow indoor places
Specification
| Model Number | SMT-24096VT-ET |
| OUTPUT | |
| Rated Power | 96W |
| Rated Voltage | 24V |
| Rated Current | 4.0A |
| Voltage Tolerance | ±1V |
| INPUT | |
| Voltage Range | 100-130Vac |
| Frequency Range | 47-63Hz |
| Power Factor(typ.) | 0.94@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Efficiency(Typ.) | 88%@120VAC |
| AC Current(Typ.) | 1.2A |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Reduce the output voltage and output power, auto-recovery or re-power on to recovery |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Withstand voltage | I/P-O/P:1.88KVAC |
| OTHERS | |
| Dimension | 3.31x1.57x0.98 inch (L*W*H) |
| Packing | |
 |
 |
 |
 |
Mechanical Specification
Dimming operation
Load vs Ambient Temperature:
Related Products
|

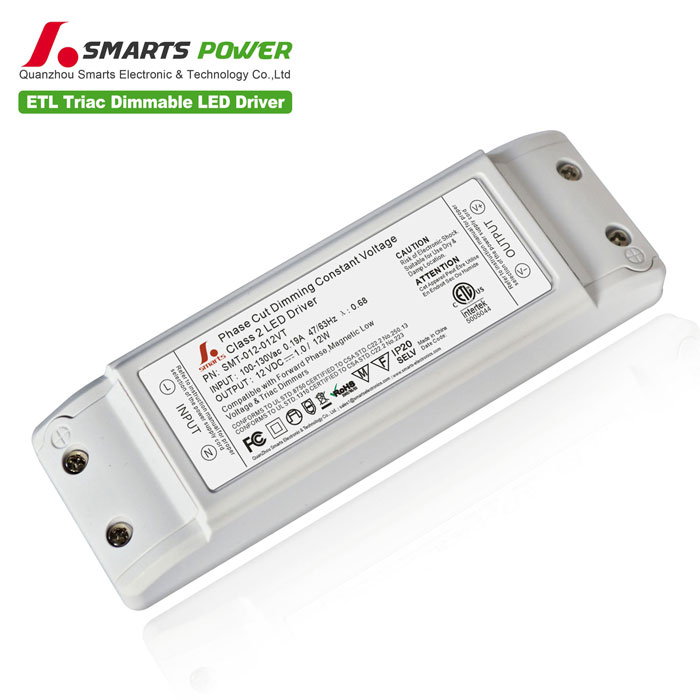

ip20 triac dimmable 12W led driver plastic case. It is compatible with most triac Dimmers in the market for smooth and flicker-free dimming
