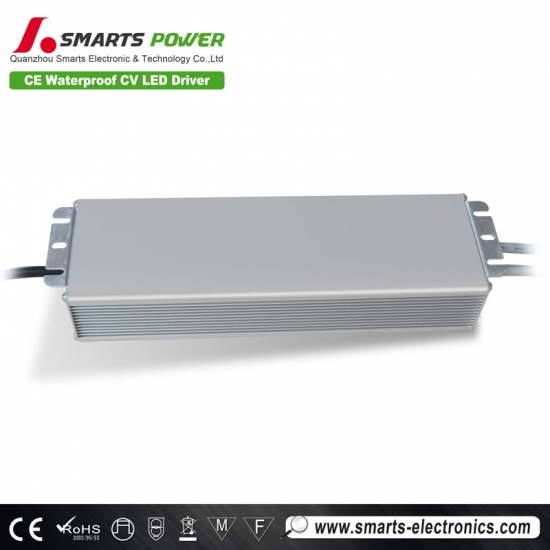

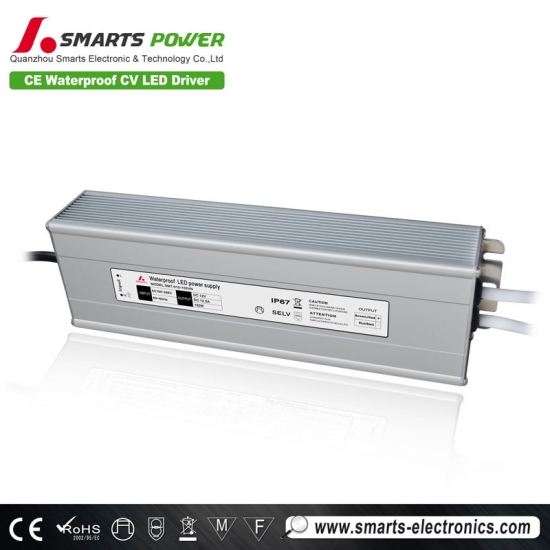

SMT-012-150VN is a waterproof IP67 150w 12v lighting power supply, suitable for using in projects which requires economy cost led power supply. work well with LED strips, LED signs. LED display etc.. More wattage avaliable download the above catelogue or contact with us.
Product parameters
| MODEL | SMT-012-150VN | SMT-024-150VN | ||
| OUTPUT | DC VOLTAGE | 12V | ||
| RATED CURRENT | 12.5A | 6.25A | ||
| CURRENT RANGE | 0~1.5A | 0~0.75A | ||
| RATED POWER | 150W | 150W | ||
| RIPPLE&NOISE(max) | 1.2V | 1.2V | ||
| voltage TOLERANCE | 12V±5% | 24V±5% | ||
| SETUP RISE TIME | 80ms/110,220VAC | 80ms/110,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110,220VAC | 60ms/110,220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265Vac | ||
| FREQUENCY RANGE | 50~60Hz | 50~60Hz | ||
| POWER FACTOR(Typ.) | ||||
| EFFICIENCY(Typ.) | >84% | >84% | ||
| AC CURRENT(Typ.) | 0.5A/110V,220VAC | 0.5A/110V,220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 30A/110,220VAC | |||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | ||
| Overload | overload protected@145-160% above peak rating | |||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | |||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | |||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | |||
| SAFETY&EMC | SAFETY STANDARDS | IP67 | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| EMC Test Standards |
|
|||
|
|
||||
| NOTE |
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input, rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
|||
 |
 |
 |
 |

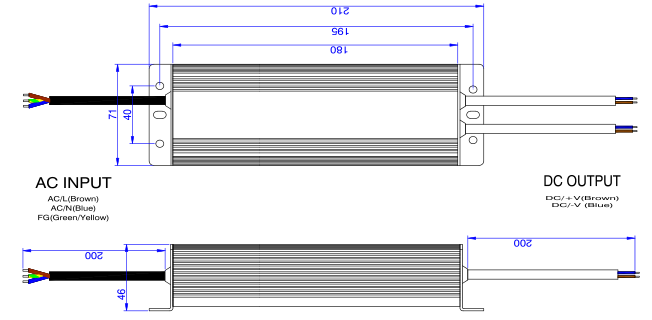

Drawing

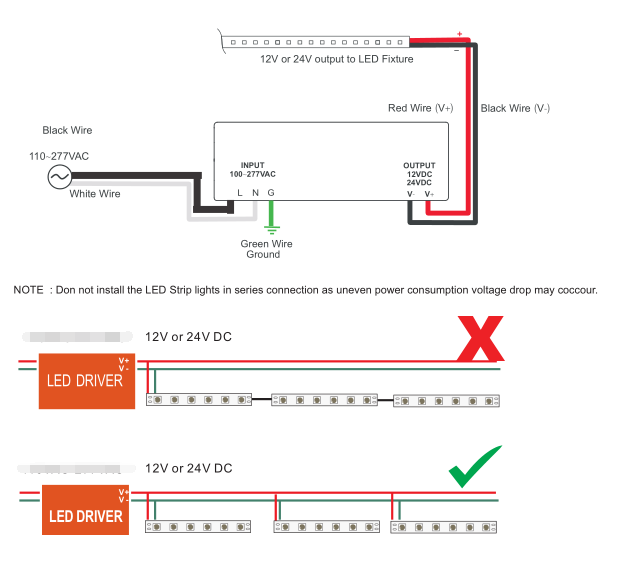

Connecting diagram
(Note: NOTE : Don not install the LED Strip lights in series connection as uneven power consumption voltage drop may coccour.)
More details about your LED applications, let us know.
