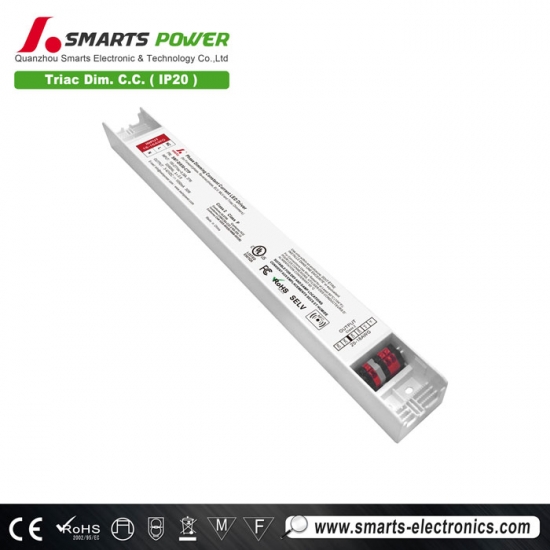

Plastic housing ip20 constant current 30W dimmable power supply for led lights strip
Plastic housing ip20 constant current 30W dimmable power supply for led lights strip
Plastic housing ip20 constant current 30W dimmable power supply for led lights strip
This plastic housing waterproof IP20 triac dimmable LED driver has a screw-free design and is easy and quick to install. It is suitable for installation in indoor small space lighting projects. The dimming range is 1-100% smooth, stable and flicker-free.
Specification
| Model | SMT-DI030-CTP | |
| Certificate | UL / cUL / FCC / Class P | |
| Output | DC Voltage | 3-42V |
| Current Regulation | ±2% | |
| Current Ripple | <5% | |
| Overshoot Current | <0.1% | |
| Rated current | 300-1050mA(The output current can be adjusted arbitrarily within this range using NFC) | |
| Rated power | 30W | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) @ full load | >0.98@120VAC >0.9@277VAC | |
| THD(Typ. ) @ full load | ≤14%@120VAC ≤25%@277VAC | |
| Efficiency(Typ.) @ full load | >82%@120VAC >82%@277VAC | |
| AC Current (Max.) | 0.39A | |
| Inrush Current (Typ.) | 4.5A, 50%, 90us @120VAC; 10A, 50%,96us @277VAC | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Constant current mode, can automatically recover after abnormal elimination |
| Over Load | ≤110% Hiccup mode,recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; Ambient temperature over 60℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; |
|
| Working Humidity | 20 - 90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10-500Hz, 2G 12 minutes/cycle, X, Y, Z axes each 72 minutes | |
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US);E495946 |
| Withstand voltage | I/P-O/P: 3.75KVac | |
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |
| Surge Immunity Test | AC Power Line:Differential Mode 2KV | |
| EMC Emission | FCC 47 CFR Part 15, Subpart B (US) | |
| Others | Net Weight | 0.3KG |
| Dimension | 324.7*34.8*24.1mm(L*W*H) | |
| Packing | 340*270*195mm 50pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |
| 2. Tolerance: includes set up tolerance and load regulation . | ||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||

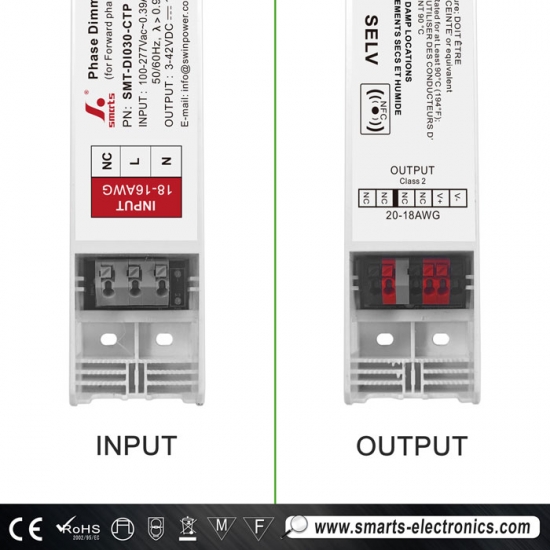

Mechanical Specification
| note | LD30 |
| Input wire (connecting terminal) | Cables with cross-sectional area of 18AWG can be used |
| Output wire (connecting terminal) | Cables with cross sectional areas of 20AWG can be used |
| Remarks: | |
Warm tips:
Recommended Max. Carrying Current (A) = wire diameter(mm2) x 10A/mm2.
For example: 1mm2output cable, Recommended Max. Carrying Current (A) = 1mm2 x 10A/mm2=10A
Dimming Operation
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
Please try to use dimmers with power at least 2 times as the output power of the driver.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Related Products
|

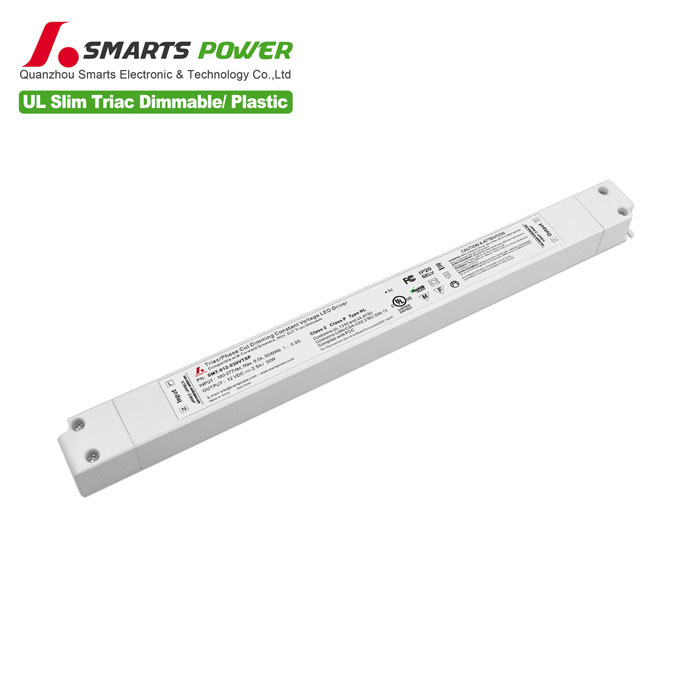

Mode：SMT-012-030VTSP intput voltage：100-277vac
