Non-dimmable LED Driver

Slim type 24v 96w constant voltage led power supply

24vdc 96w ultra slim waterproof led power supply ip67
  • item no.:

    SMT-024-096VWSW
  • lead time:

    7 working days for sample order
  • product orgin:

    china
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    EXW
  • Input Voltage:

    200-240
  • Output Voltage:

    24VDC
  • Output Current:

    4A
  • Working Mode:

    CV
  • Certification:

    CE
  • Warranty:

    7
inquiry now
product details

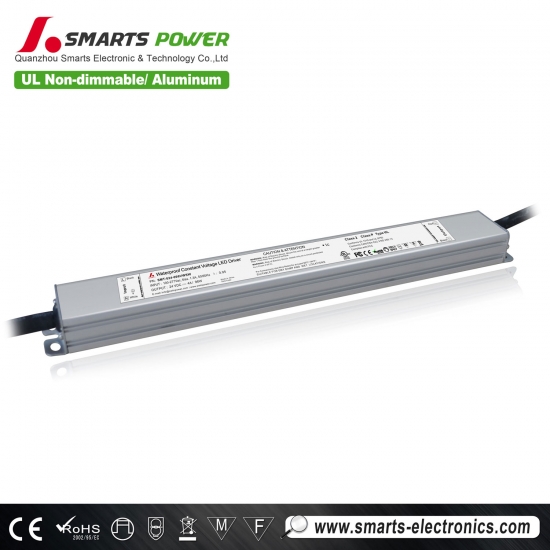

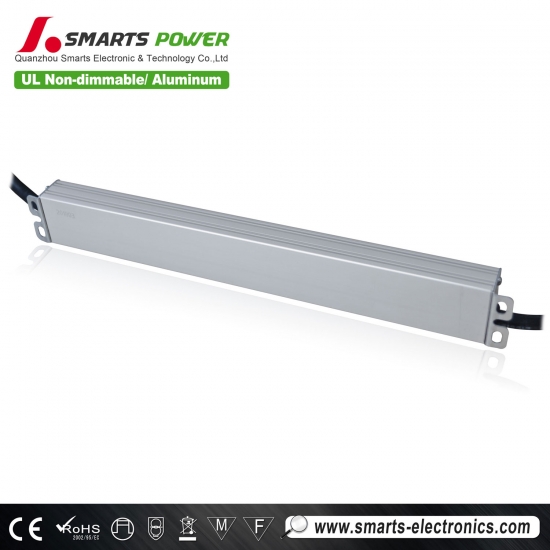

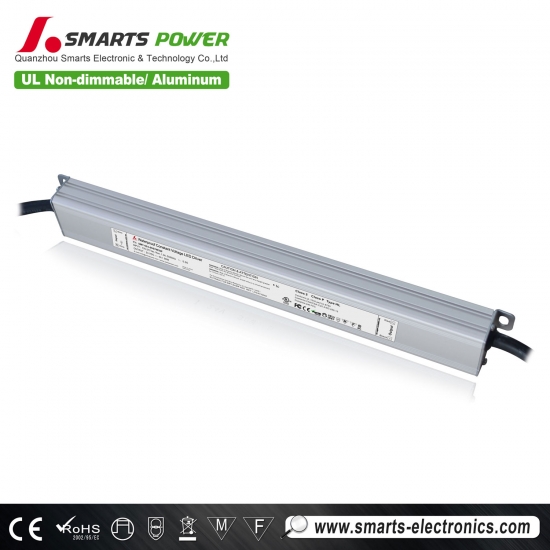

Slim type 24v 96w constant voltage  led power supply


Our SMT-024-096VWSW is CE approved led driver. Output voltage is 24 Volt, output wattage is 96Watt, it is constant voltage led power supply. Widely input voltage range with 110-277Vac. For this model we give 7 years warranty We design it as high quality with high PF>0.93, high Efficiency>89%. It is waterproof slim constant voltage led power supply.


  Features


  • Output constant voltage
  • Input voltage range 100-277VAC

  • Protections:short circuit/over voltage/over heat

  • Cooling by free air convection

  • Full protection aluminum housing, for dry, damp, wet location

  • Suitable for LED lighting and moving sign applications

  • Compliance to worldwide safety regulations for lighting

  • 7 years warranty

24v constant voltage led driver


model

SMT-012-100VWSW

SMT-024-096VWSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4Amp

Rated power

100W

96W (class 2)

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

0.99@120VAC; 0.98@230VAC; 0.95@277VAC

THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC

Full Load EfficiencyTyp.

83%@120VAC; 85%@230VAC; 85%@ 277VAC

AC CurrentTyp.

1.4A/100VAC  / 0.82A/230VAC  / 0.43A/277VAC

Inrush CurrentTyp.

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P: 3.75KVAC

Isolation resistance

I/P-O/P100M Ohms/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry



Others

Weight

0.55Kg

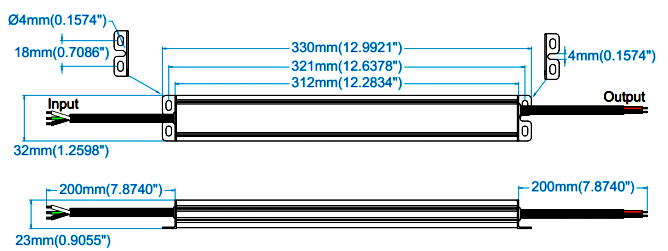

Size

330*32*23mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

  Label

Slim type 24v 96w constant voltage led power supplyoutdoor led driver
