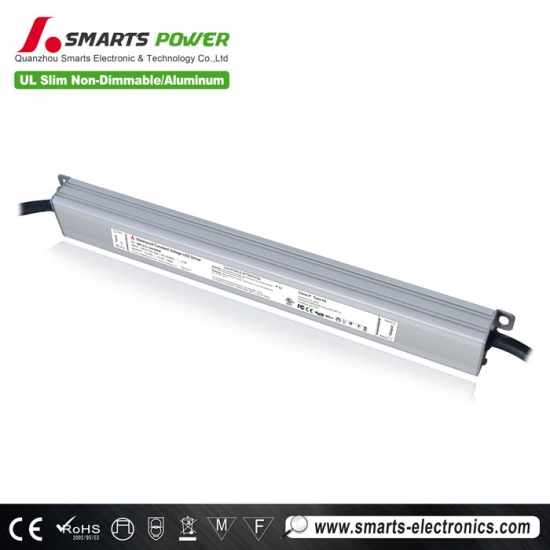

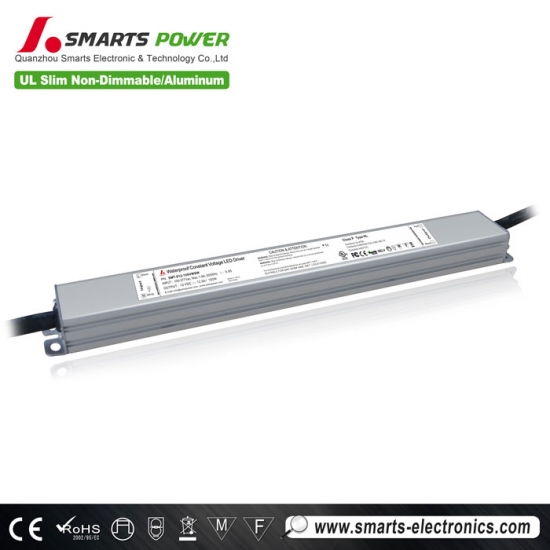

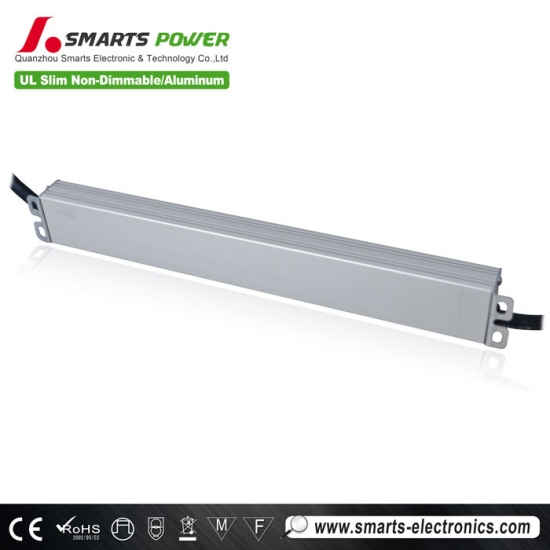

slim type led power supply 12v 150w led driver
We are fully insured for product liability and most of our products led driver 150w 12v are UL listed. No one does the good quality led dribver for Smart LED Lighting better!
Specification
model
SMT-012-150VWSW
SMT-024-150VWSW
SMT-036-150VWSW
SMT-048-150VWSW
Output
DC Voltage
12VDC
24VDC
36VDC
48VDC
Voltage Accuracy
±5%
Rated current
12.5Amp
6.25Amp
4.16A
3.125A
Rated power
150W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
THD(Typ.)@ full load
<15%@120VAC <20%@230VAC <20%@277VAC
Full Load Efficiency（Typ.）
83%@120VAC; 85%@230VAC; 85%@ 277VAC
AC Current（Typ.）
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
Leakage current
<0.50mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P: 3.75KVAC
Isolation resistance
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Weight
0.55Kg
Size
330*32*23mm (L*W*H)
packing
50PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

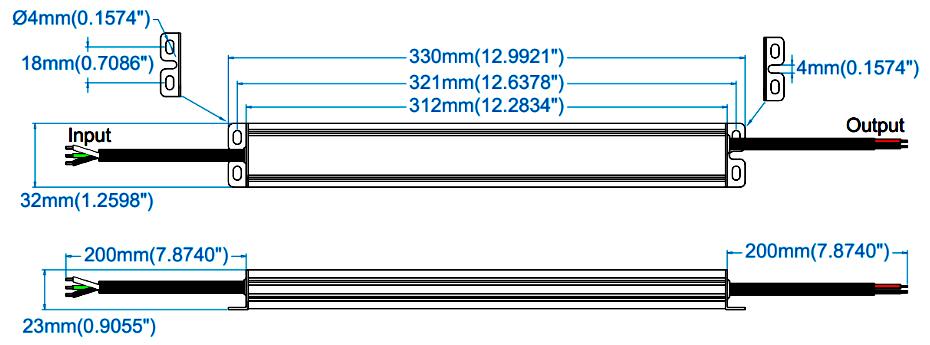

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（Possitive +）,Black is（Negative -）

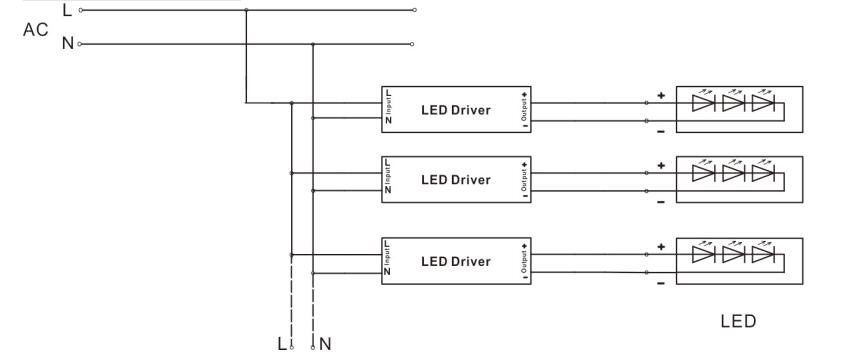

Connecting Diagram
