Non-dimmable LED Driver

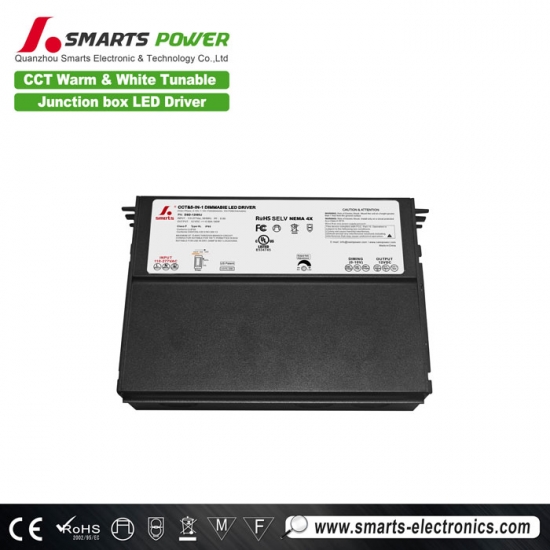

ul listed 12v/24v/48v 80w constant voltage CCT & triac/0 10v dimmable led strips driver power supply

80W dimmable led driver PWM output mode, with two frequencies of 4K or 20K to choose from, small size, easy and fast installation, aluminum shell, good heat dissipation performance, truly passed NEMA 4X, with 5-year warranty

  • item no.:

    DSD-12080J
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12VDC/24VDC/48VDC
  • Working Mode:

    Constant voltage
  • Certification:

    UL, ROHS, FCC
  • Warranty:

    5 years
inquiry now
product details

ul listed 12v/24v/48v 80w constant voltage CCT & triac/0 10v dimmable led strips driver power supply

This CCT & triac/0-10v dimmable led driver 80W constant voltage operating mode, operating efficiency up to 89%, has ultra-low load requirements, and can work perfectly under 10-100% load


  Specification

Model Number DSD-12080J DSD-24080J DSD-48080J
Output Type
Reted Power 80W
Reted Voltage 12V 24V 48V
Reted Current 6.66A 3.33A 1.66A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Type
Voltage Range 110-277V
Frequency Range 47-63HZ
Efficiency(Typ.) 88%@120VAC 89%@277VAC
Total Harmonic Distortion THD< 15%(@100% load)
Power Factor(typ.) 0.99@120VAC 0.98@277VAC
AC Current(Typ.) 0.85A
Inrush Current(Typ.) 22A
Leakage Current <0.5mA
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition is removed
Over Load Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate 100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over
load is removed
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 188x120.5x42mm (L*W*H)
Packing -
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


Wire Specification

DSD-J Input Output 0/1-10V Dimming
Power Function Color Spec. Function Color Spec. Function Color Spec.
80W AC L Black 18AWG DC+ Red 18AWG Dim+ Purple 18AWG
AC N White 18AWG DC- Black 18AWG Dim- Pink 18AWG
Ground Green 18AWG CW- Yellow 18AWG Dim- Orange 18AWG

Function Introduction


Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and
vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate. Vertical mounting
is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.


Connecting Diagram
Using TRIAC/Phase cut dimming
1.Through a phase-dimmer or lighting system, control the input AC phase line (L) and adjust the output PWM
2.Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Dimming operation

Works with Two channel CCT warm-dim LED strip/tape (3 wires)


  Related Products

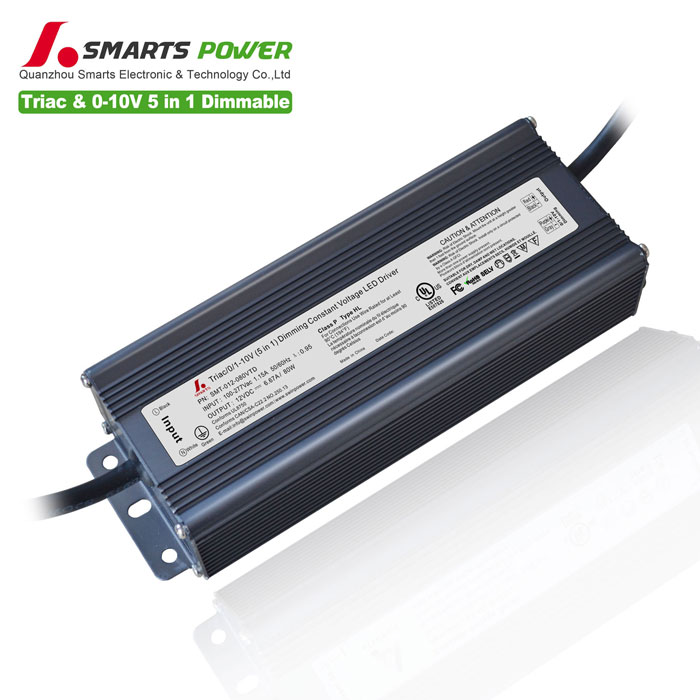

80W triac & 0 10v dimmable led driver aluminum shell design, waterproof grade ip67, good heat dissipation, short circuit, overload, over temperature protection, 7-year warranty
