Non-dimmable LED Driver

best selling 12v 30w dimmable led driver

dimmable led driver; 12v triac dimmable led power supply; constant voltage transformer
  • item no.:

    SMT-012-030VT
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T; Paypal; Western Union
  • Input Voltage:

    90-135VAC, 180~250V AC
  • Output Voltage:

    12V
  • Output Current:

    2.5A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ROHS
  • Warranty:

    3 years
inquiry now
product details

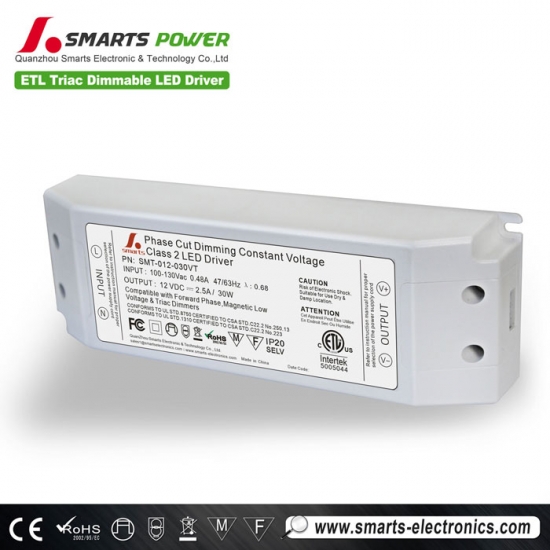

best selling 12v 30w dimmable led driver




 Product Description




model

SMT-012-030VT

SMT-024-030VT

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

1.66Amp

0.83Amp

Rated power

30W (class 2)

30W(class 2)

Input

Voltage Range

90-135VAC, 180250V AC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.92/110V ; PF≧0.93/220V ; PF≧0.935/250V

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC

Leakage current

<0.27mA/110VAC; 0.25mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Current

1.4 Times output current

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-2-13, EN62493,

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.40Kg

Size

180*60*35mmL*W*H

packing

355*215*215mm  20pcs/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

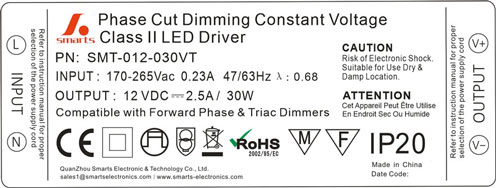

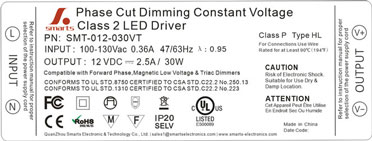

  Label

30w dimmable led driver30w dimmable led driver

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  • Input range :90-135VAC / 170-265VAC
  • Built-in PFC function
  • Efficiency > 85%
  • Protections:Short circuit/over Voltage
  • Fully isolated plastic case
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)



 Environment


  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • ibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC


 Aplication


  • indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
