waterproof ip66 outdoor 0 10v dimmable 160ma-1600ma constant current led driver power supply
waterproof ip66 outdoor 0 10v dimmable 160ma-1600ma constant current led driver power supply
waterproof ip66 outdoor 0 10v dimmable 160ma-1600ma constant current led driver power supply

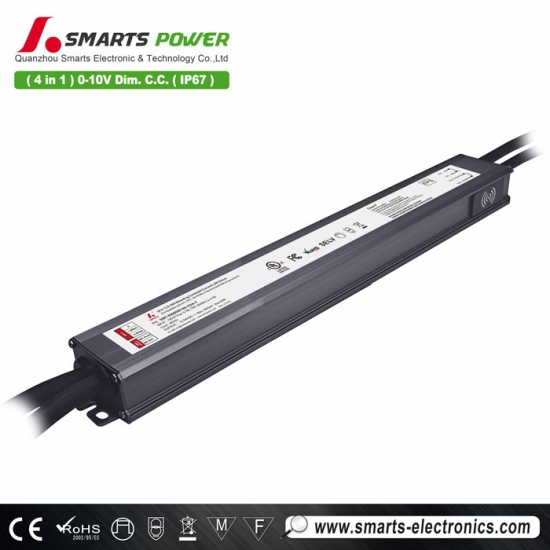

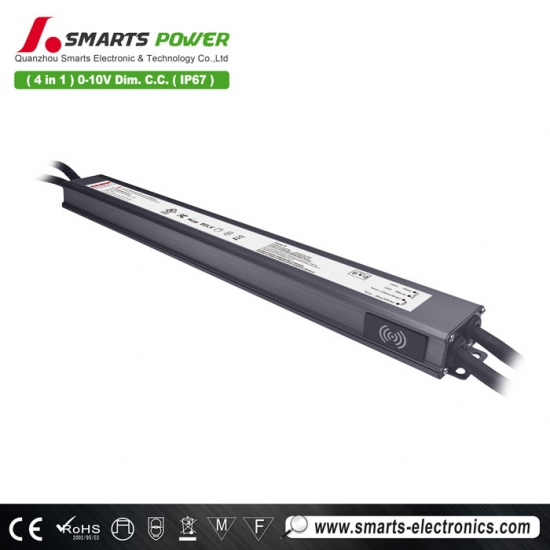

This constant current 60W 0 10V dimmable led power supply adopts 0 10v signal end isolation, built-in NFC smart programming module, LED drive can be adjusted through NFCAPP. UL certification, in line with global safety lighting regulations.
Specification
| Model | SMT-DI060W120-CDA-T | SMT-DI060W160-CDA-T | |
| Certificate | UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA | ||
| Output | Rated current | 120mA-1200mA | 160mA-1600mA |
| DC Voltage | 24-93VDC | 12-54VDC | |
| No-load voltage | 60Vmax | ||
| Rated power | 60Wmax | ||
| Voltage Tolerance | Output current ± 10mA for ≤ 300mA, ± 20mA for ≥ 300mA, and ± 30mA for ≥ 1000mA | ||
| Line Regulation | <0.5% | ||
| Load Regulation | <0.5% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) | ≥0.98@120VAC 60Hz ≥0.96@230VAC 50HZ ≥0.92@277VAC 60HZ | ||
| No load power (Max) | <1.5W | ||
| Standby power (Max) | <0.5W | ||
| THD(Typ.) @ full load | ≤15% | ||
| Efficiency @ full load | 88%@120VAC 60Hz 89%@230VAC 50HZ 89%@277VAC 60HZ | ||
| AC Current (Max.) | 0.65A | ||
| Inrush Current (Typ.) | 28.7A, 204us@50%Ipeak@120V 55.2A, 98us@50%Ipeak@230V 66.0A, 220us@50%Ipeak@2770V | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | ||
| Over temperature |
Ambient temp. over 55± 5℃, output current will be reduced to 50%; Ambient temp.Over 40 ± 5℃,recovers automatically. Ambient temp.over 75± 5℃, output current will be reduced to 0%; Ambient temp.Over 40 ± 5℃,recovers automatically. |
||
| Environment | Working TEMP | -40~+50℃ (see below derating curve) | |
| Working Humidity | 20 -90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| Strobe test standard | IEEE 1789 Flicker free | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2 kV, Common Mode 4 kV | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | ||
| Others | Net Weight | 540g | |
| Dimension | 332*38.5*23.6mm (L*W*H) | ||
| Packing | 365*355*260mm 20pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life, please reduce the loading at lower input voltage . | |||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||
 |
 |
 |
 |

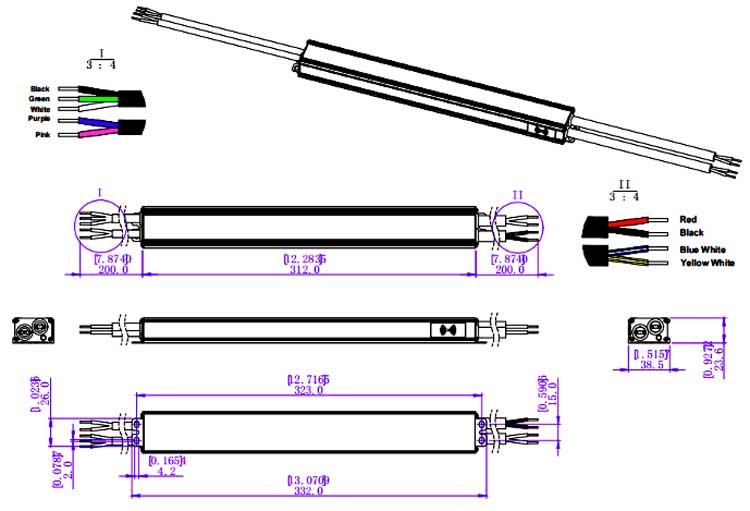

Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 10 |
| 13A | 13 | |
| 16A | 17 | |
| 20A | 21 | |
| 25A | 26 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 20 |
| 13A | 26 | |
| 16A | 32 | |
| 20A | 40 | |
| 25A | 50 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 24 |
| 13A | 31 | |
| 16A | 38 | |
| 20A | 48 | |
| 25A | 55 | |
| LN60 | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire | V+(Red) V-(Black)(2*18AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-)(2*18AWG) |
| External temperature wire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG) |
| Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Operation
1. The model name SMT-DI060WXXX-CDA means that there is no lamp temperature detection, so there is no
corresponding wiring for the LED driver.
2. The model name SMT-DI060WXXX-CDA-T means that there is lamp temperature detection.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output current slightly by NFC
The output current can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write
device: NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Set Address easily by NFC
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write
device:NFC-RW) by close to the NFC signal area of the Dimmable LED driver.
Related Products
|

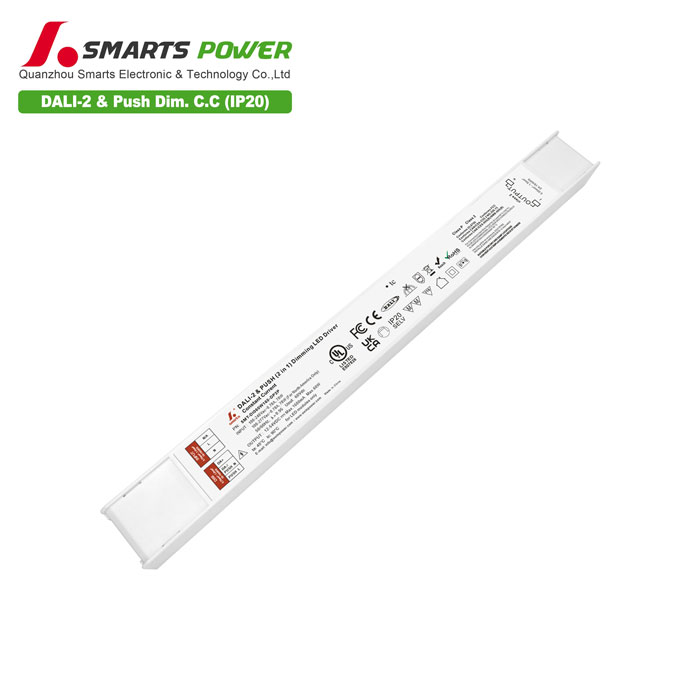

Mode：SMT-DI060W160-DP2P intput voltage：100-277vac
