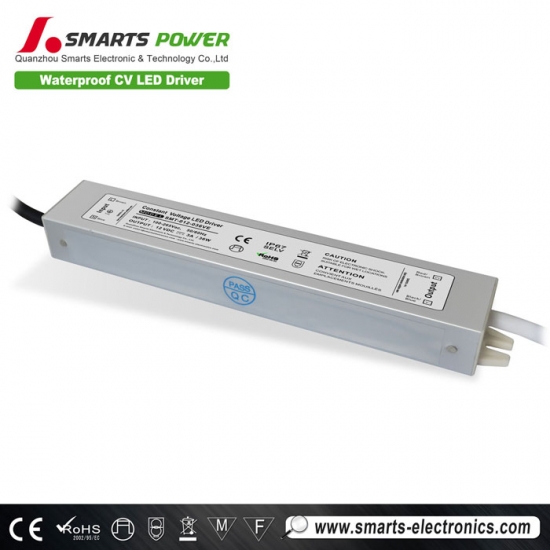

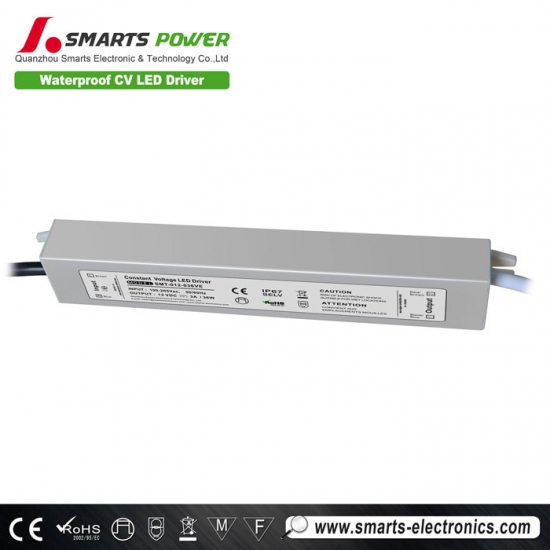

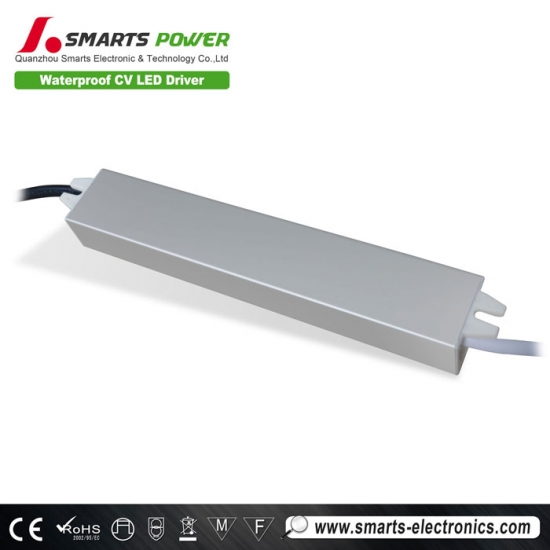

ac dc led bulb driver 12v 36w 220v outdoor IP67
Smarts 12v led transformer driver is a hardwire driver and compatible with Onforu RGB Led strip lights 5050 high-end RGB LED beads, 12v/24v output available.
Specification
| SPECIFICAION | |||
| MODEL | SMT-012-036VE | SMT-024-036VE | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 3.0A | 1.5A | |
| CURRENT RANGE | 0-3.0A | 0-1.5A | |
| RATED POWER | 36W | 36W | |
| RIPPLE&NOISE(max) | <600mV | ||
| VOLTAGE TOLERANCE | ±0.5V | ||
| INPUT | VOLTAGE RANGE | 100-265VAC | |
| FREQUENCY RANGE | 47-63Hz | ||
| POWER FACTOR(Typ.) | no PFC | ||
| EFFICIENCY(Typ.) | 》86% | ||
| AC CURRENT(Typ.) | 0.40A/220VAC | ||
| PROTECTION | Short circuit | Hiccpe mode,recovers automatically after condition is removed | |
| Overload | 3.5A | 2..5A | |
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||
| STORAGE TEMP | -40~+80℃ | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | |||
| NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||
 |
 |
 |
 |

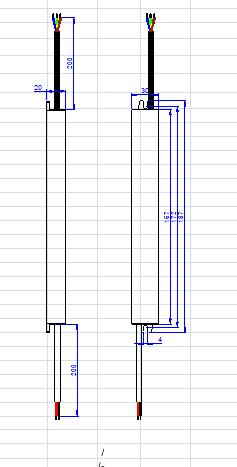

Mechanical Specification
Derating Curve
Application

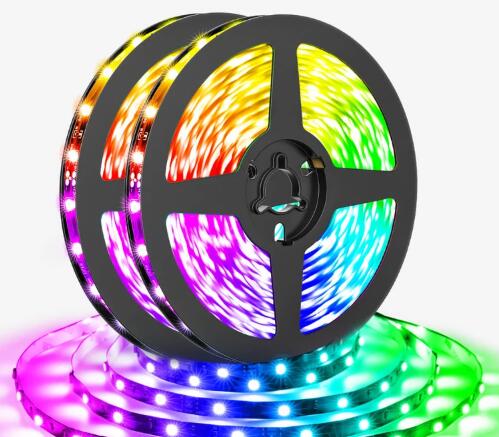

SMT-012-036VE led driver 36 watt, which is the one of the best led driver for this Onforu RGB Led strip lights IR remote. Applications outdoor: Street lamp, walk-ways and general site lighting.
Related Products

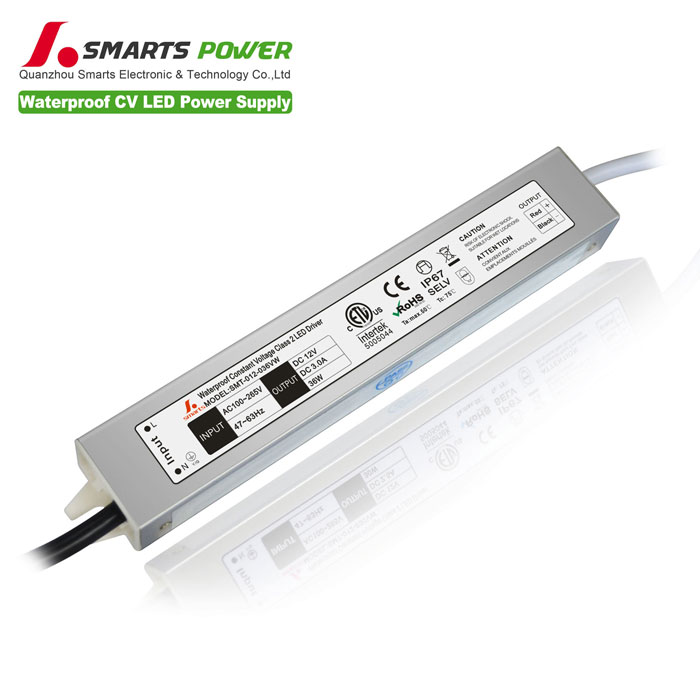

12v 3a 36w waterproof Class 2 led power supply, ETL, CE, ROHS listed 100-265vac input range for indoor and outdoor use...
