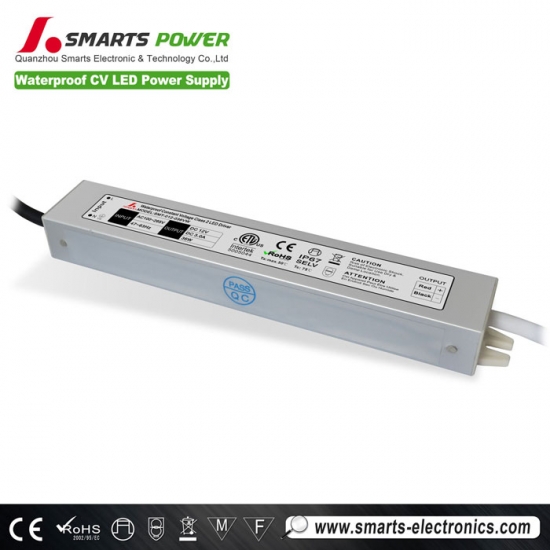

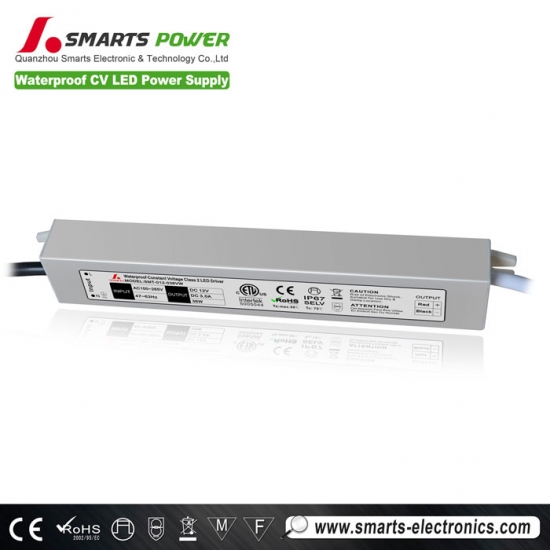

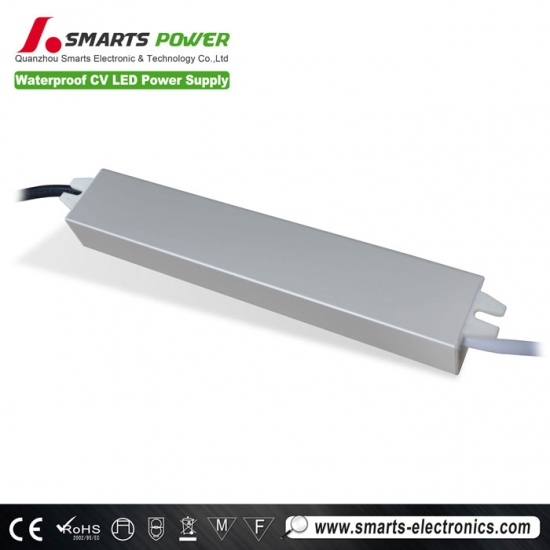

Non-dimmable LED Driver

12volt 36watt constant voltage class 2 led power supply

12volt 36watt constant voltage class 2 led power supply is class 2 waterproof ip67 2 years warranty, CE ETL, ROHS approval led driver
  • item no.:

    SMT-012-036VW
  • brand:

    SMARTS
  • Input Voltage:

    100-265v
  • Output Voltage:

    12v
  • Output Current:

    3a
  • Working Mode:

    constant voltage
  • Certification:

    CE, ETL, ROHS
  • Warranty:

    2 years
inquiry now download
product details

12volt 36watt constant voltage class 2 led power supply



12volt 36watt constant voltage class 2 led power supply is class 2 waterproof ip67 2 years warranty, CE ETL, ROHS approval led driver

 Specifications of constant voltage led power supply


1. Input voltage.:100~265vAC

2. Efficiency>82%

3. Warranty: 2 years

4. CE,ETL,ROHS approval

5. product size: 217*29*21mm

6. Net weight: 91g/pcs

7. Case material:aluminum.

8. Waterproof rate:  IP67


 SPECIFICAION


MODEL SMT-012-036WW SMT-024-036VW SMT-036-036VW
OUTPUT DC VOLTAGE 12V 24V 36V
RATED CURRENT 3.0Amp 1.5Amp 1.0Amp
CURRENT RANGE 0~3.0A 0~1.5A 0~1.0A
RATED POWER 36W 36W 36W
RIPPLE&NOISE(max) 150mV 150mV 150mV
CURRENT TOLERANCE ±0.5V ±0.5V ±0.5V
SETUP RISE TIME 80ms/110,220VAC 81ms/110,220VAC 82ms/110,220VAC
HOLD UP TIME(Typ.) 60ms/110-220VAC 60ms/110-220VAC 60ms/110-220VAC
INPUT VOLTAGE RANGE 100~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >84% >84% >83%
AC CURRENT(Typ.) 3.5A/110,220VAC 2.0A/110,220VAC 1.5A/110,220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110~220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload [email protected]% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS ETL/ROHS/CE Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25 of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label constant voltage class 2 led power supply

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Features of class 2 led power supply


  1. High efficiency,save energy ,protected environment
  2. High stability and low ripple, increase light efficiency and decrease light attenuation
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage
  5. Passed high ,low temperature and waterproof testing.
  6. Integrity protection,over loading, over voltage ,over current
  7. 8Hrs and 100% full load burn-in test.



 Product parameters


 Model

Input voltage(AC V)

Working Frequency
(Hz)

Output voltage
(DC V)

Output Current

Output power(DC W)

Working Temp.

Protection grade

SMT-012-036VW

100-265V

47~63HZ

12±0.5V

3A

36W

-25~50°C

IP20/IP67

SMT-024-036VW

100-265V

47~63HZ

24±0.5V

1.5A

36W

-25~50°C

IP20/IP67

SMT-036-036VW

100-265V

47~63HZ

36±0.3V

1A

36W

-25~50°C

IP20/IP67

SMT-048-036VW

100-265V

47~63HZ

48±0.3V

0.75A

36W

-25~50°C

IP20/IP67




 Why choose us?


1. We are CE ETL audited LED drivers/power supplies enterprise in China.

2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe!

3. Price is negotiable if you have large quantity demand.

4. 100% QC inspection Before Shipping.

5. Best Quality & Best Service with Competitive price.

6. Shipping will be the most economical for you and freight cost is informed in   advance for your consideration.decision for the shipping terms will be made according to your requirements.

7. We have our engineer team, if you have any question about your LED applications, let  us know freely, we will give you the best solution.

8. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.

9. OEM design & OEM packing welcome.

10. Samples will be ready within 7 working day.
