Non-dimmable LED Driver

0-10v dimmable UL 277v 110v 12vdc 60 watt power supply with 7 years warranty

This is a 12 volt dc led power supply certified to UL and cUL standards, safely used in North American.  Input voltage 110v and 277v.  Most of dimmers can be well compatible, LUTRON dimmer is one of them.
  • item no.:

    SMT-012-060VDHV2
  • brand:

    SMARTS
  • Input Voltage:

    100-277Vac
  • Output Voltage:

    12/24Vdc
  • Output Current:

    5A
  • Working Mode:

    0-10V dimmable
  • Certification:

    UL/CE/Rohs
  • Warranty:

    7 years
inquiry now
product details

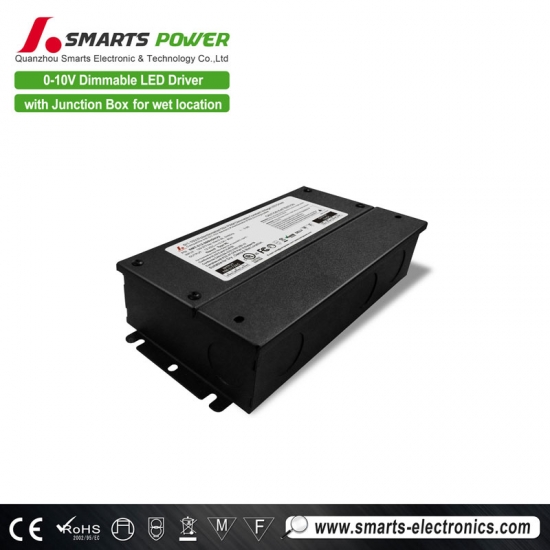

 0-10v dimmable UL 277v 110v 12vdc 60 watt power supply with 7 years warranty

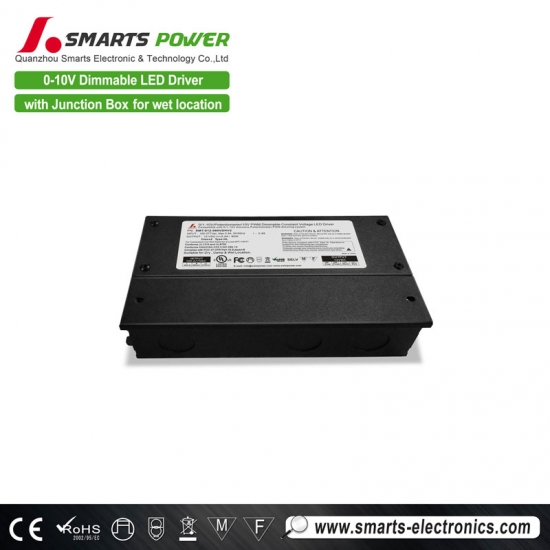

12v 60 watt power supply with junction box has two versions. 1.0 version is more suitalble for indoors using. 2.0 version is wider in wiring slot which have larger space for wiring. 120-277VAC dimmer  Eaton shows compatibity with it.


  Specification


model

SMT-012-060VDH(1.0 version)

SMT-012-060VDHV2 (2.0 version)

SMT-024-060VDH  (1.0 version)

SMT-024-060VDHV2 (2.0 version)

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

5.00A

2.50A

Load Regulation

±1%

Rated power

60W

60W

Input

Voltage Range

100-277V AC

Frequency Range

47~63HZ

THD(Typ.)@ full load

<20%

Power Factor ( Typ.)

[email protected]  [email protected]

[email protected]  [email protected]

Full Load Efficiency(Typ.)

>83%

>86%

AC Current(Typ.)

0.9A/110VAC

Inrush Current(Typ.)

14A, 50%, 780us

Leakage current

<0.50mA

Protection

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.

Short Circuit

shut down o/p voltage, re-power on to recover afterfault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for60min.each along X,Y,Z axes

Safety& EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

About 1.1Kg

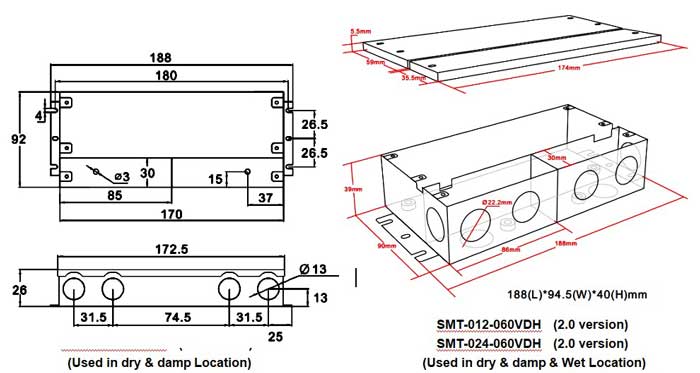

Size

1.0 version: 188*92*26mm(L*W*H) / 2.0 version: 188*94.5*40mm(L*W*H)

packing

305*200*180mm  /  10PCS/CTN (L*W*H)

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

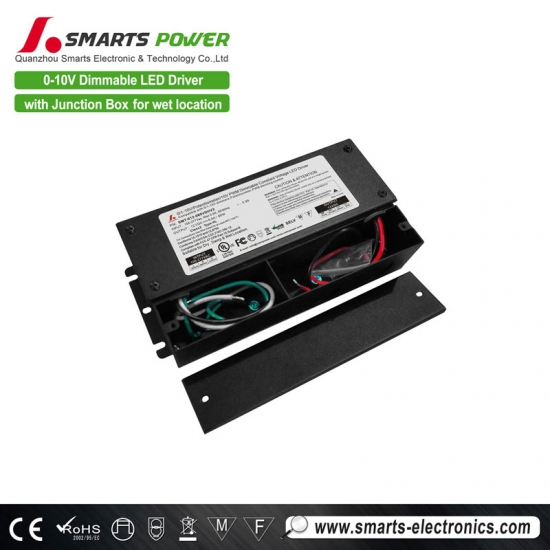

  Mechanical Specification


12v 60 watt power supply



Ø Input wire Black and White to be connected to AC L and N ,Green wire go ground,

Ø Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).

Ø Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.



  Dimming Operation


Ø Built-in 4 in 1 dimming function, IP20/ IP67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-

Ø Reference resistance value for output current adjustment (Typical)



Resistance value

Signal driver

10KΩ

20KΩ

30KΩ

40KΩ

50KΩ

60KΩ

70KΩ

80KΩ

90KΩ

100KΩ

OPEN

Multiple drivers

0Ω/N

10KΩ/N

20KΩ/N

30KΩ/N

40KΩ/N

50KΩ/N

60KΩ/N

70KΩ/N

80KΩ/N

90KΩ/N

100KΩ/N

——

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

Ø 1-10/0-10V dimmable function for output current adjustment(Typical)

Dimming value

0V

1V

2V

3V

4V

5V

6V

7V

8V

9V

10V

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

Ø 10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ

Duty value

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%

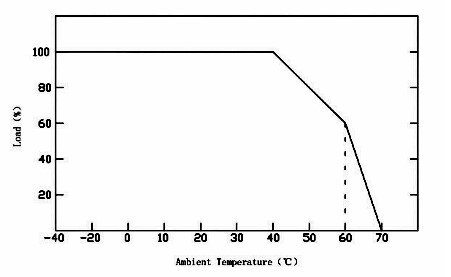

  ■ Derating Curve


  12v 60 watt power supply

Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.



  ■ Connecting solution:

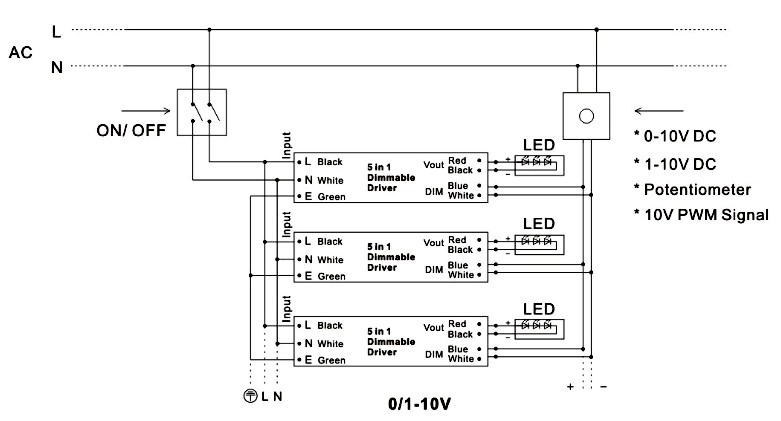

Diagram 1 as below:

12v 60 watt power supply



Diagram 2 as below:

12v 60 watt power supply



  ■ Instruction:


Ø This driver should be installed by qualified and professional person;

Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;

Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: [email protected]  Or take a phonecall: 0086-18016688251

 Our official website: www.smarts-electronics.com  &  www.swinpower.com


  Compatible light Type


The UL led driver 60 dimmable12v meet Class 2 standard and win a large population in North American. If you are looking for suitable led lights to match, LED Lighting Wholesale 0-10v  led strips light.


UL led driver 60 dimmable


  Related Products


 60w led power supply


This 60w led power supply 12v and 24v are provided for 110vac or 220vac.

Can be installed with junction box. 5 years warranty and ETL/CE/ROHS/FCC certificate.

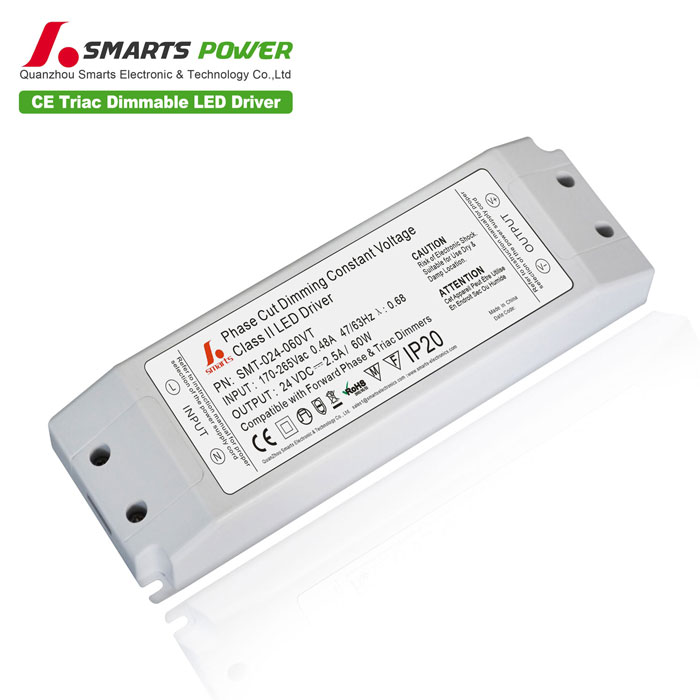

Mode:SMT-024-060VT
intput voltage:100~130/170-265VAC

Output: 24v 60w 2.5a
Size : 180*60*34mm
