110vAC to DC power supply triac dimmable led driver 24w dc 12V 24V LED transformer with 5 years warranty


high power led driver,24v dimmable led driver
high power led driver,24v dimmable led driver high power led driver,24v dimmable led driver high power led driver,24v dimmable led driver high power led driver,24v dimmable led driver

110vAC to DC power supply triac dimmable led driver 24w dc 12V 24V LED transformer with 5 years warranty

This 24W triac dimming driver series products has two constant voltage products. They are SMT-012-024VT which output voltage is DC12V and SMT-024-024VT which output voltage is DC24V.

  • item no.:

    SMT-024-024VT

  • product orgin:

    China

  • brand:

    SMARTS

  • Input Voltage:

    100-130V/ 170-265V

  • Output Voltage:

    24

  • Output Current:

    1A

  • Working Mode:

    constant voltage

  • Certification:

    ETL CE ROHS

  • Warranty:

    5 years
inquiry now
product details
110vAC to DC power supply triac dimmable led driver 24w dc 12V 24V LED transformer with 5 years warranty


 triac dimmable led driver 24w dc 12V 24V LED transformer have short circuit/overload temperature protection.Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.


  Feture

  1. Case material: plastic case
  2. Cooling by free air convection
  3. 100% full load burn-in test
  4.  High reliability
  5. Universal AC input (90~135VAC, 170~ 265VAC)
  6. designing standard: Ul1310 Class 2 power unit
  7. Cooling by nature
  8. Suitable for dry location
  9. Follow the global lighting safety regulations

  Product Specification



Model SMT-024-024VT
Output DC Voltage 24V
Rated Current 1A
Rated Power 24w
Input Voltage Range 100-130V AC/170-265V AC
Frequency Range 47-63Hz
PF >0.95
Efficiency >85%
Environment Working Temp. -40~+60℃
Storage Temp.,Humidity -40~+80℃
Temp. coefficient ±0.03%/℃(0~50℃)

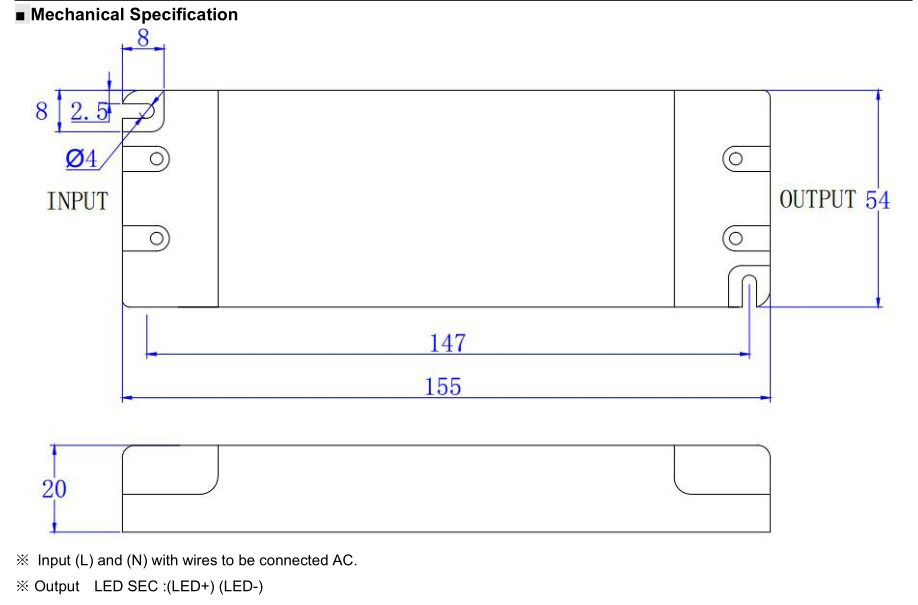

Others Size 155*54*20mm
IP code IP20
Packing 350*195*180mm,30pcs/ctns
Warranty 5 years
Certificate CE/ROHS/ETL/FCC
Delivery 7 working days for sample order,12 working days for 500pcs
Payment terms

T/T,   Western Union,  Paypal, Trade Assurance
