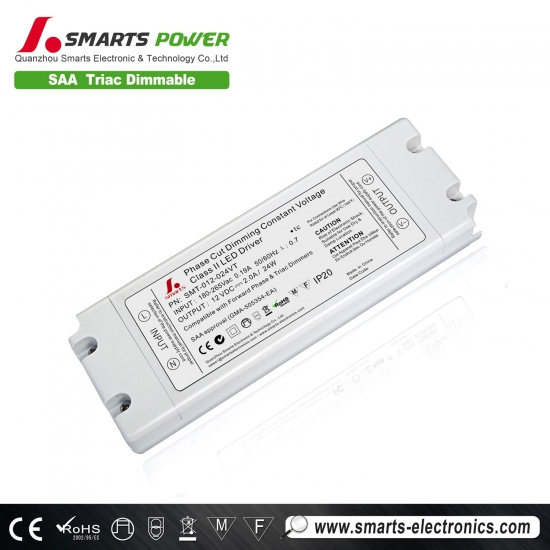

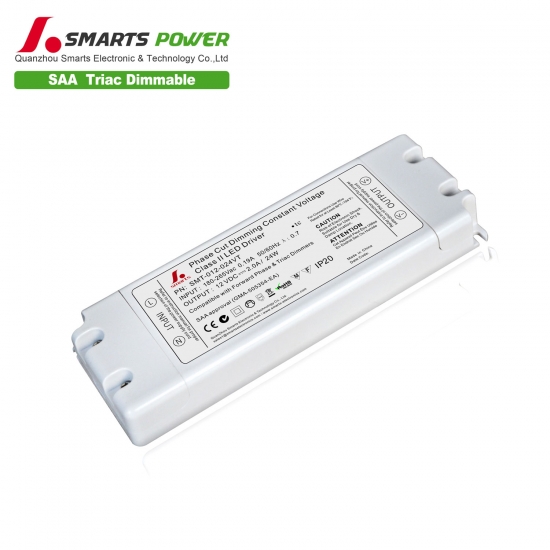

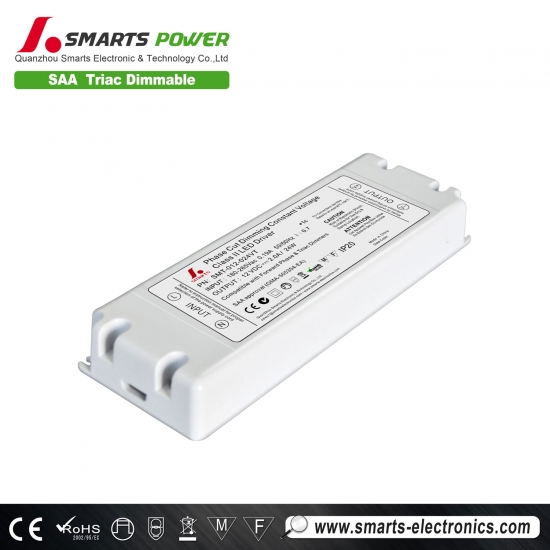

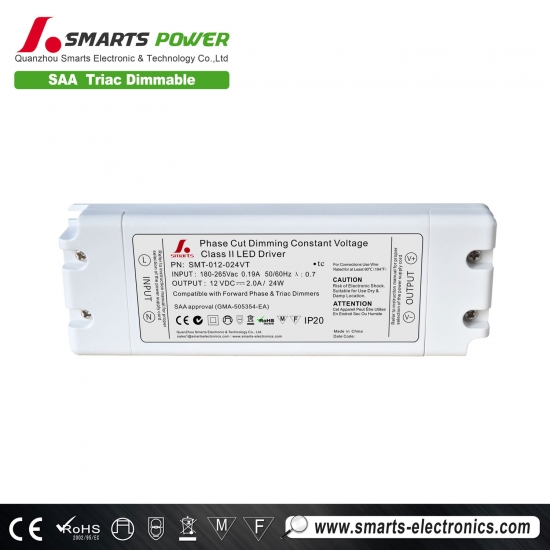

High Efficiency power supply 12v 24w triac dimmable led driver for led transformer
|
12v 24w triac dimmable constant voltage led driver are application indoor & outdoor LED illuminating lights LED Neon,LED urban Decoration,LED Lighting Advertising,LED Display etc. Safety Protection Apparatus, Telecommunications, Networks,Vehicle Lights,Controller Panels, etc.,.This series of dimmable led driver are ETL CE ROHS approval,we give 5 years warranty |
Product Specification
T/T, Western Union, Paypal, Trade Assurance
Model
SMT-012-024VT
Output
DC Voltage
12V
Rated Current
2A
Rated Power
24w
Input
Voltage Range
100-130V AC/170-265V AC
Frequency Range
47-63Hz
PF
>0.95
Efficiency
>85%
Environment
Working Temp.
-40~+60℃
Storage Temp.,Humidity
-40~+80℃
Temp. coefficient
±0.03%/℃(0~50℃)
Others
Size
155*54*20mm
IP code
IP20
Packing
350*195*180mm,30pcs/ctns
Warranty
5 years
Certificate
CE/ROHS/ETL/FCC
Delivery
7 working days for sample order,12 working days for 500pcs
Payment terms
Problem analysis

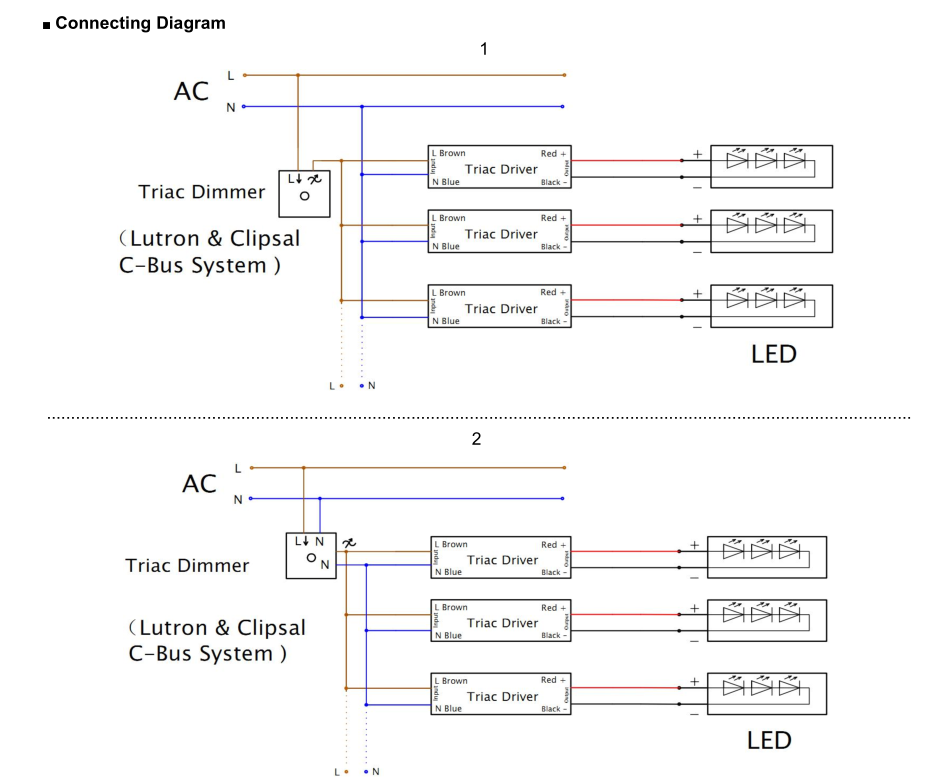

1.Question: In the diagram spec sheet it show the dimmer on the N (neutral)? Normally Triac the dimmer is on the L Line?
Answer: Dimmer can be connected on the N (neutral) or on the L (Line). Depending on you.
2. Question:Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?
Answer: Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
